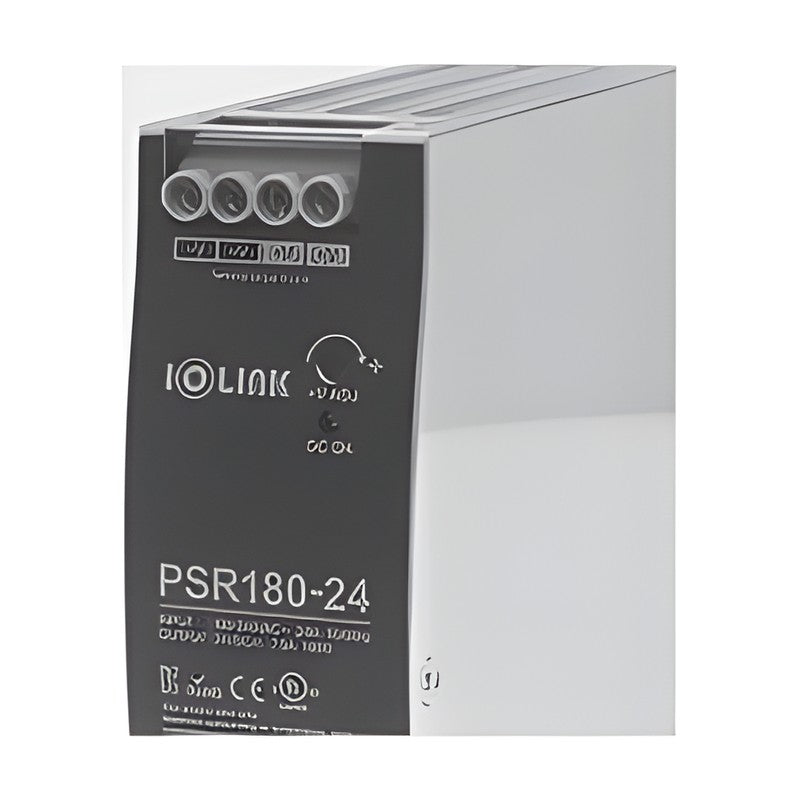

Samwon ACT PSR180 DIN-Rail Switching Power Supply, 180 W

Samwon ACT PSR180 DIN-Rail Switching Power Supply, 180 W

DIN-rail mounted switching mode power supply (SMPS) of the PSR series with 180 W rated output.

Key features

  • Compact DIN-rail switching power supply for space-saving installation
  • Overload, short-circuit and over-voltage protection
  • High efficiency with low heat generation
  • Low noise and ripple for stable power to electrical equipment
  • Adjustable output voltage and green DC OK LED

Specifications

Indicator Green LED
Withstand Voltage I/P-O/P 3 kV AC, I/P-FG 1.5 kV AC, O/P-FG 0.5 kV AC
Insulation Resistance 100 Mohm / 500 V DC
Mounting DIN rail TS35
Protection Class IP20
Frequency 47-63 Hz
Storage Temperature -40 to +85 C
Over-Voltage Protection Shut down O/P voltage, re-power on to recover
Input Voltage 96-264 V AC / 134-370 V DC
AC Current 3 A / 115 V AC, 2 A / 230 V AC
Inrush Current 20 A / 115 V AC, 35 A / 230 V AC
Overload Protection 105-130% of rated power, constant current limiting, auto recovery
Samwon ACT PSR180 DIN-Rail Switching Power Supply, 180 W - reference 2
PSR180-24 Output: 24 V DC 7.5 A | Rated Power: 180 W | Efficiency: 83% | Adjustment Range: 24-28 V | Ripple & Noise: 200 mVp-p max. | Over-Voltage Protection: 29-33 V | Approvals: cULus, CE, KC
PSR180-48 Output: 48 V DC 3.75 A | Rated Power: 180 W | Efficiency: 85% | Adjustment Range: 48-56 V | Ripple & Noise: 200 mVp-p max. | Over-Voltage Protection: 57.6-66 V | Approvals: cULus, CE, KC
