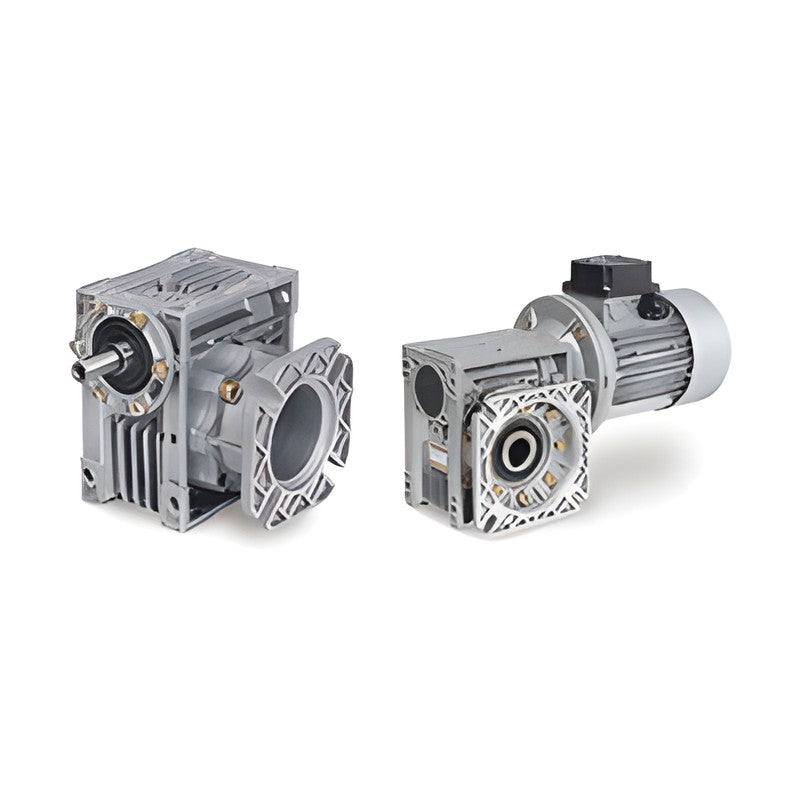

Samyang MTW Mighty Worm Hollow-Shaft Worm Reducers (Size 25-155)

Samyang MTW Mighty Worm Hollow-Shaft Worm Reducers (Size 25-155)

Samyang MTW Mighty Worm hollow-shaft worm reducers for small and medium drives, sizes 25 to 155, ratios 1/10 to 1/60. Available with shaft input, IEC motor flange input (MTWM), output flange (-F) or torque arm (-T).

Key features

  • Hollow output shaft for direct mounting on driven shafts
  • Universal mounting faces for installation in any orientation
  • Output flange (-F) and torque arm (-T) versions
  • MTWM motor-mount version with IEC motor flange input
  • Maintenance-free, high-efficiency long-life design

Specifications

Product Hollow-shaft worm gear reducer
Sizes 25, 30, 40, 50, 63, 75, 100, 120, 135, 155
Ratios 1/10, 1/15, 1/20, 1/25, 1/30, 1/40, 1/50, 1/60 (by size)
Input Solid shaft or IEC motor flange (MTWM)
Options Double input shaft, solid output shaft
Housing Aluminium die-cast (smaller sizes)
Ordering code MT-type-ratio-options-motor flange-HP-poles
Source Samyang MTW (Mighty Worm) series catalogue
MTW25 Size: 25 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW25-F Size: 25 | Version: With output flange | Ratio: 1/10-1/60
MTW25-T Size: 25 | Version: With torque arm | Ratio: 1/10-1/60
MTWM25 Size: 25 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW30 Size: 30 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW30-F Size: 30 | Version: With output flange | Ratio: 1/10-1/60
MTW30-T Size: 30 | Version: With torque arm | Ratio: 1/10-1/60
MTWM30 Size: 30 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW40 Size: 40 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW40-F Size: 40 | Version: With output flange | Ratio: 1/10-1/60
MTW40-T Size: 40 | Version: With torque arm | Ratio: 1/10-1/60
MTWM40 Size: 40 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW50 Size: 50 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW50-F Size: 50 | Version: With output flange | Ratio: 1/10-1/60
MTW50-T Size: 50 | Version: With torque arm | Ratio: 1/10-1/60
MTWM50 Size: 50 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW63 Size: 63 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW63-F Size: 63 | Version: With output flange | Ratio: 1/10-1/60
MTW63-T Size: 63 | Version: With torque arm | Ratio: 1/10-1/60
MTWM63 Size: 63 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW75 Size: 75 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW75-F Size: 75 | Version: With output flange | Ratio: 1/10-1/60
MTW75-T Size: 75 | Version: With torque arm | Ratio: 1/10-1/60
MTWM75 Size: 75 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW100 Size: 100 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW100-F Size: 100 | Version: With output flange | Ratio: 1/10-1/60
MTW100-T Size: 100 | Version: With torque arm | Ratio: 1/10-1/60
MTWM100 Size: 100 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW120 Size: 120 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW120-F Size: 120 | Version: With output flange | Ratio: 1/10-1/60
MTW120-T Size: 120 | Version: With torque arm | Ratio: 1/10-1/60
MTWM120 Size: 120 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW135 Size: 135 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW135-F Size: 135 | Version: With output flange | Ratio: 1/10-1/60
MTW135-T Size: 135 | Version: With torque arm | Ratio: 1/10-1/60
MTWM135 Size: 135 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
MTW155 Size: 155 | Version: Hollow output, shaft input | Ratio: 1/10-1/60
MTW155-F Size: 155 | Version: With output flange | Ratio: 1/10-1/60
MTW155-T Size: 155 | Version: With torque arm | Ratio: 1/10-1/60
MTWM155 Size: 155 | Version: Motor-mount IEC input | Ratio: 1/10-1/60
Worm Gear ReducersSamyang
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang MTW Mighty Worm Hollow-Shaft Worm Reducers (Size 25-155)

Brand Samyang·Worm Gear Reducers

Available part numbers (40)

MTW25, MTW25-F, MTW25-T, MTWM25, MTW30, MTW30-F, MTW30-T, MTWM30, MTW40, MTW40-F + 30 more — see full table ↓
