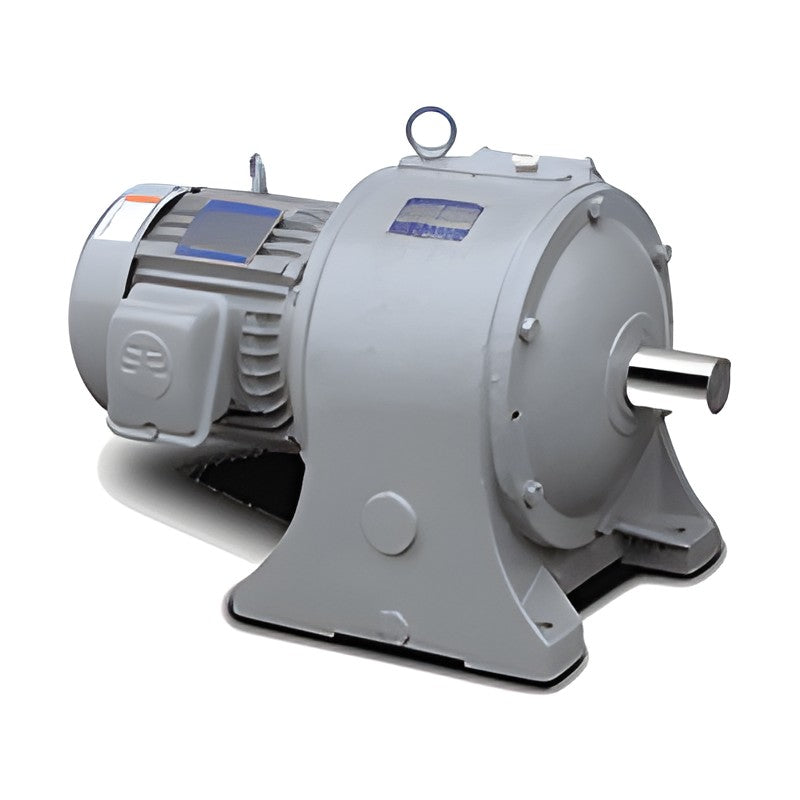

Samyang SUPER MAX Helical Geared Motors (1.5-75 kW)

Samyang SUPER MAX Helical Geared Motors (1.5-75 kW)

Samyang SUPER MAX heavy-duty helical geared motors in horizontal (SG), vertical (SV) and Line Power (SL) styles with 2-stage (1/10-1/30) and 3-stage (1/40-1/60) reduction. Covers 4-pole motors from 1.5 to 75 kW.

Key features

  • Carburised SCM21/SNCM21 alloy gears with ground high-speed pinions
  • Around 30% lower vibration and over 10 dB lower noise than conventional reducers
  • Self-aligning roller and taper roller bearings with adjusting plate
  • Oil-bath lubrication; horizontal, vertical and Line Power arrangements
  • Dedicated high-efficiency class F motors; SBB brake motor option

Specifications

Product Helical geared motor / reducer
Reduction 2-stage 1/4-1/30; 3-stage 1/40-1/150
Motor output 0.75-75 kW (4P/6P)
Supply 3-phase 220/380 V, 440 V, 60 Hz
Enclosure Totally enclosed fan-cooled IP44
Rating Continuous
Lubrication Oil bath
Shaft key KS B 1311
Ambient -30 to 40 C, altitude up to 1000 m, indoor
Source Samyang SUPER MAX Geared Motor catalogue
SG2165 Type: Horizontal, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SG2200 Type: Horizontal, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SG2225 Type: Horizontal, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SG2255 Type: Horizontal, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SG2300 Type: Horizontal, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SG2350 Type: Horizontal, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SG2520 Type: Horizontal, 2-stage | Motor (4P): 55-75 kW | Ratio: 1/10-1/20
SG3165 Type: Horizontal, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SG3200 Type: Horizontal, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SG3225 Type: Horizontal, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SG3255 Type: Horizontal, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SG3300 Type: Horizontal, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SG3350 Type: Horizontal, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
SG3420 Type: Horizontal, 3-stage | Motor (4P): 30-37 kW | Ratio: 1/25-1/60
SG3520 Type: Horizontal, 3-stage | Motor (4P): 55-75 kW | Ratio: 1/30-1/60
SL2165 Type: Line Power, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SL2200 Type: Line Power, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SL2225 Type: Line Power, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SL2255 Type: Line Power, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SL2300 Type: Line Power, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SL2350 Type: Line Power, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SL3165 Type: Line Power, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SL3200 Type: Line Power, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SL3225 Type: Line Power, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SL3255 Type: Line Power, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SL3300 Type: Line Power, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SL3350 Type: Line Power, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
SL3420 Type: Line Power, 3-stage | Motor (4P): 30-37 kW | Ratio: 1/40-1/60
SV2165 Type: Vertical, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SV2200 Type: Vertical, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SV2225 Type: Vertical, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SV2255 Type: Vertical, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SV2300 Type: Vertical, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SV2350 Type: Vertical, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SV3165 Type: Vertical, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SV3200 Type: Vertical, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SV3225 Type: Vertical, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SV3255 Type: Vertical, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SV3300 Type: Vertical, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SV3350 Type: Vertical, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
AC Geared MotorsSamyang
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang SUPER MAX Helical Geared Motors (1.5-75 kW)

Brand Samyang·AC Geared Motors

Available part numbers (40)

SG2165, SG2200, SG2225, SG2255, SG2300, SG2350, SG2520, SG3165, SG3200, SG3225 + 30 more — see full table ↓

How to order

Send the Samyang part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG2165Type: Horizontal, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SG2200Type: Horizontal, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SG2225Type: Horizontal, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SG2255Type: Horizontal, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SG2300Type: Horizontal, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SG2350Type: Horizontal, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SG2520Type: Horizontal, 2-stage | Motor (4P): 55-75 kW | Ratio: 1/10-1/20
SG3165Type: Horizontal, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SG3200Type: Horizontal, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SG3225Type: Horizontal, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SG3255Type: Horizontal, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SG3300Type: Horizontal, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SG3350Type: Horizontal, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
SG3420Type: Horizontal, 3-stage | Motor (4P): 30-37 kW | Ratio: 1/25-1/60
SG3520Type: Horizontal, 3-stage | Motor (4P): 55-75 kW | Ratio: 1/30-1/60
SL2165Type: Line Power, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SL2200Type: Line Power, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SL2225Type: Line Power, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SL2255Type: Line Power, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SL2300Type: Line Power, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SL2350Type: Line Power, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SL3165Type: Line Power, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SL3200Type: Line Power, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SL3225Type: Line Power, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SL3255Type: Line Power, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SL3300Type: Line Power, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SL3350Type: Line Power, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
SL3420Type: Line Power, 3-stage | Motor (4P): 30-37 kW | Ratio: 1/40-1/60
SV2165Type: Vertical, 2-stage | Motor (4P): 1.5-2.2 kW | Ratio: 1/10-1/30
SV2200Type: Vertical, 2-stage | Motor (4P): 2.2-3.7 kW | Ratio: 1/10-1/30
SV2225Type: Vertical, 2-stage | Motor (4P): 3.7-5.5 kW | Ratio: 1/10-1/30
SV2255Type: Vertical, 2-stage | Motor (4P): 5.5-11 kW | Ratio: 1/10-1/30
SV2300Type: Vertical, 2-stage | Motor (4P): 11-22 kW | Ratio: 1/10-1/30
SV2350Type: Vertical, 2-stage | Motor (4P): 22-30 kW | Ratio: 1/10-1/30
SV3165Type: Vertical, 3-stage | Motor (4P): 1.5 kW | Ratio: 1/40-1/60
SV3200Type: Vertical, 3-stage | Motor (4P): 2.2 kW | Ratio: 1/40-1/60
SV3225Type: Vertical, 3-stage | Motor (4P): 3.7 kW | Ratio: 1/40-1/60
SV3255Type: Vertical, 3-stage | Motor (4P): 5.5-7.5 kW | Ratio: 1/40-1/60
SV3300Type: Vertical, 3-stage | Motor (4P): 11-15 kW | Ratio: 1/40-1/60
SV3350Type: Vertical, 3-stage | Motor (4P): 22 kW | Ratio: 1/40-1/60
