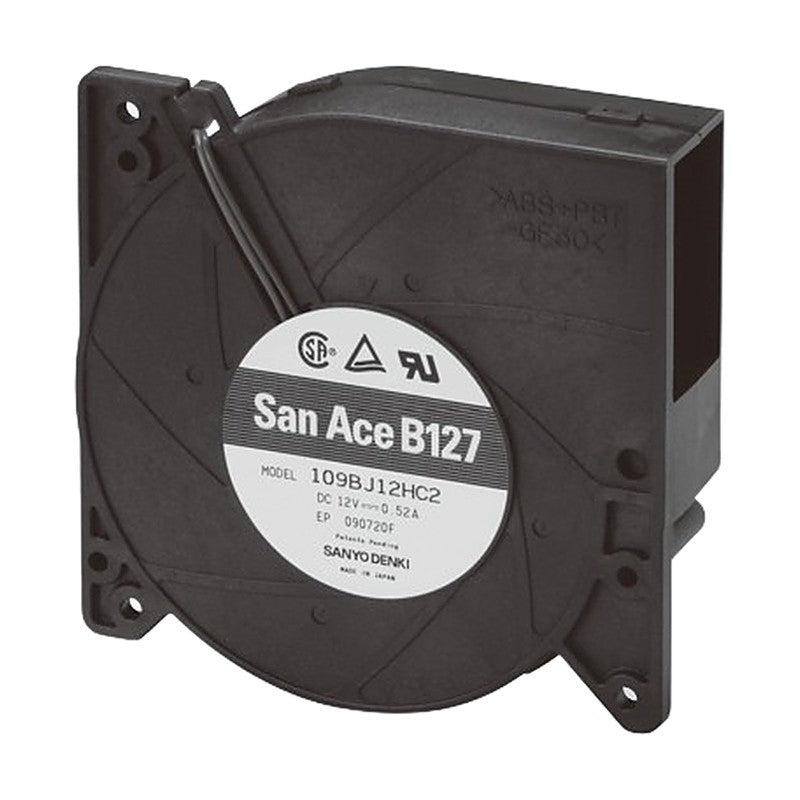

Sanyo Denki San Ace B127 DC Blower 127x32 mm

Sanyo Denki San Ace B127 DC Blower 127x32 mm

The San Ace B127 is a DC blower designed for high static pressure cooling in a 127x32 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 1,900 to 2,400 min-1 with maximum air flow up to 0.78 m3/min and maximum static pressure up to 205.8 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 127x32 mm
Expected life 40,000 h
Mass 290 g
109BJ12HC2 Size: 127x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.52 A | Rated input: 6.24 W | Speed: 2,400 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 205.8 Pa (0.826 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 290 g
109BJ12MC2 Size: 127x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.29 A | Rated input: 3.48 W | Speed: 1,900 min-1 | Max air flow: 0.61 m3/min (21.5 CFM) | Max static pressure: 109.8 Pa (0.441 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 290 g
109BJ24HC2 Size: 127x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.26 A | Rated input: 6.24 W | Speed: 2,400 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 205.8 Pa (0.826 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 290 g
109BJ24MC2 Size: 127x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.15 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 0.61 m3/min (21.5 CFM) | Max static pressure: 109.8 Pa (0.441 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 290 g
DC BlowersSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B127 DC Blower 127x32 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (4)

109BJ12HC2, 109BJ12MC2, 109BJ24HC2, 109BJ24MC2

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109BJ12HC2Size: 127x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.52 A | Rated input: 6.24 W | Speed: 2,400 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 205.8 Pa (0.826 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 290 g
109BJ12MC2Size: 127x32 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.29 A | Rated input: 3.48 W | Speed: 1,900 min-1 | Max air flow: 0.61 m3/min (21.5 CFM) | Max static pressure: 109.8 Pa (0.441 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 290 g
109BJ24HC2Size: 127x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.26 A | Rated input: 6.24 W | Speed: 2,400 min-1 | Max air flow: 0.78 m3/min (27.5 CFM) | Max static pressure: 205.8 Pa (0.826 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 290 g
109BJ24MC2Size: 127x32 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.15 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 0.61 m3/min (21.5 CFM) | Max static pressure: 109.8 Pa (0.441 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 290 g
