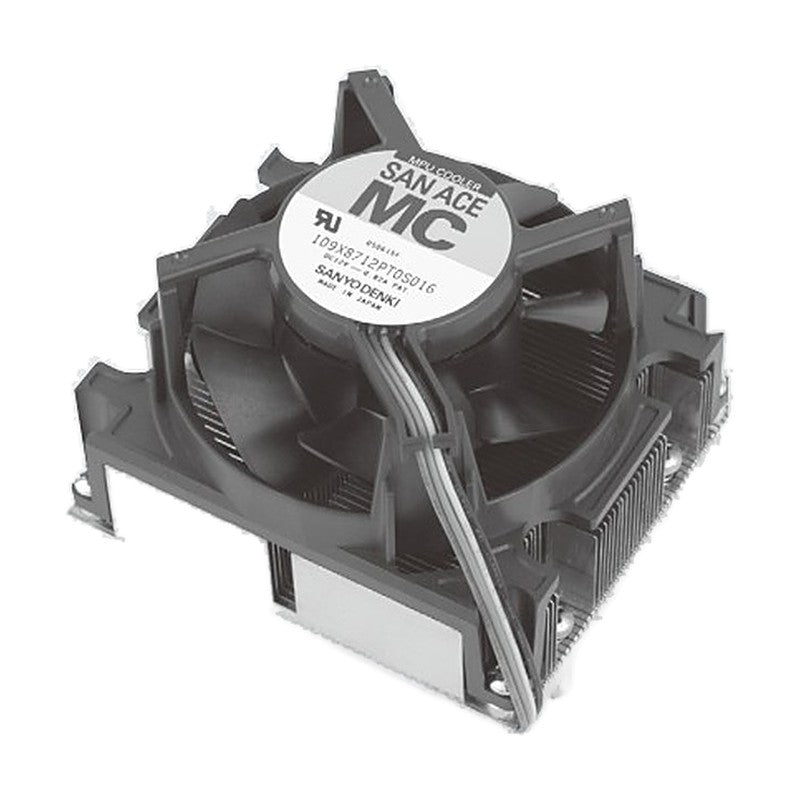

Sanyo Denki San Ace MC CPU Cooler

Sanyo Denki San Ace MC CPU Cooler

The San Ace MC is a line of CPU coolers that combine a heat sink with a DC cooling fan for processor cooling.

Key features

  • The catalog lists rated voltage 12 V DC models with an operating voltage range of 10.8 to 13.2 V
  • Speed, case-to-ambient thermal resistance and sound pressure level are given for two operating speeds
  • Operating temperature is 0 to +70 °C with an expected life of 40,000 h

Specifications

Rated voltage 12 V
Operating voltage range 10.8 to 13.2 V
Operating temperature 0 to +70 °C
Expected life 40,000 h
109X8712PT0S016 Size: 78.7x88.9 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.82 A | Speed: 6,300 / 3,500 min-1 | Thermal resistance: 0.229 / 0.305 K/W | Noise: 55 / 39 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
109X9112PT0H016 Size: dia. 90 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.31 A | Speed: 3,900 / 2,300 min-1 | Thermal resistance: 0.266 / 0.320 K/W | Noise: 42 / 27 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
109X9212PT0H016 Size: dia. 90 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.28 A | Speed: 3,650 / 2,200 min-1 | Thermal resistance: 0.276 / 0.340 K/W | Noise: 42 / 28 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
CPU CoolersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace MC CPU Cooler

Brand Sanyo Denki·CPU Coolers

Available part numbers (3)

109X8712PT0S016, 109X9112PT0H016, 109X9212PT0H016

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109X8712PT0S016Size: 78.7x88.9 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.82 A | Speed: 6,300 / 3,500 min-1 | Thermal resistance: 0.229 / 0.305 K/W | Noise: 55 / 39 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
109X9112PT0H016Size: dia. 90 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.31 A | Speed: 3,900 / 2,300 min-1 | Thermal resistance: 0.266 / 0.320 K/W | Noise: 42 / 27 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
109X9212PT0H016Size: dia. 90 mm | Size: None | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.28 A | Speed: 3,650 / 2,200 min-1 | Thermal resistance: 0.276 / 0.340 K/W | Noise: 42 / 28 dB(A) | Operating temperature: 0 to +70 °C | Expected life: 40,000 h
