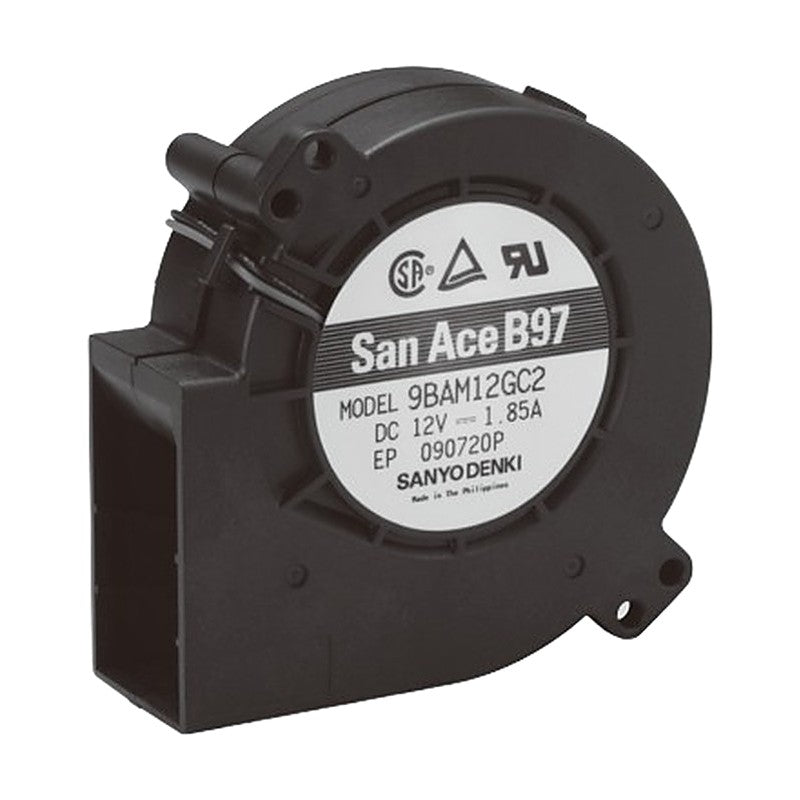

Sanyo Denki San Ace B97 DC Blower 97x33 mm

Sanyo Denki San Ace B97 DC Blower 97x33 mm

The San Ace B97 is a DC blower designed for high static pressure cooling in a 97x33 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 4,300 to 5,800 min-1 with maximum air flow up to 1.37 m3/min and maximum static pressure up to 760 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 97x33 mm
Operating temperature -10 to +60 °C
Expected life 40,000 h
Mass 170 g
9BAM12GC2 Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.85 A | Rated input: 22.2 W | Speed: 5,800 min-1 | Max air flow: 1.37 m3/min (48.4 CFM) | Max static pressure: 760 Pa (3.052 inchH2O) | Noise: 62 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12SC2 Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.45 A | Rated input: 17.4 W | Speed: 5,300 min-1 | Max air flow: 1.25 m3/min (44.2 CFM) | Max static pressure: 610 Pa (2.450 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12HC2 Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.20 A | Rated input: 14.4 W | Speed: 4,700 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 490 Pa (1.968 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12FC2 Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 0.98 A | Rated input: 11.8 W | Speed: 4,300 min-1 | Max air flow: 1.00 m3/min (35.3 CFM) | Max static pressure: 410 Pa (1.647 inchH2O) | Noise: 56 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24GC2 Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 12.0 to 26.4 V | Rated current: 0.90 A | Rated input: 21.6 W | Speed: 5,800 min-1 | Max air flow: 1.37 m3/min (48.4 CFM) | Max static pressure: 760 Pa (3.052 inchH2O) | Noise: 62 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24SC2 Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 12.0 to 26.4 V | Rated current: 0.71 A | Rated input: 17.0 W | Speed: 5,300 min-1 | Max air flow: 1.25 m3/min (44.2 CFM) | Max static pressure: 610 Pa (2.450 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24HC2 Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 14.4 to 26.4 V | Rated current: 0.60 A | Rated input: 14.4 W | Speed: 4,700 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 490 Pa (1.968 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24FC2 Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 14.4 to 26.4 V | Rated current: 0.49 A | Rated input: 11.8 W | Speed: 4,300 min-1 | Max air flow: 1.00 m3/min (35.3 CFM) | Max static pressure: 410 Pa (1.647 inchH2O) | Noise: 56 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
DC BlowersSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B97 DC Blower 97x33 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (8)

9BAM12GC2, 9BAM12SC2, 9BAM12HC2, 9BAM12FC2, 9BAM24GC2, 9BAM24SC2, 9BAM24HC2, 9BAM24FC2

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9BAM12GC2Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.85 A | Rated input: 22.2 W | Speed: 5,800 min-1 | Max air flow: 1.37 m3/min (48.4 CFM) | Max static pressure: 760 Pa (3.052 inchH2O) | Noise: 62 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12SC2Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.45 A | Rated input: 17.4 W | Speed: 5,300 min-1 | Max air flow: 1.25 m3/min (44.2 CFM) | Max static pressure: 610 Pa (2.450 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12HC2Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 1.20 A | Rated input: 14.4 W | Speed: 4,700 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 490 Pa (1.968 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM12FC2Size: 97x33 mm | Rated voltage: 12 V | Operating voltage range: 8.4 to 13.2 V | Rated current: 0.98 A | Rated input: 11.8 W | Speed: 4,300 min-1 | Max air flow: 1.00 m3/min (35.3 CFM) | Max static pressure: 410 Pa (1.647 inchH2O) | Noise: 56 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24GC2Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 12.0 to 26.4 V | Rated current: 0.90 A | Rated input: 21.6 W | Speed: 5,800 min-1 | Max air flow: 1.37 m3/min (48.4 CFM) | Max static pressure: 760 Pa (3.052 inchH2O) | Noise: 62 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24SC2Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 12.0 to 26.4 V | Rated current: 0.71 A | Rated input: 17.0 W | Speed: 5,300 min-1 | Max air flow: 1.25 m3/min (44.2 CFM) | Max static pressure: 610 Pa (2.450 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24HC2Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 14.4 to 26.4 V | Rated current: 0.60 A | Rated input: 14.4 W | Speed: 4,700 min-1 | Max air flow: 1.10 m3/min (38.9 CFM) | Max static pressure: 490 Pa (1.968 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9BAM24FC2Size: 97x33 mm | Rated voltage: 24 V | Operating voltage range: 14.4 to 26.4 V | Rated current: 0.49 A | Rated input: 11.8 W | Speed: 4,300 min-1 | Max air flow: 1.00 m3/min (35.3 CFM) | Max static pressure: 410 Pa (1.647 inchH2O) | Noise: 56 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
