SBC FH DIN High-Lead Rolled Ball Screw Nuts (dia 20-63 mm)

SBC FH DIN High-Lead Rolled Ball Screw Nuts (dia 20-63 mm)

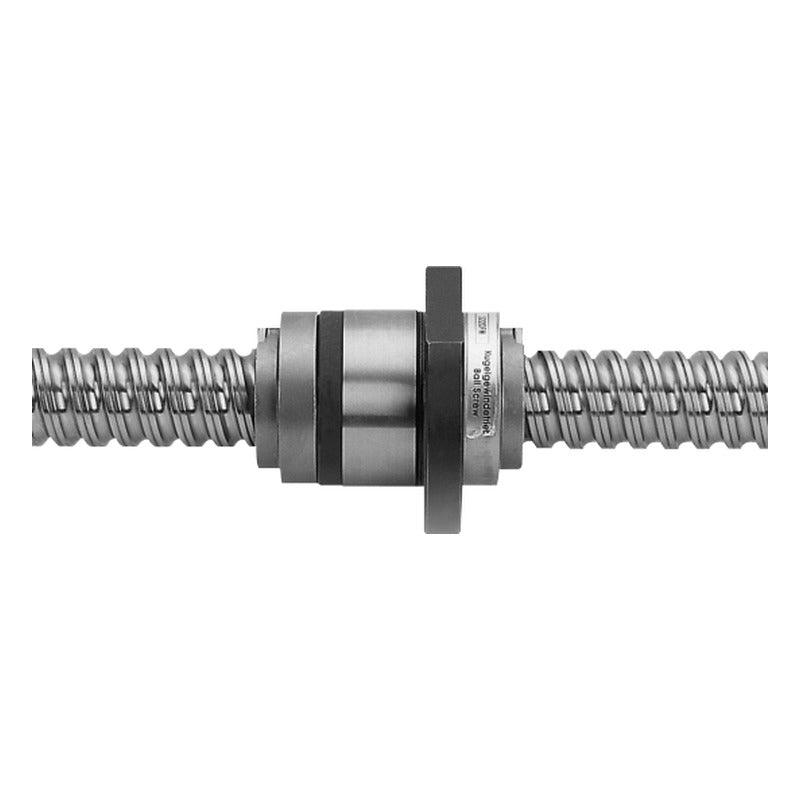

SBC FH high-lead flanged ball nuts in DIN-standard dimensions for precision rolled ball screws.

Key features

  • Built to DIN 69051 dimensions
  • Nut-only orders ship without preload; combined orders with preload A
  • Stock-supported range for fast delivery
  • Leads from 10 to 40 mm

Specifications

Nut type DIN flanged, high lead
Brand SBC
Product type Ball Screws
Series FH DIN
Designations listed 8
Units mm, kN
Source SBC Ball Screw catalogue, p. 33-34, 36
FH2020 d1: 19.6 mm | Lead: 20 mm | Nut dia: 36 mm | Nut length: 59 mm | Ca: 10.8 kN | C0a: 18.6 kN
FH2510 d1: 24.6 mm | Lead: 10 mm | Nut dia: 40 mm | Nut length: 51 mm | Ca: 24.7 kN | C0a: 53.4 kN
FH2525 d1: 24.6 mm | Lead: 25 mm | Nut dia: 40 mm | Nut length: 71 mm | Ca: 13.1 kN | C0a: 26 kN
FH3220 d1: 31.6 mm | Lead: 20 mm | Nut dia: 56 mm | Nut length: 83 mm | Ca: 47.2 kN | C0a: 83.2 kN
FH4020 d1: 39.6 mm | Lead: 20 mm | Nut dia: 63 mm | Nut length: 83 mm | Ca: 52.2 kN | C0a: 103.6 kN
FH4040 d1: 39.6 mm | Lead: 40 mm | Nut dia: 70 mm | Nut length: 104 mm | Ca: 59.7 kN | C0a: 108.9 kN
FH5020 d1: 49.5 mm | Lead: 20 mm | Nut dia: 75 mm | Nut length: 85 mm | Ca: 78.8 kN | C0a: 188.7 kN
FH6320 d1: 62.5 mm | Lead: 20 mm | Nut dia: 95 mm | Nut length: 86 mm | Ca: 103.1 kN | C0a: 270.8 kN
Ball ScrewsSBC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
