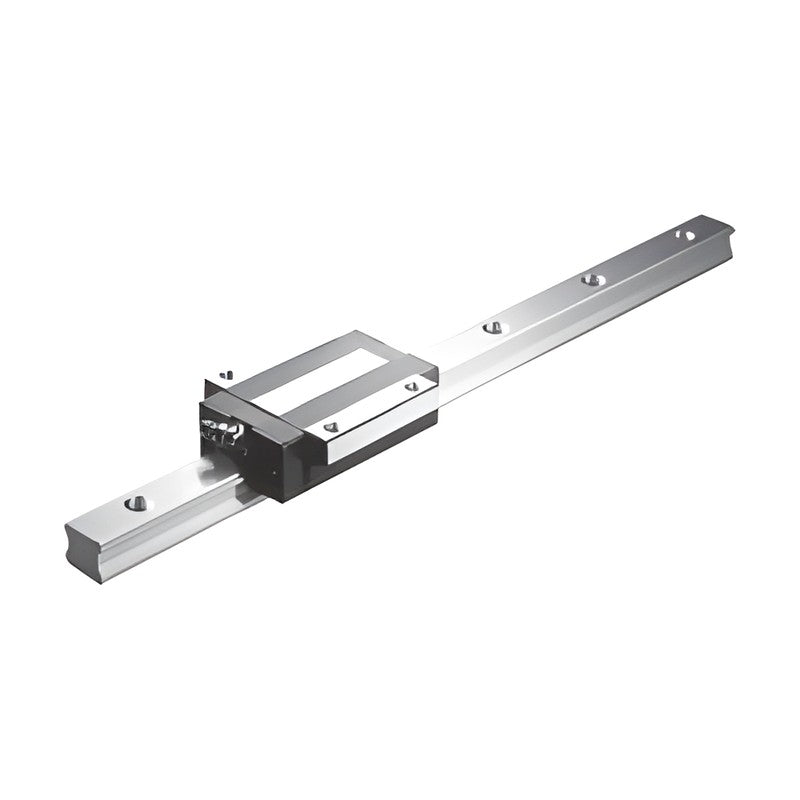

SBI high-load ball linear guide with compact low square block (CLS, CL, CLL), sizes 20 and 25.

Key features

  • Four-row circular-arc grooves with 45° contact give equal load capacity in all directions
  • Two-point circular-arc contact keeps self-aligning ability and smooth rolling
  • Optimised ball recirculation for low noise and high rigidity; higher load ratings than SBG
  • Height, width and mounting holes interchangeable with SBG series
  • Double-lip end seals; options DF high dust protection, MF self-lubricating container, scrapers, HT high-temperature end plates

Specifications

Accuracy N, H, P
Preload K0, K1, K2, K3 (K3 not for size 15)
Contact angle 45°
Grease fitting Front (standard) or side (N)
Max. rail length 3000 mm (size 15), 4000 mm (size 20-65)
SBC Linear SBI-CL High-Load Linear Guide, Compact Square Block
SBI20CLS Size: 20 | Height H: 28 mm | Width W: 42 mm | Block length L: 65.2 mm | C: 19.1 kN | Co: 27.0 kN | Block mass: 0.23 kg
SBI20CL Size: 20 | Height H: 28 mm | Width W: 44 mm | Block length L: 78.8 mm | C: 22.2 kN | Co: 38.2 kN | Block mass: 0.32 kg
SBI20CLL Size: 20 | Height H: 28 mm | Width W: 44 mm | Block length L: 96.4 mm | C: 27.9 kN | Co: 50 kN | Block mass: 0.41 kg
SBI25CL Size: 25 | Height H: 33 mm | Width W: 48 mm | Block length L: 92 mm | C: 31.5 kN | Co: 52.1 kN | Block mass: 0.49 kg
SBI25CLL Size: 25 | Height H: 33 mm | Width W: 48 mm | Block length L: 108 mm | C: 36.7 kN | Co: 64.4 kN | Block mass: 0.57 kg
