• SBC RC Rail Mounting Hole Caps (sizes 15-65)
1 1

SBC RC Rail Mounting Hole Caps (sizes 15-65)

SBC RC Rail Mounting Hole Caps (sizes 15-65)

SBC RC caps close the counterbored mounting holes of SBI and SBG linear guide rails to keep the rail top flush for the seals.

Key features

  • Shared by SBI and SBG rails
  • RC30 fits both size 30 and 35 rails
  • Flush rail surface protects block seals
  • Press-fit installation

Specifications

Brand SBC
Product type Bearing Accessories
Series RC
Designations listed 7
Units mm
Source SBC Linear Rail System catalogue, p. 30, 46

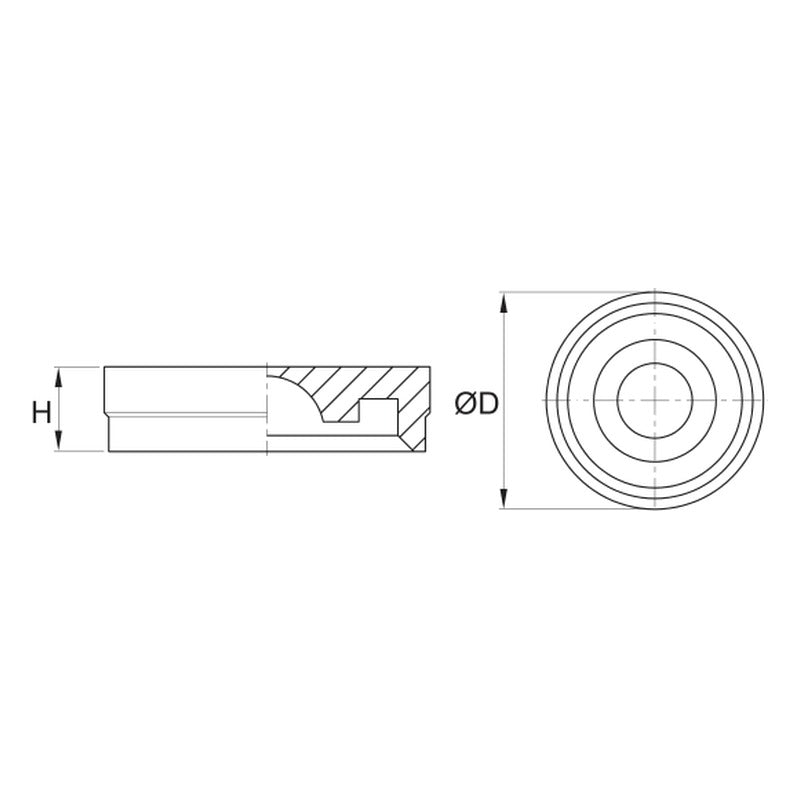

RC15 D: 7.6 mm | H: 1.3 mm
RC20 D: 9.6 mm | H: 3.5 mm
RC25 D: 11.1 mm | H: 2.8 mm
RC30 D: 14.2 mm | H: 3.7 mm
RC45 D: 20.2 mm | H: 4.7 mm
RC55 D: 23.2 mm | H: 6 mm
RC65 D: 26.2 mm | H: 6 mm
Bearing AccessoriesSBC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC RC Rail Mounting Hole Caps (sizes 15-65)

Brand SBC·Bearing Accessories

Available part numbers (7)

RC15, RC20, RC25, RC30, RC45, RC55, RC65

How to order

Send the SBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RC15D: 7.6 mm | H: 1.3 mm
RC20D: 9.6 mm | H: 3.5 mm
RC25D: 11.1 mm | H: 2.8 mm
RC30D: 14.2 mm | H: 3.7 mm
RC45D: 20.2 mm | H: 4.7 mm
RC55D: 23.2 mm | H: 6 mm
RC65D: 26.2 mm | H: 6 mm
