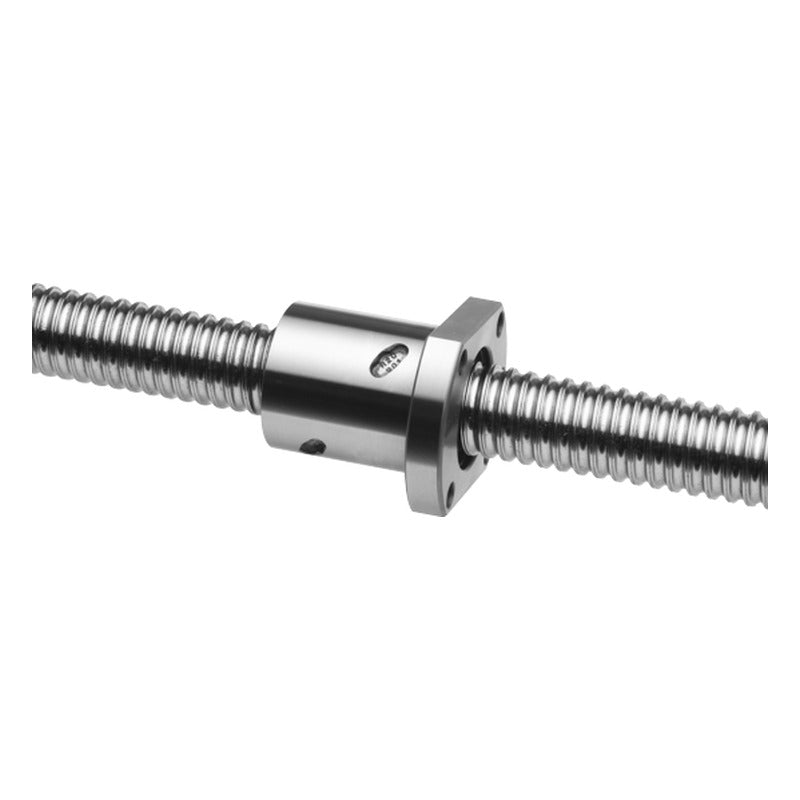

SBC RM Precision Rolled Ball Screw Shafts (dia 6-80 mm)

SBC RM precision rolled ball screw shafts, supplied cut to the ordered length for use with SBC STK, SLK, MBS and DIN-standard ball nuts. Accuracy grades follow DIN 69051.

Key features

Rolled screw shafts in nominal diameters from 6 to 80 mm
Leads from 1 to 50 mm
Accuracy grades P3, P5 and T7 depending on size and nut series
Order code format RM3220T-1500L-T7 (model, screw length, grade)
Shafts ordered alone ship in grade T7

Specifications

Material	Rolled screw shaft
Accuracy standard	DIN 69051
Ordering	Model - length (L) - grade
Brand	SBC
Product type	Ball Screws
Series	RM
Designations listed	35
Units	mm
Source	SBC Ball Screw catalogue, p. 24, 29, 33

RM0601T		Nominal dia: 6 mm \| Lead: 1 mm \| Max length: 900 mm \| Grade: T7
RM0801T		Nominal dia: 8 mm \| Lead: 1 mm \| Max length: 1200 mm \| Grade: T7
RM0802T		Nominal dia: 8 mm \| Lead: 2 mm \| Max length: 1200 mm \| Grade: T7
RM0802.5T		Nominal dia: 8 mm \| Lead: 2.5 mm \| Max length: 1200 mm \| Grade: T7
RM1002T		Nominal dia: 10 mm \| Lead: 2 mm \| Max length: 1200 mm \| Grade: T7
RM1004T		Nominal dia: 10 mm \| Lead: 4 mm \| Max length: 1200 mm \| Grade: T7
RM1204T		Nominal dia: 12 mm \| Lead: 4 mm \| Max length: 1400 mm \| Grade: T7
RM1205T		Nominal dia: 12 mm \| Lead: 5 mm \| Max length: 1400 mm \| Grade: T7
RM1210T		Nominal dia: 12 mm \| Lead: 10 mm \| Max length: 1400 mm \| Grade: T7
RM1520T		Nominal dia: 15 mm \| Lead: 20 mm \| Max length: 3000 mm \| Grade: T7
RM1605		Nominal dia: 15.6 mm \| Lead: 5 mm \| Max length: 3000 mm \| Grade: P3, P5, T7
RM1610		Nominal dia: 15.9 mm \| Lead: 10 mm \| Max length: 3000 mm \| Grade: P3, P5, T7
RM1616		Nominal dia: 15.9 mm \| Lead: 16 mm \| Max length: 3000 mm \| Grade: P3, P5, T7
RM2005		Nominal dia: 19.6 mm \| Lead: 5 mm \| Max length: 4000 mm \| Grade: P3, P5, T7
RM2010T		Nominal dia: 20 mm \| Lead: 10 mm \| Max length: 3000 mm \| Grade: T7
RM2020		Nominal dia: 19.6 mm \| Lead: 20 mm \| Max length: 4000 mm \| Grade: P3, P5, T7
RM2505		Nominal dia: 24.6 mm \| Lead: 5 mm \| Max length: 5000 mm \| Grade: P3, P5, T7
RM2510		Nominal dia: 24.6 mm \| Lead: 10 mm \| Max length: 5000 mm \| Grade: P3, P5, T7
RM2525		Nominal dia: 24.6 mm \| Lead: 25 mm \| Max length: 5000 mm \| Grade: P3, P5, T7
RM3205		Nominal dia: 31.6 mm \| Lead: 5 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM3210		Nominal dia: 31.6 mm \| Lead: 10 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM3220		Nominal dia: 32 / 31.6 mm \| Lead: 20 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM3232		Nominal dia: 32 mm \| Lead: 32 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM4005		Nominal dia: 39.6 mm \| Lead: 5 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM4010		Nominal dia: 39.6 mm \| Lead: 10 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM4020		Nominal dia: 39.6 mm \| Lead: 20 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM4040		Nominal dia: 39.6 mm \| Lead: 40 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM5010		Nominal dia: 49.5 mm \| Lead: 10 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM5020		Nominal dia: 49.5 mm \| Lead: 20 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM5050T		Nominal dia: 50 mm \| Lead: 50 mm \| Max length: 6000 mm \| Grade: T7
RM6310		Nominal dia: 62.5 mm \| Lead: 10 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM8010		Nominal dia: 79.5 mm \| Lead: 10 mm \| Max length: 7000 mm \| Grade: P3, P5, T7
RM2010		Nominal dia: 19.9 mm \| Lead: 10 mm \| Max length: 4000 mm \| Grade: P3, P5, T7
RM6320		Nominal dia: 62.5 mm \| Lead: 20 mm \| Max length: 6000 mm \| Grade: P3, P5, T7
RM1204		Nominal dia: 12 mm \| Lead: 4 mm \| Max length: 3000 mm \| Grade: P5, T7
