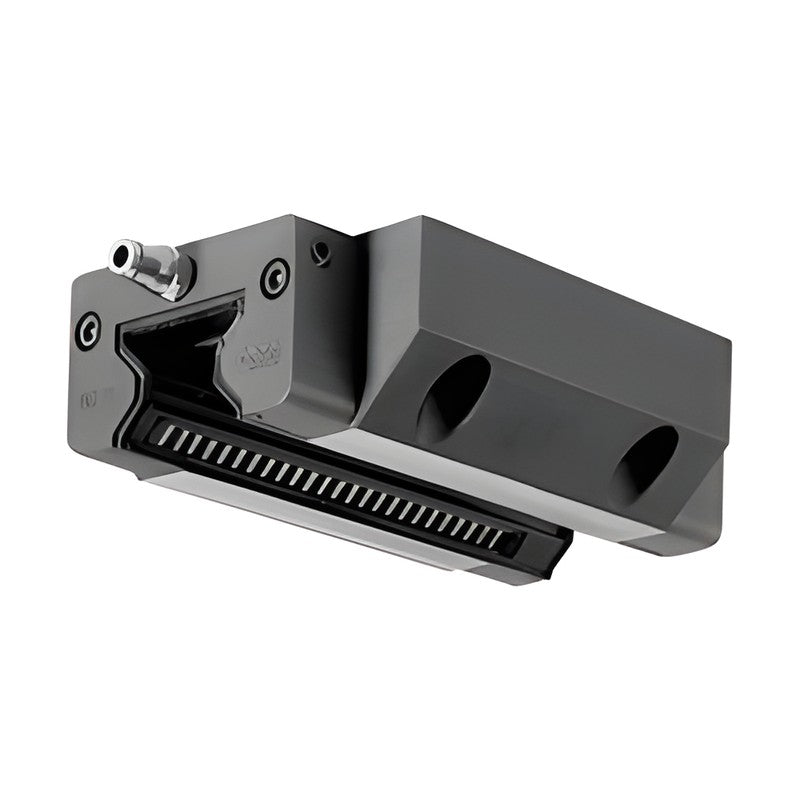

SBC-ROSA MG Roller Linear Guide Blocks (LC, LL, SC, SL)

SBC-ROSA MG Roller Linear Guide Blocks (LC, LL, SC, SL)

SBC-ROSA MG roller linear guide blocks produced with the technical cooperation of ROSA (Italy), for heavy-load, high-rigidity machine applications. Codes include the preload class.

Key features

  • Cylindrical roller recirculation for high rigidity and load capacity
  • Flange (LC, LL) and narrow (SC, SL) blocks in sizes 25 to 65
  • Preload P2 or P3
  • Accuracy grades Q0 to Q3
  • Additional seal kits TPA, TPNBR, TPVIT and long-life lubrication cartridge available

Specifications

Ordering e.g. MG35SC-P2
Brand SBC
Product type Linear Guides
Series MG
Designations listed 40
Units mm, kN
Source SBC Linear Rail System catalogue, p. 69-81
MG25LC-P2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG25LC-P3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG35LC-P2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG35LC-P3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG45LC-P2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG45LC-P3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG55LC-P2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG55LC-P3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG65LC-P2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG65LC-P3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG25LL-P2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG25LL-P3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG35LL-P2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG35LL-P3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG45LL-P2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG45LL-P3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG55LL-P2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG55LL-P3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG65LL-P2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG65LL-P3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG25SC-P2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG25SC-P3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG35SC-P2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG35SC-P3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG45SC-P2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG45SC-P3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG55SC-P2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG55SC-P3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG65SC-P2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG65SC-P3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG25SL-P2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG25SL-P3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG35SL-P2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG35SL-P3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG45SL-P2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG45SL-P3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG55SL-P2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG55SL-P3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG65SL-P2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG65SL-P3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
Linear GuidesSBC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC-ROSA MG Roller Linear Guide Blocks (LC, LL, SC, SL)

Brand SBC·Linear Guides

Available part numbers (40)

MG25LC-P2, MG25LC-P3, MG35LC-P2, MG35LC-P3, MG45LC-P2, MG45LC-P3, MG55LC-P2, MG55LC-P3, MG65LC-P2, MG65LC-P3 + 30 more — see full table ↓

How to order

Send the SBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MG25LC-P2Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG25LC-P3Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG35LC-P2Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG35LC-P3Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG45LC-P2Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG45LC-P3Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG55LC-P2Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG55LC-P3Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG65LC-P2Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG65LC-P3Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG25LL-P2Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG25LL-P3Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG35LL-P2Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG35LL-P3Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG45LL-P2Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG45LL-P3Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG55LL-P2Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG55LL-P3Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG65LL-P2Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG65LL-P3Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG25SC-P2Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG25SC-P3Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 90.2 mm | C: 28.7 kN | C0: 57.6 kN
MG35SC-P2Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG35SC-P3Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 119.3 mm | C: 53.3 kN | C0: 99 kN
MG45SC-P2Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG45SC-P3Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 147.3 mm | C: 95 kN | C0: 184 kN
MG55SC-P2Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG55SC-P3Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 173 mm | C: 132.6 kN | C0: 256 kN
MG65SC-P2Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG65SC-P3Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 221.8 mm | C: 212 kN | C0: 414 kN
MG25SL-P2Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG25SL-P3Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 109.7 mm | C: 38.9 kN | C0: 76.8 kN
MG35SL-P2Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG35SL-P3Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 142.3 mm | C: 72.6 kN | C0: 136 kN
MG45SL-P2Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG45SL-P3Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 179.8 mm | C: 119.5 kN | C0: 242.2 kN
MG55SL-P2Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG55SL-P3Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 215 mm | C: 176 kN | C0: 351 kN
MG65SL-P2Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
MG65SL-P3Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.3 mm | C: 276 kN | C0: 579 kN
