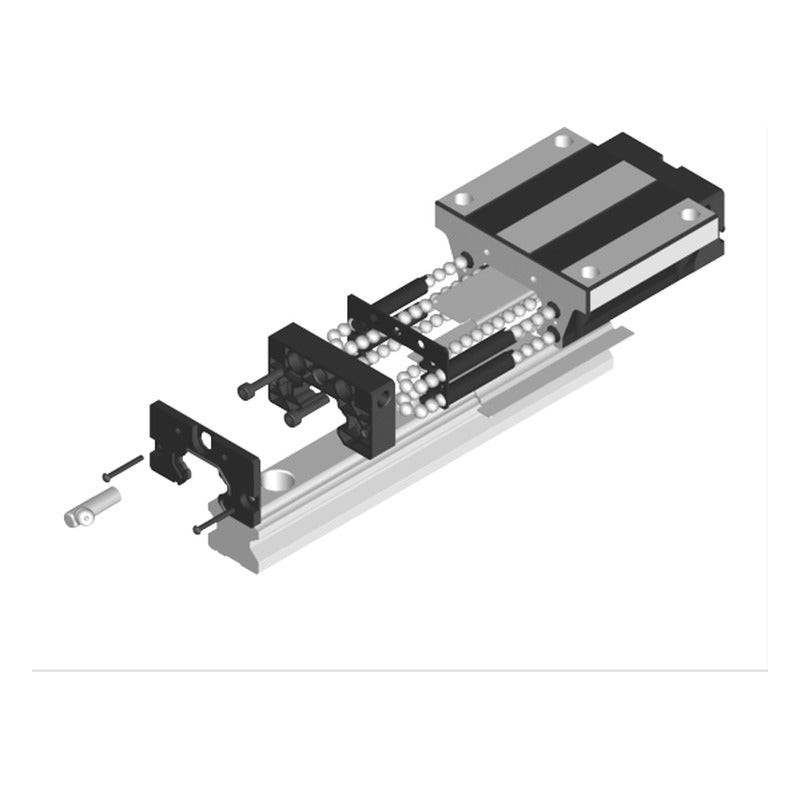

SBC SBG Standard Linear Guide Blocks (FL, FLL, SL, SLL)

SBC SBG Standard Linear Guide Blocks (FL, FLL, SL, SLL)

SBC SBG standard linear guide blocks in flange (FL, FLL) and square (SL, SLL) versions, sizes 15 to 65. Codes include the preload class.

Key features

  • Four-row ball circulation, equal load rating in four directions
  • Standard-size blocks interchangeable on common SBG rails
  • Preload K1, K2, K3 (size 15: K1-K2)
  • Accuracy grades N, H, P
  • Options: side nipple (N), MF container, DD/ZZ/KK seals

Specifications

Ordering e.g. SBG20FL-N-MFZZ-K1
Brand SBC
Product type Linear Guides
Series SBG
Designations listed 88
Units mm, kN
Source SBC Linear Rail System catalogue, p. 41-52
SBG15FL-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBG15FL-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBG20FL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20FL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20FL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20FLL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG20FLL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG20FLL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG25FL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25FL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25FL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25FLL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG25FLL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG25FLL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG30FL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30FL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30FL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30FLL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG30FLL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG30FLL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG35FL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35FL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35FL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35FLL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG35FLL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG35FLL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG45FL-K1 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45FL-K2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45FL-K3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45FLL-K1 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG45FLL-K2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG45FLL-K3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG55FL-K1 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55FL-K2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55FL-K3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55FLL-K1 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG55FLL-K2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG55FLL-K3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG65FL-K1 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65FL-K2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65FL-K3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65FLL-K1 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
SBG65FLL-K2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
SBG65FLL-K3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
SBG15SL-K1 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBG15SL-K2 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBG20SL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20SL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20SL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBG20SLL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG20SLL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG20SLL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBG25SL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25SL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25SL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBG25SLL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG25SLL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG25SLL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBG30SL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30SL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30SL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBG30SLL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG30SLL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG30SLL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBG35SL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35SL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35SL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBG35SLL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG35SLL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG35SLL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBG45SL-K1 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45SL-K2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45SL-K3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBG45SLL-K1 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG45SLL-K2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG45SLL-K3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBG55SL-K1 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55SL-K2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55SL-K3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 166.8 mm | C: 91.2 kN | C0: 156.9 kN
SBG55SLL-K1 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG55SLL-K2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG55SLL-K3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 204.8 mm | C: 111.8 kN | C0: 196.6 kN
SBG65SL-K1 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65SL-K2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65SL-K3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 195.2 mm | C: 147.9 kN | C0: 240.1 kN
SBG65SLL-K1 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
SBG65SLL-K2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
SBG65SLL-K3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 255.2 mm | C: 189.1 kN | C0: 320.4 kN
