• SBC SBI Flange High-Load Linear Guide Blocks (FL, FV)
1 1

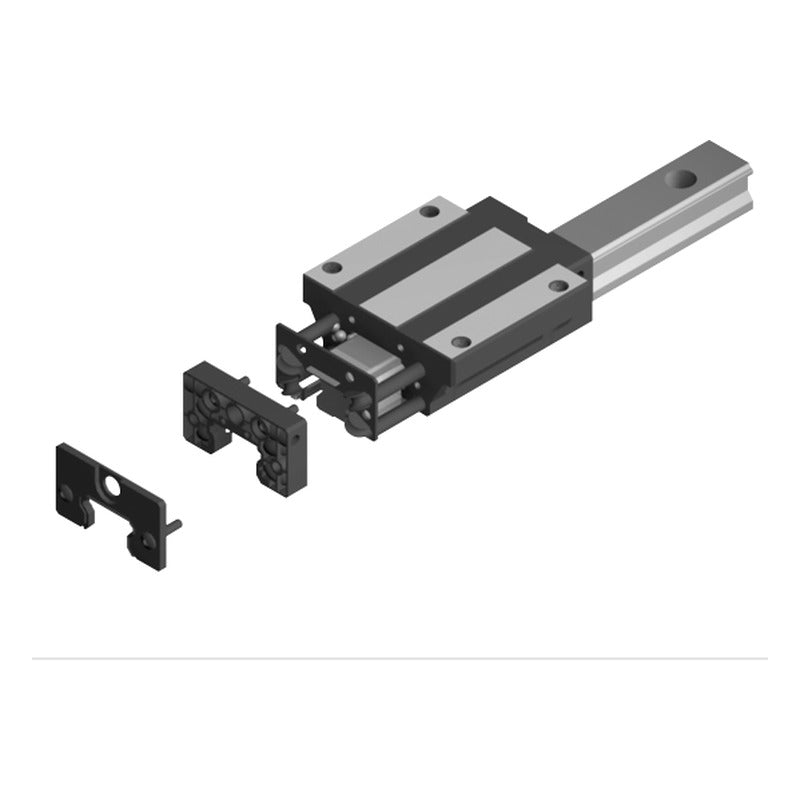

SBC SBI Flange High-Load Linear Guide Blocks (FL, FV)

SBC SBI Flange High-Load Linear Guide Blocks (FL, FV)

SBC SBI high-load linear guide blocks with flange (FLS, FL, FLL and short FV). Codes include the preload class; rails and blocks can also be ordered as matched sets.

Key features

  • Four-row ball circulation with high load capacity and rigidity
  • Interchangeable with SBG blocks in mounting dimensions
  • Preload K0 (clearance), K1, K2, K3 (SBI15: K0-K2)
  • Accuracy grades N, H, P
  • Options: side nipple (N), DF/MF containers, DD/ZZ/KK seals

Specifications

Block type Flange
Ordering e.g. SBI20FL-N-MFZZ-K1
Brand SBC
Product type Linear Guides
Series SBI
Designations listed 92
Units mm, kN
Source SBC Linear Rail System catalogue, p. 24-39
SBI15FLS-K0 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15FLS-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15FLS-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15FL-K0 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15FL-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15FL-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15FLL-K0 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15FLL-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15FLL-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI20FLS-K0 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 73.8 mm | C: 20.2 kN | C0: 29.1 kN
SBI20FLS-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 73.8 mm | C: 20.2 kN | C0: 29.1 kN
SBI20FLS-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 73.8 mm | C: 20.2 kN | C0: 29.1 kN
SBI20FLS-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 73.8 mm | C: 20.2 kN | C0: 29.1 kN
SBI20FL-K0 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20FL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20FL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20FL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20FLL-K0 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20FLL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20FLL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20FLL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI25FLS-K0 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25FLS-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25FLS-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25FLS-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25FL-K0 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25FL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25FL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25FL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25FLL-K0 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25FLL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25FLL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25FLL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI30FLS-K0 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30FLS-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30FLS-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30FLS-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30FL-K0 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30FL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30FL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30FL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30FLL-K0 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30FLL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30FLL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30FLL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI35FLS-K0 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35FLS-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35FLS-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35FLS-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35FL-K0 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35FL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35FL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35FL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35FLL-K0 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35FLL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35FLL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35FLL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI45FL-K0 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45FL-K1 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45FL-K2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45FL-K3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45FLL-K0 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45FLL-K1 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45FLL-K2 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45FLL-K3 Rail width: 45 mm | H: 60 mm | W: 120 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI55FL-K0 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55FL-K1 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55FL-K2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55FL-K3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55FLL-K0 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55FLL-K1 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55FLL-K2 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55FLL-K3 Rail width: 53 mm | H: 70 mm | W: 140 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI65FL-K0 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65FL-K1 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65FL-K2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65FL-K3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65FLL-K0 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65FLL-K1 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65FLL-K2 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65FLL-K3 Rail width: 63 mm | H: 90 mm | W: 170 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI15FV-K0 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15FV-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15FV-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI20FV-K0 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20FV-K1 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20FV-K2 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20FV-K3 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI25FV-K0 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25FV-K1 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25FV-K2 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25FV-K3 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
Linear GuidesSBC
92 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC SBI Flange High-Load Linear Guide Blocks (FL, FV)

Brand SBC·Linear Guides

Available part numbers (92)

SBI15FLS-K0, SBI15FLS-K1, SBI15FLS-K2, SBI15FL-K0, SBI15FL-K1, SBI15FL-K2, SBI15FLL-K0, SBI15FLL-K1, SBI15FLL-K2, SBI20FLS-K0 + 82 more — see full table ↓
