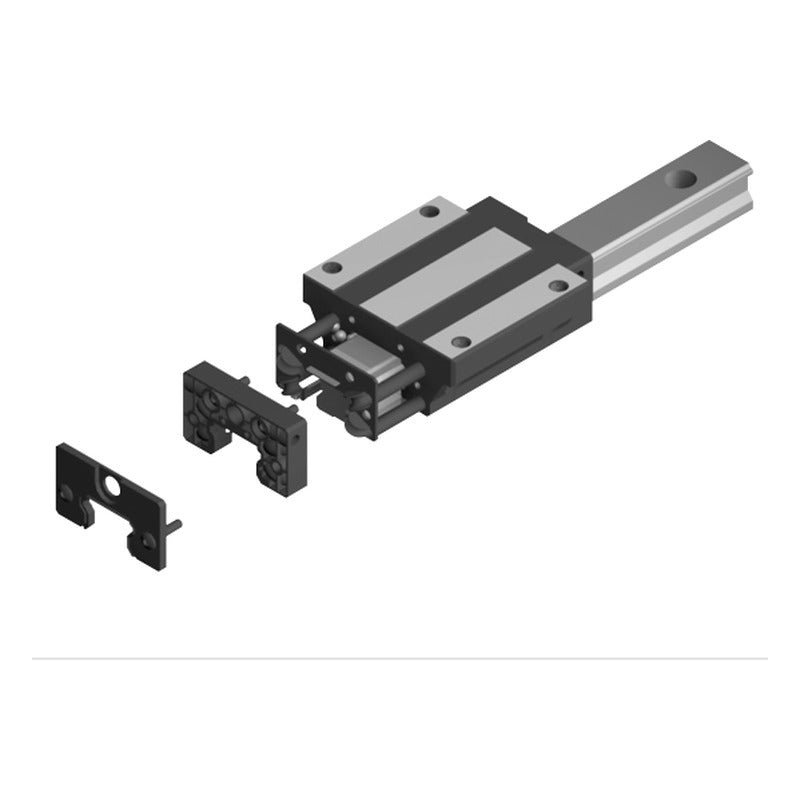

SBC SBI Linear Guide Rails (standard lengths, sizes 15-65)

SBC SBI Linear Guide Rails (standard lengths, sizes 15-65)

SBC SBI linear guide rails in the catalogue standard lengths for SBI high-load blocks. Rails ordered alone are supplied in accuracy grade N.

Key features

  • Standard lengths from 160 to 4000 mm
  • Counterbored mounting from above as standard
  • Bottom-tapped version (-B) available for sizes 15-45
  • Longer rails supplied as butt-jointed sections
  • Rails ordered alone ship in grade N

Specifications

Ordering Model - length L (- B for bottom mounting)
Brand SBC
Product type Linear Guides
Series SBI
Designations listed 113
Units mm
Source SBC Linear Rail System catalogue, p. 33-34
SBI15-160L Rail width: 15 mm | Rail height: 13 mm | Length: 160 mm | Hole pitch F: 60 mm
SBI15-220L Rail width: 15 mm | Rail height: 13 mm | Length: 220 mm | Hole pitch F: 60 mm
SBI15-280L Rail width: 15 mm | Rail height: 13 mm | Length: 280 mm | Hole pitch F: 60 mm
SBI15-340L Rail width: 15 mm | Rail height: 13 mm | Length: 340 mm | Hole pitch F: 60 mm
SBI15-460L Rail width: 15 mm | Rail height: 13 mm | Length: 460 mm | Hole pitch F: 60 mm
SBI15-640L Rail width: 15 mm | Rail height: 13 mm | Length: 640 mm | Hole pitch F: 60 mm
SBI15-820L Rail width: 15 mm | Rail height: 13 mm | Length: 820 mm | Hole pitch F: 60 mm
SBI15-1000L Rail width: 15 mm | Rail height: 13 mm | Length: 1000 mm | Hole pitch F: 60 mm
SBI15-1240L Rail width: 15 mm | Rail height: 13 mm | Length: 1240 mm | Hole pitch F: 60 mm
SBI15-1480L Rail width: 15 mm | Rail height: 13 mm | Length: 1480 mm | Hole pitch F: 60 mm
SBI15-1600L Rail width: 15 mm | Rail height: 13 mm | Length: 1600 mm | Hole pitch F: 60 mm
SBI15-1960L Rail width: 15 mm | Rail height: 13 mm | Length: 1960 mm | Hole pitch F: 60 mm
SBI15-2200L Rail width: 15 mm | Rail height: 13 mm | Length: 2200 mm | Hole pitch F: 60 mm
SBI15-2500L Rail width: 15 mm | Rail height: 13 mm | Length: 2500 mm | Hole pitch F: 60 mm
SBI15-2860L Rail width: 15 mm | Rail height: 13 mm | Length: 2860 mm | Hole pitch F: 60 mm
SBI20-220L Rail width: 20 mm | Rail height: 16.5 mm | Length: 220 mm | Hole pitch F: 60 mm
SBI20-280L Rail width: 20 mm | Rail height: 16.5 mm | Length: 280 mm | Hole pitch F: 60 mm
SBI20-340L Rail width: 20 mm | Rail height: 16.5 mm | Length: 340 mm | Hole pitch F: 60 mm
SBI20-460L Rail width: 20 mm | Rail height: 16.5 mm | Length: 460 mm | Hole pitch F: 60 mm
SBI20-640L Rail width: 20 mm | Rail height: 16.5 mm | Length: 640 mm | Hole pitch F: 60 mm
SBI20-820L Rail width: 20 mm | Rail height: 16.5 mm | Length: 820 mm | Hole pitch F: 60 mm
SBI20-1000L Rail width: 20 mm | Rail height: 16.5 mm | Length: 1000 mm | Hole pitch F: 60 mm
SBI20-1240L Rail width: 20 mm | Rail height: 16.5 mm | Length: 1240 mm | Hole pitch F: 60 mm
SBI20-1480L Rail width: 20 mm | Rail height: 16.5 mm | Length: 1480 mm | Hole pitch F: 60 mm
SBI20-1600L Rail width: 20 mm | Rail height: 16.5 mm | Length: 1600 mm | Hole pitch F: 60 mm
SBI20-1840L Rail width: 20 mm | Rail height: 16.5 mm | Length: 1840 mm | Hole pitch F: 60 mm
SBI20-2080L Rail width: 20 mm | Rail height: 16.5 mm | Length: 2080 mm | Hole pitch F: 60 mm
SBI20-2200L Rail width: 20 mm | Rail height: 16.5 mm | Length: 2200 mm | Hole pitch F: 60 mm
SBI20-2500L Rail width: 20 mm | Rail height: 16.5 mm | Length: 2500 mm | Hole pitch F: 60 mm
SBI20-2960L Rail width: 20 mm | Rail height: 16.5 mm | Length: 2960 mm | Hole pitch F: 60 mm
SBI20-3520L Rail width: 20 mm | Rail height: 16.5 mm | Length: 3520 mm | Hole pitch F: 60 mm
SBI20-4000L Rail width: 20 mm | Rail height: 16.5 mm | Length: 4000 mm | Hole pitch F: 60 mm
SBI25-220L Rail width: 23 mm | Rail height: 20 mm | Length: 220 mm | Hole pitch F: 60 mm
SBI25-280L Rail width: 23 mm | Rail height: 20 mm | Length: 280 mm | Hole pitch F: 60 mm
SBI25-340L Rail width: 23 mm | Rail height: 20 mm | Length: 340 mm | Hole pitch F: 60 mm
SBI25-460L Rail width: 23 mm | Rail height: 20 mm | Length: 460 mm | Hole pitch F: 60 mm
SBI25-640L Rail width: 23 mm | Rail height: 20 mm | Length: 640 mm | Hole pitch F: 60 mm
SBI25-820L Rail width: 23 mm | Rail height: 20 mm | Length: 820 mm | Hole pitch F: 60 mm
SBI25-1000L Rail width: 23 mm | Rail height: 20 mm | Length: 1000 mm | Hole pitch F: 60 mm
SBI25-1240L Rail width: 23 mm | Rail height: 20 mm | Length: 1240 mm | Hole pitch F: 60 mm
SBI25-1480L Rail width: 23 mm | Rail height: 20 mm | Length: 1480 mm | Hole pitch F: 60 mm
SBI25-1600L Rail width: 23 mm | Rail height: 20 mm | Length: 1600 mm | Hole pitch F: 60 mm
SBI25-1840L Rail width: 23 mm | Rail height: 20 mm | Length: 1840 mm | Hole pitch F: 60 mm
SBI25-2080L Rail width: 23 mm | Rail height: 20 mm | Length: 2080 mm | Hole pitch F: 60 mm
SBI25-2200L Rail width: 23 mm | Rail height: 20 mm | Length: 2200 mm | Hole pitch F: 60 mm
SBI25-2500L Rail width: 23 mm | Rail height: 20 mm | Length: 2500 mm | Hole pitch F: 60 mm
SBI25-2980L Rail width: 23 mm | Rail height: 20 mm | Length: 2980 mm | Hole pitch F: 60 mm
SBI25-3520L Rail width: 23 mm | Rail height: 20 mm | Length: 3520 mm | Hole pitch F: 60 mm
SBI25-4000L Rail width: 23 mm | Rail height: 20 mm | Length: 4000 mm | Hole pitch F: 60 mm
SBI30-280L Rail width: 28 mm | Rail height: 23 mm | Length: 280 mm | Hole pitch F: 80 mm
SBI30-440L Rail width: 28 mm | Rail height: 23 mm | Length: 440 mm | Hole pitch F: 80 mm
SBI30-600L Rail width: 28 mm | Rail height: 23 mm | Length: 600 mm | Hole pitch F: 80 mm
SBI30-760L Rail width: 28 mm | Rail height: 23 mm | Length: 760 mm | Hole pitch F: 80 mm
SBI30-1000L Rail width: 28 mm | Rail height: 23 mm | Length: 1000 mm | Hole pitch F: 80 mm
SBI30-1240L Rail width: 28 mm | Rail height: 23 mm | Length: 1240 mm | Hole pitch F: 80 mm
SBI30-1480L Rail width: 28 mm | Rail height: 23 mm | Length: 1480 mm | Hole pitch F: 80 mm
SBI30-1640L Rail width: 28 mm | Rail height: 23 mm | Length: 1640 mm | Hole pitch F: 80 mm
SBI30-1800L Rail width: 28 mm | Rail height: 23 mm | Length: 1800 mm | Hole pitch F: 80 mm
SBI30-2040L Rail width: 28 mm | Rail height: 23 mm | Length: 2040 mm | Hole pitch F: 80 mm
SBI30-2200L Rail width: 28 mm | Rail height: 23 mm | Length: 2200 mm | Hole pitch F: 80 mm
SBI30-2520L Rail width: 28 mm | Rail height: 23 mm | Length: 2520 mm | Hole pitch F: 80 mm
SBI30-2840L Rail width: 28 mm | Rail height: 23 mm | Length: 2840 mm | Hole pitch F: 80 mm
SBI30-3000L Rail width: 28 mm | Rail height: 23 mm | Length: 3000 mm | Hole pitch F: 80 mm
SBI30-3480L Rail width: 28 mm | Rail height: 23 mm | Length: 3480 mm | Hole pitch F: 80 mm
SBI35-280L Rail width: 34 mm | Rail height: 26 mm | Length: 280 mm | Hole pitch F: 80 mm
SBI35-440L Rail width: 34 mm | Rail height: 26 mm | Length: 440 mm | Hole pitch F: 80 mm
SBI35-600L Rail width: 34 mm | Rail height: 26 mm | Length: 600 mm | Hole pitch F: 80 mm
SBI35-760L Rail width: 34 mm | Rail height: 26 mm | Length: 760 mm | Hole pitch F: 80 mm
SBI35-1000L Rail width: 34 mm | Rail height: 26 mm | Length: 1000 mm | Hole pitch F: 80 mm
SBI35-1240L Rail width: 34 mm | Rail height: 26 mm | Length: 1240 mm | Hole pitch F: 80 mm
SBI35-1480L Rail width: 34 mm | Rail height: 26 mm | Length: 1480 mm | Hole pitch F: 80 mm
SBI35-1640L Rail width: 34 mm | Rail height: 26 mm | Length: 1640 mm | Hole pitch F: 80 mm
SBI35-1800L Rail width: 34 mm | Rail height: 26 mm | Length: 1800 mm | Hole pitch F: 80 mm
SBI35-2040L Rail width: 34 mm | Rail height: 26 mm | Length: 2040 mm | Hole pitch F: 80 mm
SBI35-2200L Rail width: 34 mm | Rail height: 26 mm | Length: 2200 mm | Hole pitch F: 80 mm
SBI35-2520L Rail width: 34 mm | Rail height: 26 mm | Length: 2520 mm | Hole pitch F: 80 mm
SBI35-2840L Rail width: 34 mm | Rail height: 26 mm | Length: 2840 mm | Hole pitch F: 80 mm
SBI35-3000L Rail width: 34 mm | Rail height: 26 mm | Length: 3000 mm | Hole pitch F: 80 mm
SBI35-3480L Rail width: 34 mm | Rail height: 26 mm | Length: 3480 mm | Hole pitch F: 80 mm
SBI45-570L Rail width: 45 mm | Rail height: 32 mm | Length: 570 mm | Hole pitch F: 105 mm
SBI45-885L Rail width: 45 mm | Rail height: 32 mm | Length: 885 mm | Hole pitch F: 105 mm
SBI45-1095L Rail width: 45 mm | Rail height: 32 mm | Length: 1095 mm | Hole pitch F: 105 mm
SBI45-1200L Rail width: 45 mm | Rail height: 32 mm | Length: 1200 mm | Hole pitch F: 105 mm
SBI45-1410L Rail width: 45 mm | Rail height: 32 mm | Length: 1410 mm | Hole pitch F: 105 mm
SBI45-1620L Rail width: 45 mm | Rail height: 32 mm | Length: 1620 mm | Hole pitch F: 105 mm
SBI45-1830L Rail width: 45 mm | Rail height: 32 mm | Length: 1830 mm | Hole pitch F: 105 mm
SBI45-2040L Rail width: 45 mm | Rail height: 32 mm | Length: 2040 mm | Hole pitch F: 105 mm
SBI45-2250L Rail width: 45 mm | Rail height: 32 mm | Length: 2250 mm | Hole pitch F: 105 mm
SBI45-2460L Rail width: 45 mm | Rail height: 32 mm | Length: 2460 mm | Hole pitch F: 105 mm
SBI45-2985L Rail width: 45 mm | Rail height: 32 mm | Length: 2985 mm | Hole pitch F: 105 mm
SBI45-3510L Rail width: 45 mm | Rail height: 32 mm | Length: 3510 mm | Hole pitch F: 105 mm
SBI55-780L Rail width: 53 mm | Rail height: 38 mm | Length: 780 mm | Hole pitch F: 120 mm
SBI55-900L Rail width: 53 mm | Rail height: 38 mm | Length: 900 mm | Hole pitch F: 120 mm
SBI55-1020L Rail width: 53 mm | Rail height: 38 mm | Length: 1020 mm | Hole pitch F: 120 mm
SBI55-1140L Rail width: 53 mm | Rail height: 38 mm | Length: 1140 mm | Hole pitch F: 120 mm
SBI55-1260L Rail width: 53 mm | Rail height: 38 mm | Length: 1260 mm | Hole pitch F: 120 mm
SBI55-1380L Rail width: 53 mm | Rail height: 38 mm | Length: 1380 mm | Hole pitch F: 120 mm
SBI55-1500L Rail width: 53 mm | Rail height: 38 mm | Length: 1500 mm | Hole pitch F: 120 mm
SBI55-1620L Rail width: 53 mm | Rail height: 38 mm | Length: 1620 mm | Hole pitch F: 120 mm
SBI55-1740L Rail width: 53 mm | Rail height: 38 mm | Length: 1740 mm | Hole pitch F: 120 mm
SBI55-1860L Rail width: 53 mm | Rail height: 38 mm | Length: 1860 mm | Hole pitch F: 120 mm
SBI55-1980L Rail width: 53 mm | Rail height: 38 mm | Length: 1980 mm | Hole pitch F: 120 mm
SBI55-2220L Rail width: 53 mm | Rail height: 38 mm | Length: 2220 mm | Hole pitch F: 120 mm
SBI55-2580L Rail width: 53 mm | Rail height: 38 mm | Length: 2580 mm | Hole pitch F: 120 mm
SBI55-2940L Rail width: 53 mm | Rail height: 38 mm | Length: 2940 mm | Hole pitch F: 120 mm
SBI55-3540L Rail width: 53 mm | Rail height: 38 mm | Length: 3540 mm | Hole pitch F: 120 mm
SBI65-1270L Rail width: 63 mm | Rail height: 53 mm | Length: 1270 mm | Hole pitch F: 150 mm
SBI65-1570L Rail width: 63 mm | Rail height: 53 mm | Length: 1570 mm | Hole pitch F: 150 mm
SBI65-2020L Rail width: 63 mm | Rail height: 53 mm | Length: 2020 mm | Hole pitch F: 150 mm
SBI65-2470L Rail width: 63 mm | Rail height: 53 mm | Length: 2470 mm | Hole pitch F: 150 mm
SBI65-2620L Rail width: 63 mm | Rail height: 53 mm | Length: 2620 mm | Hole pitch F: 150 mm
SBI65-2920L Rail width: 63 mm | Rail height: 53 mm | Length: 2920 mm | Hole pitch F: 150 mm
SBI65-3070L Rail width: 63 mm | Rail height: 53 mm | Length: 3070 mm | Hole pitch F: 150 mm
