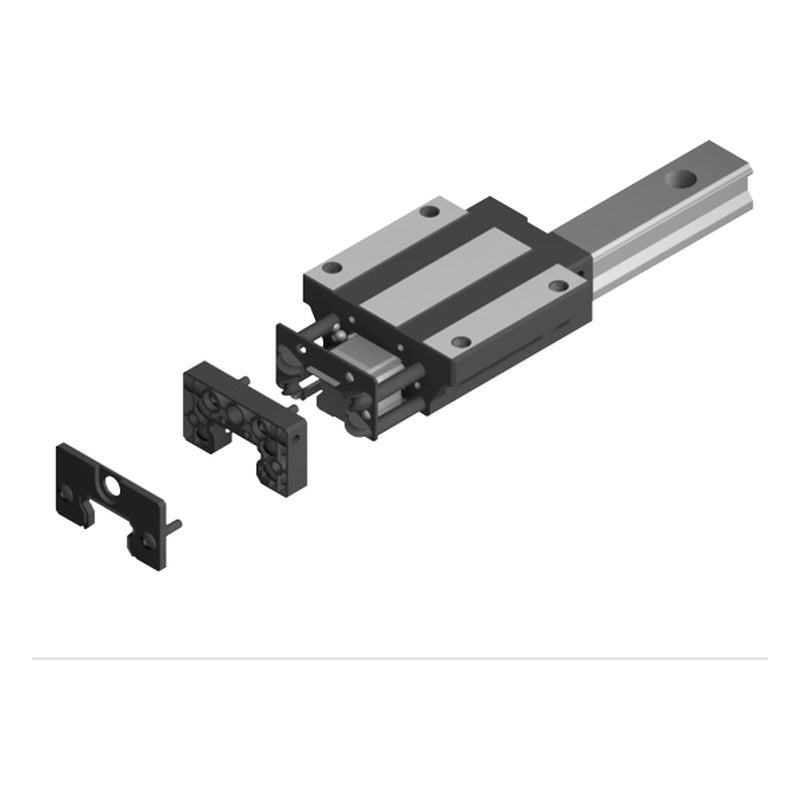

SBC SBI Square High-Load Linear Guide Blocks (SL, HL, CL, SV)

SBC SBI Square High-Load Linear Guide Blocks (SL, HL, CL, SV)

SBC SBI high-load linear guide blocks in square (narrow) versions: SL, HL (low height), CL (compact) and short SV. Codes include the preload class.

Key features

  • Four-row ball circulation with high load capacity and rigidity
  • Interchangeable with SBG blocks in mounting dimensions
  • Preload K0 (clearance), K1, K2, K3 (SBI15: K0-K2)
  • Accuracy grades N, H, P
  • Options: side nipple (N), DF/MF containers, DD/ZZ/KK seals

Specifications

Block type Square (narrow)
Ordering e.g. SBI20SL-K1
Brand SBC
Product type Linear Guides
Series SBI
Designations listed 173
Units mm, kN
Source SBC Linear Rail System catalogue, p. 24-40
SBI15SLS-K0 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SLS-K1 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SLS-K2 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SL-K0 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SL-K1 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SL-K2 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SLL-K0 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15SLL-K1 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15SLL-K2 Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI20SLS-K0 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SL-K0 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SLL-K0 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI25SLS-K0 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SL-K0 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SLL-K0 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI30SLS-K0 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SL-K0 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SLL-K0 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI35SLS-K0 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SL-K0 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SLL-K0 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI45SL-K0 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K1 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SLL-K0 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K1 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K2 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K3 Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI55SL-K0 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K1 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SLL-K0 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K1 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K2 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K3 Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI65SL-K0 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K1 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SLL-K0 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K1 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K2 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K3 Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI15HLS-K0 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HLS-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HLS-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HL-K0 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HL-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HL-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HLL-K0 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15HLL-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15HLL-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI25HLS-K0 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K1 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K2 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K3 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HL-K0 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K1 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K2 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K3 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HLL-K0 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K1 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K2 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K3 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI30HLS-K0 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K1 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K2 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K3 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HL-K0 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K1 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K2 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K3 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HLL-K0 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K1 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K2 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K3 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI35HLS-K0 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K1 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K2 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K3 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HL-K0 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K1 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K2 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K3 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HLL-K0 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K1 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K2 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K3 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI45HL-K0 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K1 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K2 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K3 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HLL-K0 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K1 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K2 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K3 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI55HL-K0 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K1 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K2 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K3 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HLL-K0 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K1 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K2 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K3 Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI20CLS-K0 Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K1 Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K2 Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K3 Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CL-K0 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CLL-K0 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI25CL-K0 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CLL-K0 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI15SV-K0 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15SV-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15SV-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI20SV-K0 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI25SV-K0 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
Linear GuidesSBC
173 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC SBI Square High-Load Linear Guide Blocks (SL, HL, CL, SV)

Brand SBC·Linear Guides

Available part numbers (173)

SBI15SLS-K0, SBI15SLS-K1, SBI15SLS-K2, SBI15SL-K0, SBI15SL-K1, SBI15SL-K2, SBI15SLL-K0, SBI15SLL-K1, SBI15SLL-K2, SBI20SLS-K0 + 163 more — see full table ↓

How to order

Send the SBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBI15SLS-K0Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SLS-K1Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SLS-K2Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15SL-K0Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SL-K1Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SL-K2Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15SLL-K0Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15SLL-K1Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15SLL-K2Rail width: 15 mm | H: 28 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI20SLS-K0Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K1Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K2Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SLS-K3Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 73.8 mm | C: 20.2 kN | C0: 19.1 kN
SBI20SL-K0Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K1Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K2Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SL-K3Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20SLL-K0Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K1Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K2Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20SLL-K3Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI25SLS-K0Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K1Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K2Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SLS-K3Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25SL-K0Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K1Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K2Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SL-K3Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25SLL-K0Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K1Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K2Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25SLL-K3Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI30SLS-K0Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K1Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K2Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SLS-K3Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30SL-K0Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K1Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K2Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SL-K3Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30SLL-K0Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K1Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K2Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30SLL-K3Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI35SLS-K0Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K1Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K2Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SLS-K3Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35SL-K0Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K1Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K2Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SL-K3Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35SLL-K0Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K1Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K2Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35SLL-K3Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI45SL-K0Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K1Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K2Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SL-K3Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45SLL-K0Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K1Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K2Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45SLL-K3Rail width: 45 mm | H: 70 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI55SL-K0Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K1Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K2Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SL-K3Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55SLL-K0Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K1Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K2Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55SLL-K3Rail width: 53 mm | H: 80 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI65SL-K0Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K1Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K2Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SL-K3Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 219.8 mm | C: 188.3 kN | C0: 261.7 kN
SBI65SLL-K0Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K1Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K2Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI65SLL-K3Rail width: 63 mm | H: 90 mm | W: 126 mm | L: 272.2 mm | C: 232.5 kN | C0: 354.1 kN
SBI15HLS-K0Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HLS-K1Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HLS-K2Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 56.8 mm | C: 12.3 kN | C0: 18.3 kN
SBI15HL-K0Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HL-K1Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HL-K2Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 63.8 mm | C: 14.1 kN | C0: 24.1 kN
SBI15HLL-K0Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15HLL-K1Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI15HLL-K2Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 79.4 mm | C: 17.1 kN | C0: 31.7 kN
SBI25HLS-K0Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K1Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K2Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HLS-K3Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 83 mm | C: 28.9 kN | C0: 42.8 kN
SBI25HL-K0Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K1Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K2Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HL-K3Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25HLL-K0Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K1Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K2Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25HLL-K3Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI30HLS-K0Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K1Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K2Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HLS-K3Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 96.8 mm | C: 39.2 kN | C0: 57.7 kN
SBI30HL-K0Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K1Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K2Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HL-K3Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 107.6 mm | C: 42.8 kN | C0: 65.4 kN
SBI30HLL-K0Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K1Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K2Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI30HLL-K3Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 131.6 mm | C: 51.3 kN | C0: 84.7 kN
SBI35HLS-K0Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K1Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K2Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HLS-K3Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 108.2 mm | C: 52 kN | C0: 73.3 kN
SBI35HL-K0Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K1Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K2Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HL-K3Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 124.6 mm | C: 59.5 kN | C0: 89.1 kN
SBI35HLL-K0Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K1Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K2Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI35HLL-K3Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 152.6 mm | C: 71.3 kN | C0: 115.3 kN
SBI45HL-K0Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K1Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K2Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HL-K3Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 142 mm | C: 79.2 kN | C0: 116.3 kN
SBI45HLL-K0Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K1Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K2Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI45HLL-K3Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 174 mm | C: 94.8 kN | C0: 150.5 kN
SBI55HL-K0Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K1Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K2Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HL-K3Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 172.4 mm | C: 127.3 kN | C0: 181.8 kN
SBI55HLL-K0Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K1Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K2Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI55HLL-K3Rail width: 53 mm | H: 70 mm | W: 100 mm | L: 211.8 mm | C: 147.9 kN | C0: 224.5 kN
SBI20CLS-K0Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K1Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K2Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CLS-K3Rail width: 20 mm | H: 28 mm | W: 42 mm | L: 65.2 mm | C: 19.1 kN | C0: 27 kN
SBI20CL-K0Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K1Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K2Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CL-K3Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 78.8 mm | C: 22.2 kN | C0: 38.2 kN
SBI20CLL-K0Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K1Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K2Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI20CLL-K3Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 96.4 mm | C: 27.9 kN | C0: 50 kN
SBI25CL-K0Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K1Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K2Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CL-K3Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 92 mm | C: 31.5 kN | C0: 52.1 kN
SBI25CLL-K0Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K1Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K2Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI25CLL-K3Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 108 mm | C: 36.7 kN | C0: 64.4 kN
SBI15SV-K0Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15SV-K1Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI15SV-K2Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 39.9 mm | C: 5.8 kN | C0: 12.8 kN
SBI20SV-K0Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K1Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K2Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI20SV-K3Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 49.1 mm | C: 9.4 kN | C0: 20.2 kN
SBI25SV-K0Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K1Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K2Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN
SBI25SV-K3Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 52.6 mm | C: 12.4 kN | C0: 26.1 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
