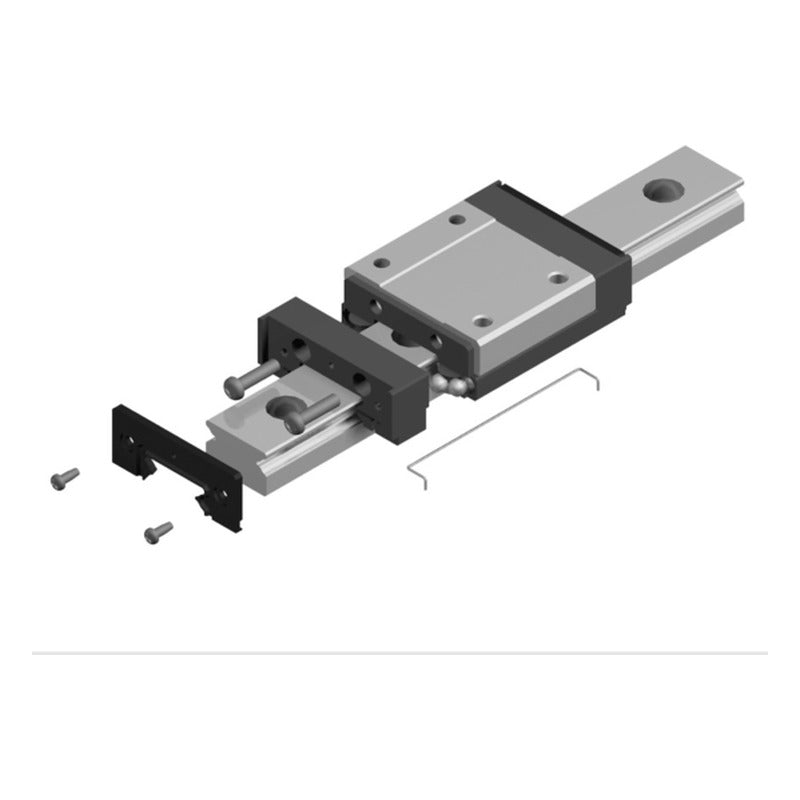

SBC SBM Miniature Linear Guide Blocks (SBM, SBML, SBMW, SBMWL)

SBC SBM Miniature Linear Guide Blocks (SBM, SBML, SBMW, SBMWL)

SBC SBM miniature linear guide blocks with gothic-arch grooves in standard, long, wide and wide-long versions, sizes 7 to 15. Codes include the preload class.

Key features

  • Gothic-arch raceways for compact, rigid guidance
  • Standard (SBM), long (SBML), wide (SBMW) and wide-long (SBMWL) blocks
  • Preload K1 or K2
  • Accuracy grades N, H, P
  • SBML runs on SBM rails, SBMWL on SBMW rails

Specifications

Ordering e.g. SBM09-K1
Brand SBC
Product type Linear Guides
Series SBM
Designations listed 28
Units mm, kN
Source SBC Linear Rail System catalogue, p. 62-68
SBM07-K1 Rail width: 7 mm | H: 8 mm | W: 17 mm | L: 22.9 mm | C: 0.88 kN | C0: 1.37 kN
SBM07-K2 Rail width: 7 mm | H: 8 mm | W: 17 mm | L: 22.9 mm | C: 0.88 kN | C0: 1.37 kN
SBML07-K1 Rail width: 7 mm | H: 8 mm | W: 17 mm | L: 32.4 mm | C: 1.59 kN | C0: 2.5 kN
SBML07-K2 Rail width: 7 mm | H: 8 mm | W: 17 mm | L: 32.4 mm | C: 1.59 kN | C0: 2.5 kN
SBM09-K1 Rail width: 9 mm | H: 10 mm | W: 20 mm | L: 30.4 mm | C: 1.42 kN | C0: 2.9 kN
SBM09-K2 Rail width: 9 mm | H: 10 mm | W: 20 mm | L: 30.4 mm | C: 1.42 kN | C0: 2.9 kN
SBML09-K1 Rail width: 9 mm | H: 10 mm | W: 20 mm | L: 40.8 mm | C: 2.59 kN | C0: 3.92 kN
SBML09-K2 Rail width: 9 mm | H: 10 mm | W: 20 mm | L: 40.8 mm | C: 2.59 kN | C0: 3.92 kN
SBM12-K1 Rail width: 12 mm | H: 13 mm | W: 27 mm | L: 35 mm | C: 2.46 kN | C0: 3.62 kN
SBM12-K2 Rail width: 12 mm | H: 13 mm | W: 27 mm | L: 35 mm | C: 2.46 kN | C0: 3.62 kN
SBML12-K1 Rail width: 12 mm | H: 13 mm | W: 27 mm | L: 47.6 mm | C: 4.21 kN | C0: 6.56 kN
SBML12-K2 Rail width: 12 mm | H: 13 mm | W: 27 mm | L: 47.6 mm | C: 4.21 kN | C0: 6.56 kN
SBM15-K1 Rail width: 15 mm | H: 16 mm | W: 32 mm | L: 43 mm | C: 4.02 kN | C0: 5.97 kN
SBM15-K2 Rail width: 15 mm | H: 16 mm | W: 32 mm | L: 43 mm | C: 4.02 kN | C0: 5.97 kN
SBML15-K1 Rail width: 15 mm | H: 16 mm | W: 32 mm | L: 58.8 mm | C: 7.15 kN | C0: 10.68 kN
SBML15-K2 Rail width: 15 mm | H: 16 mm | W: 32 mm | L: 58.8 mm | C: 7.15 kN | C0: 10.68 kN
SBMW09-K1 Rail width: 18 mm | H: 12 mm | W: 30 mm | L: 42.3 mm | C: 2.45 kN | C0: 3.92 kN
SBMW09-K2 Rail width: 18 mm | H: 12 mm | W: 30 mm | L: 42.3 mm | C: 2.45 kN | C0: 3.92 kN
SBMWL09-K1 Rail width: 18 mm | H: 12 mm | W: 30 mm | L: 50.3 mm | C: 3.52 kN | C0: 5.37 kN
SBMWL09-K2 Rail width: 18 mm | H: 12 mm | W: 30 mm | L: 50.3 mm | C: 3.52 kN | C0: 5.37 kN
SBMW12-K1 Rail width: 24 mm | H: 14 mm | W: 40 mm | L: 48.4 mm | C: 4.02 kN | C0: 6.08 kN
SBMW12-K2 Rail width: 24 mm | H: 14 mm | W: 40 mm | L: 48.4 mm | C: 4.02 kN | C0: 6.08 kN
SBMWL12-K1 Rail width: 24 mm | H: 14 mm | W: 40 mm | L: 59.5 mm | C: 5.96 kN | C0: 9.21 kN
SBMWL12-K2 Rail width: 24 mm | H: 14 mm | W: 40 mm | L: 59.5 mm | C: 5.96 kN | C0: 9.21 kN
SBMW15-K1 Rail width: 42 mm | H: 16 mm | W: 60 mm | L: 57.5 mm | C: 6.66 kN | C0: 9.8 kN
SBMW15-K2 Rail width: 42 mm | H: 16 mm | W: 60 mm | L: 57.5 mm | C: 6.66 kN | C0: 9.8 kN
SBMWL15-K1 Rail width: 42 mm | H: 16 mm | W: 60 mm | L: 73.4 mm | C: 9.91 kN | C0: 14.9 kN
SBMWL15-K2 Rail width: 42 mm | H: 16 mm | W: 60 mm | L: 73.4 mm | C: 9.91 kN | C0: 14.9 kN
