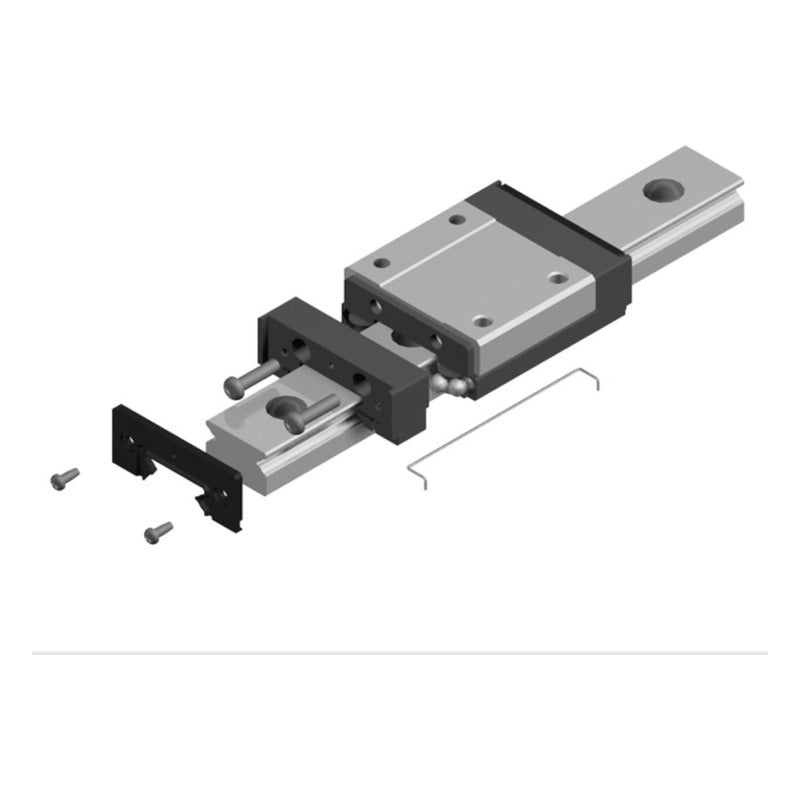

SBC SBM/SBMW Miniature Linear Guide Rails (standard lengths)

SBC SBM/SBMW Miniature Linear Guide Rails (standard lengths)

SBC SBM and SBMW miniature linear guide rails in the catalogue standard lengths. Rails ordered alone are supplied in accuracy grade N.

Key features

  • Standard lengths from 40 to 1195 mm
  • SBM rails shared by SBM and SBML blocks
  • SBMW rails shared by SBMW and SBMWL blocks
  • Tapped-from-below version (B) available
  • Rails ordered alone ship in grade N

Specifications

Ordering Model - length L (- B)
Brand SBC
Product type Linear Guides
Series SBM/SBMW
Designations listed 130
Units mm
Source SBC Linear Rail System catalogue, p. 65
SBM07-40L Rail width: 7 mm | Length: 40 mm
SBM07-55L Rail width: 7 mm | Length: 55 mm
SBM07-70L Rail width: 7 mm | Length: 70 mm
SBM07-85L Rail width: 7 mm | Length: 85 mm
SBM07-100L Rail width: 7 mm | Length: 100 mm
SBM07-115L Rail width: 7 mm | Length: 115 mm
SBM07-130L Rail width: 7 mm | Length: 130 mm
SBM07-160L Rail width: 7 mm | Length: 160 mm
SBM07-190L Rail width: 7 mm | Length: 190 mm
SBM07-220L Rail width: 7 mm | Length: 220 mm
SBM07-250L Rail width: 7 mm | Length: 250 mm
SBM07-280L Rail width: 7 mm | Length: 280 mm
SBM09-55L Rail width: 9 mm | Length: 55 mm
SBM09-75L Rail width: 9 mm | Length: 75 mm
SBM09-95L Rail width: 9 mm | Length: 95 mm
SBM09-115L Rail width: 9 mm | Length: 115 mm
SBM09-135L Rail width: 9 mm | Length: 135 mm
SBM09-155L Rail width: 9 mm | Length: 155 mm
SBM09-175L Rail width: 9 mm | Length: 175 mm
SBM09-215L Rail width: 9 mm | Length: 215 mm
SBM09-255L Rail width: 9 mm | Length: 255 mm
SBM09-295L Rail width: 9 mm | Length: 295 mm
SBM09-355L Rail width: 9 mm | Length: 355 mm
SBM09-415L Rail width: 9 mm | Length: 415 mm
SBM09-495L Rail width: 9 mm | Length: 495 mm
SBM09-535L Rail width: 9 mm | Length: 535 mm
SBM09-615L Rail width: 9 mm | Length: 615 mm
SBM09-675L Rail width: 9 mm | Length: 675 mm
SBM09-715L Rail width: 9 mm | Length: 715 mm
SBM09-735L Rail width: 9 mm | Length: 735 mm
SBM09-795L Rail width: 9 mm | Length: 795 mm
SBM09-875L Rail width: 9 mm | Length: 875 mm
SBM09-955L Rail width: 9 mm | Length: 955 mm
SBM09-995L Rail width: 9 mm | Length: 995 mm
SBM09-1035L Rail width: 9 mm | Length: 1035 mm
SBM09-1115L Rail width: 9 mm | Length: 1115 mm
SBM09-1195L Rail width: 9 mm | Length: 1195 mm
SBM12-70L Rail width: 12 mm | Length: 70 mm
SBM12-95L Rail width: 12 mm | Length: 95 mm
SBM12-120L Rail width: 12 mm | Length: 120 mm
SBM12-145L Rail width: 12 mm | Length: 145 mm
SBM12-170L Rail width: 12 mm | Length: 170 mm
SBM12-195L Rail width: 12 mm | Length: 195 mm
SBM12-220L Rail width: 12 mm | Length: 220 mm
SBM12-245L Rail width: 12 mm | Length: 245 mm
SBM12-270L Rail width: 12 mm | Length: 270 mm
SBM12-320L Rail width: 12 mm | Length: 320 mm
SBM12-395L Rail width: 12 mm | Length: 395 mm
SBM12-470L Rail width: 12 mm | Length: 470 mm
SBM12-545L Rail width: 12 mm | Length: 545 mm
SBM12-620L Rail width: 12 mm | Length: 620 mm
SBM12-695L Rail width: 12 mm | Length: 695 mm
SBM12-770L Rail width: 12 mm | Length: 770 mm
SBM12-870L Rail width: 12 mm | Length: 870 mm
SBM12-970L Rail width: 12 mm | Length: 970 mm
SBM12-1020L Rail width: 12 mm | Length: 1020 mm
SBM12-1195L Rail width: 12 mm | Length: 1195 mm
SBM15-70L Rail width: 15 mm | Length: 70 mm
SBM15-110L Rail width: 15 mm | Length: 110 mm
SBM15-150L Rail width: 15 mm | Length: 150 mm
SBM15-190L Rail width: 15 mm | Length: 190 mm
SBM15-230L Rail width: 15 mm | Length: 230 mm
SBM15-270L Rail width: 15 mm | Length: 270 mm
SBM15-310L Rail width: 15 mm | Length: 310 mm
SBM15-350L Rail width: 15 mm | Length: 350 mm
SBM15-390L Rail width: 15 mm | Length: 390 mm
SBM15-430L Rail width: 15 mm | Length: 430 mm
SBM15-470L Rail width: 15 mm | Length: 470 mm
SBM15-590L Rail width: 15 mm | Length: 590 mm
SBM15-670L Rail width: 15 mm | Length: 670 mm
SBM15-830L Rail width: 15 mm | Length: 830 mm
SBM15-910L Rail width: 15 mm | Length: 910 mm
SBM15-990L Rail width: 15 mm | Length: 990 mm
SBM15-1070L Rail width: 15 mm | Length: 1070 mm
SBM15-1190L Rail width: 15 mm | Length: 1190 mm
SBMW09-50L Rail width: 18 mm | Length: 50 mm
SBMW09-80L Rail width: 18 mm | Length: 80 mm
SBMW09-110L Rail width: 18 mm | Length: 110 mm
SBMW09-140L Rail width: 18 mm | Length: 140 mm
SBMW09-170L Rail width: 18 mm | Length: 170 mm
SBMW09-200L Rail width: 18 mm | Length: 200 mm
SBMW09-260L Rail width: 18 mm | Length: 260 mm
SBMW09-320L Rail width: 18 mm | Length: 320 mm
SBMW09-380L Rail width: 18 mm | Length: 380 mm
SBMW09-440L Rail width: 18 mm | Length: 440 mm
SBMW09-500L Rail width: 18 mm | Length: 500 mm
SBMW09-560L Rail width: 18 mm | Length: 560 mm
SBMW09-620L Rail width: 18 mm | Length: 620 mm
SBMW09-680L Rail width: 18 mm | Length: 680 mm
SBMW09-740L Rail width: 18 mm | Length: 740 mm
SBMW09-800L Rail width: 18 mm | Length: 800 mm
SBMW09-860L Rail width: 18 mm | Length: 860 mm
SBMW09-920L Rail width: 18 mm | Length: 920 mm
SBMW09-980L Rail width: 18 mm | Length: 980 mm
SBMW09-1040L Rail width: 18 mm | Length: 1040 mm
SBMW09-1100L Rail width: 18 mm | Length: 1100 mm
SBMW09-1190L Rail width: 18 mm | Length: 1190 mm
SBMW12-70L Rail width: 24 mm | Length: 70 mm
SBMW12-110L Rail width: 24 mm | Length: 110 mm
SBMW12-150L Rail width: 24 mm | Length: 150 mm
SBMW12-190L Rail width: 24 mm | Length: 190 mm
SBMW12-230L Rail width: 24 mm | Length: 230 mm
SBMW12-270L Rail width: 24 mm | Length: 270 mm
SBMW12-350L Rail width: 24 mm | Length: 350 mm
SBMW12-430L Rail width: 24 mm | Length: 430 mm
SBMW12-510L Rail width: 24 mm | Length: 510 mm
SBMW12-590L Rail width: 24 mm | Length: 590 mm
SBMW12-670L Rail width: 24 mm | Length: 670 mm
SBMW12-750L Rail width: 24 mm | Length: 750 mm
SBMW12-830L Rail width: 24 mm | Length: 830 mm
SBMW12-910L Rail width: 24 mm | Length: 910 mm
SBMW12-990L Rail width: 24 mm | Length: 990 mm
SBMW12-1070L Rail width: 24 mm | Length: 1070 mm
SBMW12-1190L Rail width: 24 mm | Length: 1190 mm
SBMW15-110L Rail width: 42 mm | Length: 110 mm
SBMW15-150L Rail width: 42 mm | Length: 150 mm
SBMW15-190L Rail width: 42 mm | Length: 190 mm
SBMW15-230L Rail width: 42 mm | Length: 230 mm
SBMW15-270L Rail width: 42 mm | Length: 270 mm
SBMW15-350L Rail width: 42 mm | Length: 350 mm
SBMW15-430L Rail width: 42 mm | Length: 430 mm
SBMW15-510L Rail width: 42 mm | Length: 510 mm
SBMW15-590L Rail width: 42 mm | Length: 590 mm
SBMW15-670L Rail width: 42 mm | Length: 670 mm
SBMW15-750L Rail width: 42 mm | Length: 750 mm
SBMW15-830L Rail width: 42 mm | Length: 830 mm
SBMW15-910L Rail width: 42 mm | Length: 910 mm
SBMW15-990L Rail width: 42 mm | Length: 990 mm
SBMW15-1070L Rail width: 42 mm | Length: 1070 mm
SBMW15-1190L Rail width: 42 mm | Length: 1190 mm
