SBC SBS Low-Profile Linear Guide Blocks (SL, HL, FV, SV)

SBC SBS Low-Profile Linear Guide Blocks (SL, HL, FV, SV)

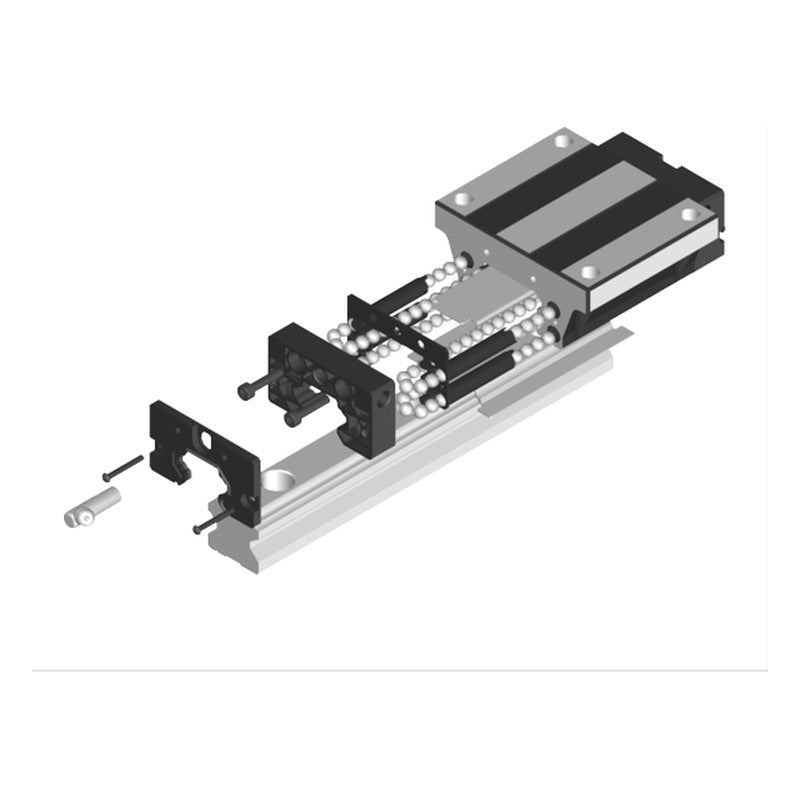

SBC SBS linear guide blocks with reduced assembly height, running on standard SBG rails. Codes include the preload class.

Key features

  • Four-row ball circulation, equal load rating in four directions
  • Standard-size blocks interchangeable on common SBG rails
  • Preload K1, K2, K3 (size 15: K1-K2)
  • Accuracy grades N, H, P
  • Options: side nipple (N), MF container, DD/ZZ/KK seals

Specifications

Ordering e.g. SBS20SL-K1
Brand SBC
Product type Linear Guides
Series SBS
Designations listed 54
Units mm, kN
Source SBC Linear Rail System catalogue, p. 41-55
SBS15SL-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBS15SL-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 60.8 mm | C: 8.33 kN | C0: 13.4 kN
SBS20SL-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBS20SL-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBS20SL-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SBS20SLL-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBS20SLL-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBS20SLL-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SBS25SL-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25SL-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25SL-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25SLL-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS25SLL-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS25SLL-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS30SL-K1 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBS30SL-K2 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBS30SL-K3 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SBS30SLL-K1 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBS30SLL-K2 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBS30SLL-K3 Rail width: 28 mm | H: 42 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SBS35SL-K1 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBS35SL-K2 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBS35SL-K3 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SBS35SLL-K1 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBS35SLL-K2 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBS35SLL-K3 Rail width: 34 mm | H: 48 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SBS45SL-K1 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBS45SL-K2 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBS45SL-K3 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 140.3 mm | C: 61.6 kN | C0: 110.6 kN
SBS45SLL-K1 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBS45SLL-K2 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBS45SLL-K3 Rail width: 45 mm | H: 60 mm | W: 86 mm | L: 172.3 mm | C: 75.5 kN | C0: 138.5 kN
SBS25HL-K1 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25HL-K2 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25HL-K3 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SBS25HLL-K1 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS25HLL-K2 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS25HLL-K3 Rail width: 23 mm | H: 36 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SBS15FV-K1 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 44.9 mm | C: 4.48 kN | C0: 7.23 kN
SBS15FV-K2 Rail width: 15 mm | H: 24 mm | W: 47 mm | L: 44.9 mm | C: 4.48 kN | C0: 7.23 kN
SBS20FV-K1 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS20FV-K2 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS20FV-K3 Rail width: 20 mm | H: 28 mm | W: 63 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS25FV-K1 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
SBS25FV-K2 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
SBS25FV-K3 Rail width: 23 mm | H: 33 mm | W: 70 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
SBS15SV-K1 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 44.9 mm | C: 4.48 kN | C0: 7.23 kN
SBS15SV-K2 Rail width: 15 mm | H: 24 mm | W: 34 mm | L: 44.9 mm | C: 4.48 kN | C0: 7.23 kN
SBS20SV-K1 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS20SV-K2 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS20SV-K3 Rail width: 20 mm | H: 28 mm | W: 44 mm | L: 54.2 mm | C: 7.65 kN | C0: 13.5 kN
SBS25SV-K1 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
SBS25SV-K2 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
SBS25SV-K3 Rail width: 23 mm | H: 33 mm | W: 48 mm | L: 62.6 mm | C: 11.29 kN | C0: 21.1 kN
