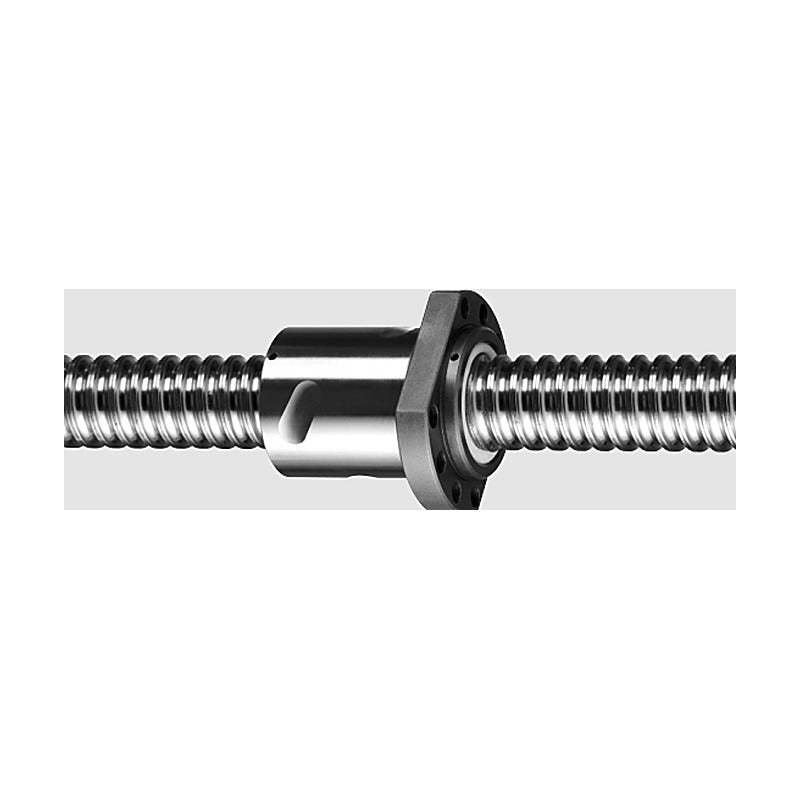

SBC SDK DIN 69051 Rolled Ball Screw Nuts (dia 16-80 mm)

SBC SDK standard-lead flanged ball nuts to DIN 69051 for precision rolled ball screws.

Key features

Built to DIN 69051 dimensions
Rolled screw shaft with polished surface, lead accuracy up to P3
Nut ball tracks fully ground for smooth running
Nut-only orders ship without preload; combined orders with preload A
Stock-supported range for fast delivery

Specifications

Nut type	DIN 69051 flanged, standard lead
Brand	SBC
Product type	Ball Screws
Series	SDK DIN 69051
Designations listed	12
Units	mm, kN
Source	SBC Ball Screw catalogue, p. 29-31

SDK1605		d1: 15.6 mm \| Lead: 5 mm \| Nut dia: 28 mm \| Nut length: 48.5 mm \| Ca: 9.5 kN \| C0a: 10.9 kN
SDK2005		d1: 19.6 mm \| Lead: 5 mm \| Nut dia: 36 mm \| Nut length: 48.5 mm \| Ca: 11.5 kN \| C0a: 15.5 kN
SDK2010		d1: 19.9 mm \| Lead: 10 mm \| Nut dia: 36 mm \| Nut length: 69 mm \| Ca: 13.6 kN \| C0a: 19 kN
SDK2505		d1: 24.6 mm \| Lead: 5 mm \| Nut dia: 40 mm \| Nut length: 49 mm \| Ca: 13.1 kN \| C0a: 20.2 kN
SDK2510		d1: 24.6 mm \| Lead: 10 mm \| Nut dia: 40 mm \| Nut length: 80 mm \| Ca: 19 kN \| C0a: 38 kN
SDK3205		d1: 31.6 mm \| Lead: 5 mm \| Nut dia: 50 mm \| Nut length: 57 mm \| Ca: 19.3 kN \| C0a: 36.3 kN
SDK3210		d1: 31.6 mm \| Lead: 10 mm \| Nut dia: 50 mm \| Nut length: 73 mm \| Ca: 26.4 kN \| C0a: 39 kN
SDK4005		d1: 39.6 mm \| Lead: 5 mm \| Nut dia: 63 mm \| Nut length: 66 mm \| Ca: 26.3 kN \| C0a: 59.2 kN
SDK4010		d1: 39.6 mm \| Lead: 10 mm \| Nut dia: 63 mm \| Nut length: 88.5 mm \| Ca: 64.9 kN \| C0a: 109 kN
SDK5010		d1: 49.5 mm \| Lead: 10 mm \| Nut dia: 75 mm \| Nut length: 92 mm \| Ca: 66.4 kN \| C0a: 134.3 kN
SDK6310		d1: 62.5 mm \| Lead: 10 mm \| Nut dia: 90 mm \| Nut length: 103.5 mm \| Ca: 93.8 kN \| C0a: 229.7 kN
SDK8010		d1: 79.5 mm \| Lead: 10 mm \| Nut dia: 105 mm \| Nut length: 121 mm \| Ca: 121.9 kN \| C0a: 374.9 kN

Ball ScrewsSBC

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC SDK DIN 69051 Rolled Ball Screw Nuts (dia 16-80 mm)

Brand SBC·Ball Screws

Available part numbers (12)

SDK1605, SDK2005, SDK2010, SDK2505, SDK2510, SDK3205, SDK3210, SDK4005, SDK4010, SDK5010 + 2 more — see full table ↓

How to order

Send the SBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
