SBC SH Bellows for SBI, SBG and SBS Linear Guides

SBC SH bellows covers that protect linear guide rails from chips and dust; SH..A/DA types for SBI, SH types for SBG/SBS/SPG/SPS.

Key features

Folding bellows cover for the rail between blocks
SH..DA types have a lower height than SH..A
Rail end machining required, specify when ordering
Order with minimum and maximum length, e.g. SH20A-70/420
Side-nipple blocks recommended for greasing with bellows

Specifications

Ordering	Model - min. length / max. length
Brand	SBC
Product type	Bearing Accessories
Series	SH
Designations listed	20
Units	mm
Source	SBC Linear Rail System catalogue, p. 29, 45

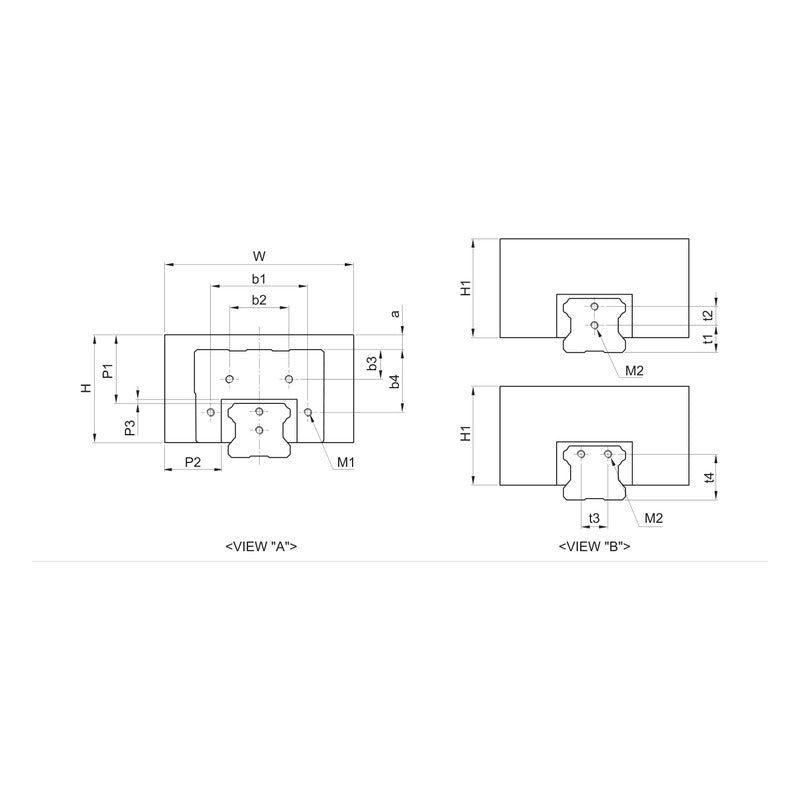

SH15A		For: SBI15 \| W: 50 mm \| H: 25 mm \| H1: 25 mm
SH15DA		For: SBI15 \| W: 50 mm \| H: 20 mm \| H1: 20 mm
SH20A		For: SBI20 \| W: 60 mm \| H: 29 mm \| H1: 31 mm
SH20DA		For: SBI20 \| W: 60 mm \| H: 24 mm \| H1: 26 mm
SH25A		For: SBI25 \| W: 70 mm \| H: 35 mm \| H1: 35 mm
SH25DA		For: SBI25 \| W: 70 mm \| H: 30 mm \| H1: 30 mm
SH30A		For: SBI30 \| W: 80 mm \| H: 36 mm \| H1: 36 mm
SH30DA		For: SBI30 \| W: 80 mm \| H: 33 mm \| H1: 33 mm
SH35DA		For: SBI35 \| W: 85 mm \| H: 39 mm \| H1: 39 mm
SH45DA		For: SBI45 \| W: 100 mm \| H: 48 mm \| H1: 48 mm
SH55DA		For: SBI55 \| W: 110 mm \| H: 56 mm \| H1: 56 mm
SH65DA		For: SBI65 \| W: 130 mm \| H: 69 mm \| H1: 69 mm
SH15		For: SBG(S)15 \| W: 55 mm \| H: 27 mm \| H1: 27 mm
SH20		For: SBG(S)20 \| W: 66 mm \| H: 32 mm \| H1: 32 mm
SH25		For: SBG(S)25 \| W: 78 mm \| H: 38 mm \| H1: 38 mm
SH30		For: SBG(S)30 \| W: 84 mm \| H: 42 mm \| H1: 42 mm
SH35		For: SBG(S)35 \| W: 88 mm \| H: 43 mm \| H1: 43 mm
SH45		For: SBG(S)45 \| W: 100 mm \| H: 50 mm \| H1: 55 mm
SH55		For: SBG55 \| W: 108 mm \| H: 55.5 mm \| H1: 55.5 mm
SH65		For: SBG65 \| W: 132 mm \| H: 71.5 mm \| H1: 71.5 mm

Bearing AccessoriesSBC

20 product codes available in this family
