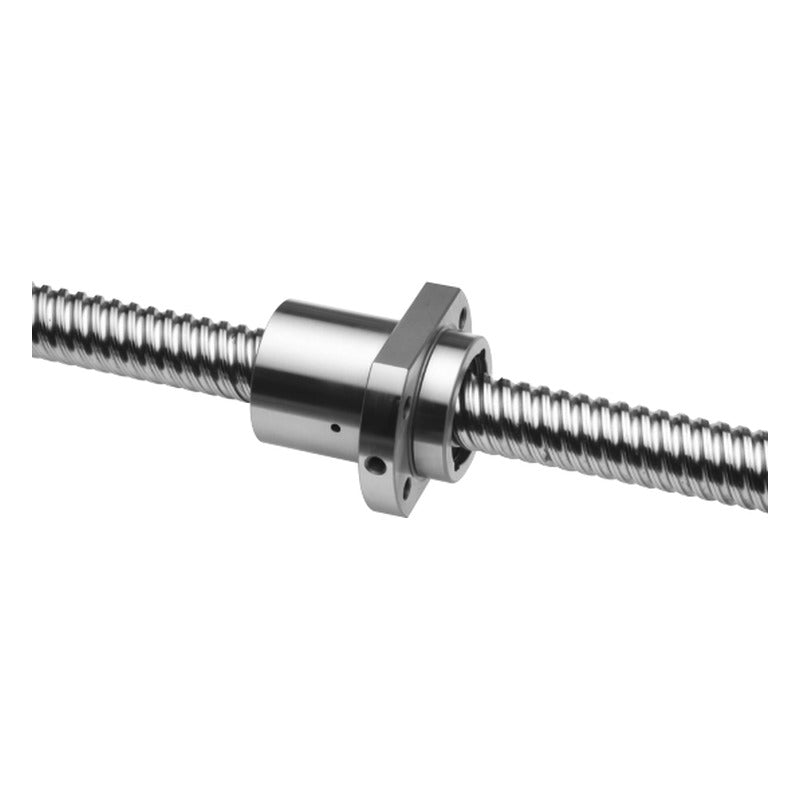

SBC SLK/SLKN High-Lead Rolled Ball Screw Nuts (dia 15-50 mm)

SBC SLK/SLKN High-Lead Rolled Ball Screw Nuts (dia 15-50 mm)

SBC SLK and SLKN flanged ball nuts for precision rolled ball screws with high leads from 10 to 50 mm.

Key features

  • Precision rolled screw shaft with ground-finish ball nut
  • Flanged nut with lubrication hole
  • Nut-only orders ship without preload (S)
  • Combined screw and nut orders available with preload (A) and surface coating (R)
  • Leads from 10 to 50 mm for fast traverse

Specifications

Nut type Flanged, high lead
Brand SBC
Product type Ball Screws
Series SLK/SLKN
Designations listed 12
Units mm, kN
Source SBC Ball Screw catalogue, p. 25, 27
SLK1520 d1: 15 mm | Lead: 20 mm | Nut dia: 34 mm | Nut length: 57 mm | Ca: 4.56 kN | C0a: 7.23 kN
SLK1610 d1: 15.9 mm | Lead: 10 mm | Nut dia: 34 mm | Nut length: 48 mm | Ca: 7 kN | C0a: 12 kN
SLKN1616 d1: 15.9 mm | Lead: 16 mm | Nut dia: 32 mm | Nut length: 48 mm | Ca: 7.1 kN | C0a: 14 kN
SLKN2010 d1: 20 mm | Lead: 10 mm | Nut dia: 46 mm | Nut length: 54 mm | Ca: 12.2 kN | C0a: 15.2 kN
SLK2020 d1: 19.6 mm | Lead: 20 mm | Nut dia: 39 mm | Nut length: 55 mm | Ca: 11.5 kN | C0a: 17.5 kN
SLK2525 d1: 24.6 mm | Lead: 25 mm | Nut dia: 47 mm | Nut length: 64 mm | Ca: 13 kN | C0a: 22.6 kN
SLK3220 d1: 32 mm | Lead: 20 mm | Nut dia: 50 mm | Nut length: 78 mm | Ca: 20.9 kN | C0a: 57.7 kN
SLKN3232 d1: 32 mm | Lead: 32 mm | Nut dia: 58 mm | Nut length: 82 mm | Ca: 17.2 kN | C0a: 53.9 kN
SLK4020 d1: 39.6 mm | Lead: 20 mm | Nut dia: 63 mm | Nut length: 82 mm | Ca: 52.2 kN | C0a: 103.6 kN
SLK4040 d1: 39.6 mm | Lead: 40 mm | Nut dia: 73 mm | Nut length: 99 mm | Ca: 59.7 kN | C0a: 108.9 kN
SLK5020 d1: 49.5 mm | Lead: 20 mm | Nut dia: 75 mm | Nut length: 120 mm | Ca: 78.8 kN | C0a: 188.7 kN
SLK5050 d1: 50 mm | Lead: 50 mm | Nut dia: 90 mm | Nut length: 123 mm | Ca: 50 kN | C0a: 135.3 kN
Ball ScrewsSBC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC SLK/SLKN High-Lead Rolled Ball Screw Nuts (dia 15-50 mm)

Brand SBC·Ball Screws

Available part numbers (12)

SLK1520, SLK1610, SLKN1616, SLKN2010, SLK2020, SLK2525, SLK3220, SLKN3232, SLK4020, SLK4040 + 2 more — see full table ↓
