SBC SPG Low-Noise Spacer Linear Guide Blocks (FL, SL)

SBC SPG Low-Noise Spacer Linear Guide Blocks (FL, SL)

SBC SPG low-noise linear guide blocks with ball spacers, dimensionally identical to SBG blocks. Codes include the preload class.

Key features

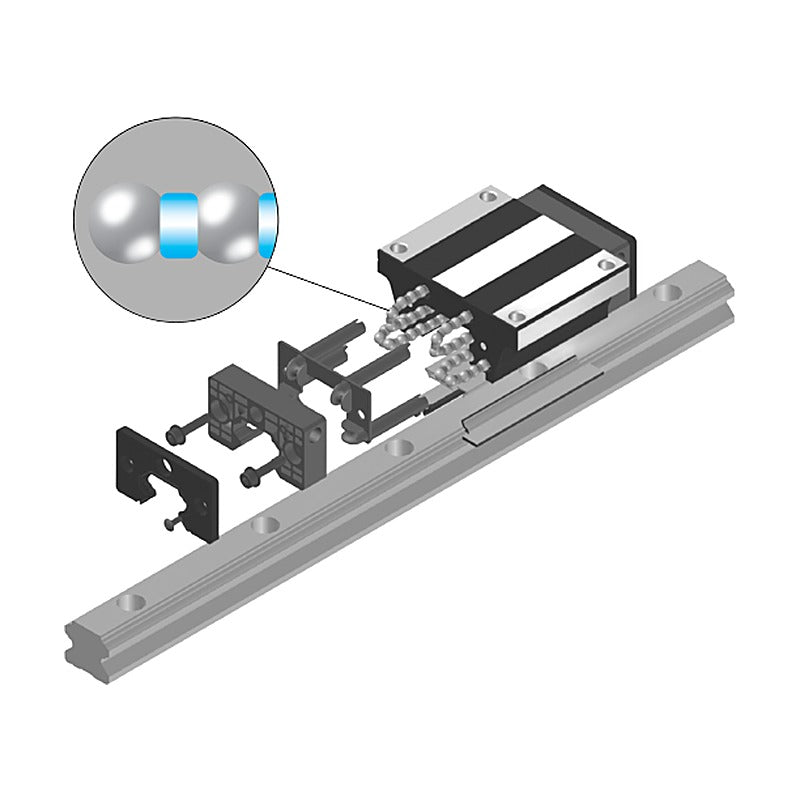

  • Ball spacers between balls reduce noise and improve smoothness
  • Same dimensions as the matching SBG/SBS block
  • Runs on standard SBG rails
  • Preload K1, K2, K3
  • Accuracy grades N, H, P

Specifications

Ordering e.g. SPG20FL-K1
Brand SBC
Product type Linear Guides
Series SPG
Designations listed 48
Units mm, kN
Source SBC Linear Rail System catalogue, p. 49, 56-59
SPG20FL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20FL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20FL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20FLL-K1 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG20FLL-K2 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG20FLL-K3 Rail width: 20 mm | H: 30 mm | W: 63 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG25FL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25FL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25FL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25FLL-K1 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG25FLL-K2 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG25FLL-K3 Rail width: 23 mm | H: 36 mm | W: 70 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG30FL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30FL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30FL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30FLL-K1 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG30FLL-K2 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG30FLL-K3 Rail width: 28 mm | H: 42 mm | W: 90 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG35FL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35FL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35FL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35FLL-K1 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SPG35FLL-K2 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SPG35FLL-K3 Rail width: 34 mm | H: 48 mm | W: 100 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SPG20SL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20SL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20SL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 77.2 mm | C: 14.2 kN | C0: 25 kN
SPG20SLL-K1 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG20SLL-K2 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG20SLL-K3 Rail width: 20 mm | H: 30 mm | W: 44 mm | L: 93.2 mm | C: 16.9 kN | C0: 36.5 kN
SPG25SL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25SL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25SL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 86.9 mm | C: 20.9 kN | C0: 39.2 kN
SPG25SLL-K1 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG25SLL-K2 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG25SLL-K3 Rail width: 23 mm | H: 40 mm | W: 48 mm | L: 106.4 mm | C: 24.6 kN | C0: 48 kN
SPG30SL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30SL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30SL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 100 mm | C: 29.2 kN | C0: 53.8 kN
SPG30SLL-K1 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG30SLL-K2 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG30SLL-K3 Rail width: 28 mm | H: 45 mm | W: 60 mm | L: 122.5 mm | C: 35.3 kN | C0: 67.9 kN
SPG35SL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35SL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35SL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 112.6 mm | C: 38.8 kN | C0: 68.6 kN
SPG35SLL-K1 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SPG35SLL-K2 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
SPG35SLL-K3 Rail width: 34 mm | H: 55 mm | W: 70 mm | L: 138.1 mm | C: 46 kN | C0: 90.4 kN
