SBC ZG Flangeless Threaded Rolled Ball Screw Nuts (dia 12-80)

SBC ZG Flangeless Threaded Rolled Ball Screw Nuts (dia 12-80)

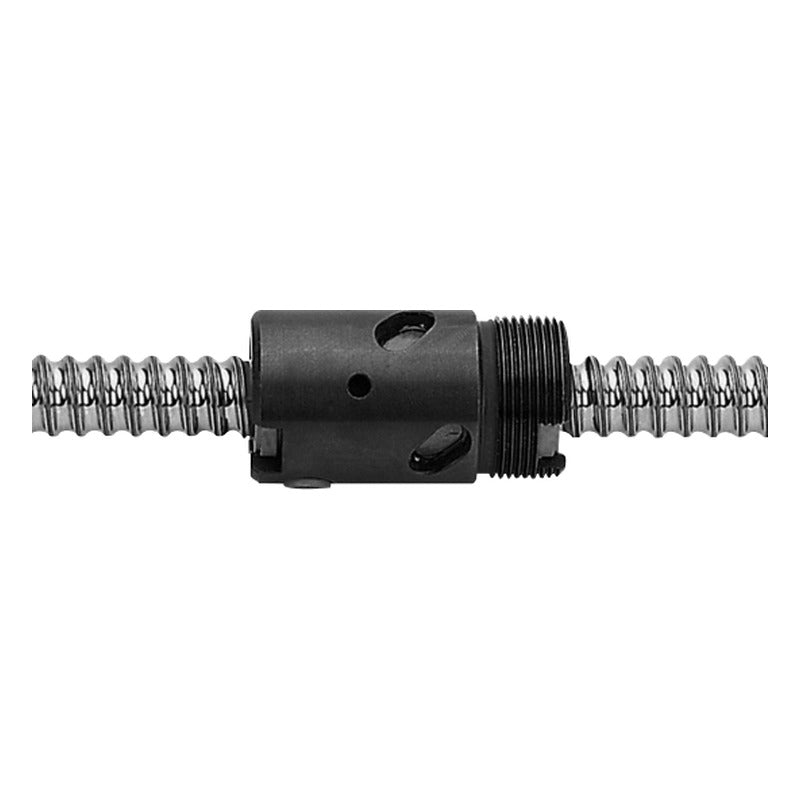

SBC ZG cylindrical ball nuts without flange, fixed by an external thread, for precision rolled ball screws.

Key features

  • Cylindrical nut body with external fixing thread
  • Seal fitted on the nut
  • Compact mounting where no flange space is available
  • Shaft diameters from 11.6 to 79.5 mm
  • Nut-only orders ship without preload

Specifications

Nut type Flangeless, threaded
Brand SBC
Product type Ball Screws
Series ZG
Designations listed 12
Units mm, kN
Source SBC Ball Screw catalogue, p. 33-34, 37
ZG1204 d1: 11.6 mm | Lead: 4 mm | Nut dia: 25.5 mm | Thread: M20x1.0 | Ca: 3.5 kN | C0a: 4 kN
ZG1605 d1: 15.6 mm | Lead: 5 mm | Nut dia: 32 mm | Thread: M30x1.5 | Ca: 12.1 kN | C0a: 14.5 kN
ZG2005 d1: 19.6 mm | Lead: 5 mm | Nut dia: 38 mm | Thread: M35x1.5 | Ca: 14.8 kN | C0a: 20.7 kN
ZG2505 d1: 24.6 mm | Lead: 5 mm | Nut dia: 42 mm | Thread: M40x1.5 | Ca: 20.4 kN | C0a: 33.7 kN
ZG2510 d1: 24.6 mm | Lead: 10 mm | Nut dia: 42 mm | Thread: M40x1.5 | Ca: 19.9 kN | C0a: 31.8 kN
ZG3205 d1: 31.6 mm | Lead: 5 mm | Nut dia: 52 mm | Thread: M48x1.5 | Ca: 23.3 kN | C0a: 45.5 kN
ZG3210 d1: 31.6 mm | Lead: 10 mm | Nut dia: 52 mm | Thread: M48x1.5 | Ca: 33.8 kN | C0a: 52 kN
ZG4005 d1: 39.6 mm | Lead: 5 mm | Nut dia: 58 mm | Thread: M56x1.5 | Ca: 26.3 kN | C0a: 59.2 kN
ZG4010 d1: 39.6 mm | Lead: 10 mm | Nut dia: 65 mm | Thread: M60x2.0 | Ca: 78.6 kN | C0a: 136.2 kN
ZG5010 d1: 49.5 mm | Lead: 10 mm | Nut dia: 78 mm | Thread: M72x2.0 | Ca: 97.8 kN | C0a: 213.2 kN
ZG6310 d1: 62.5 mm | Lead: 10 mm | Nut dia: 92 mm | Thread: M85x2.0 | Ca: 109.7 kN | C0a: 275.6 kN
ZG8010 d1: 79.5 mm | Lead: 10 mm | Nut dia: 120 mm | Thread: M110x2.0 | Ca: 121.9 kN | C0a: 375 kN
