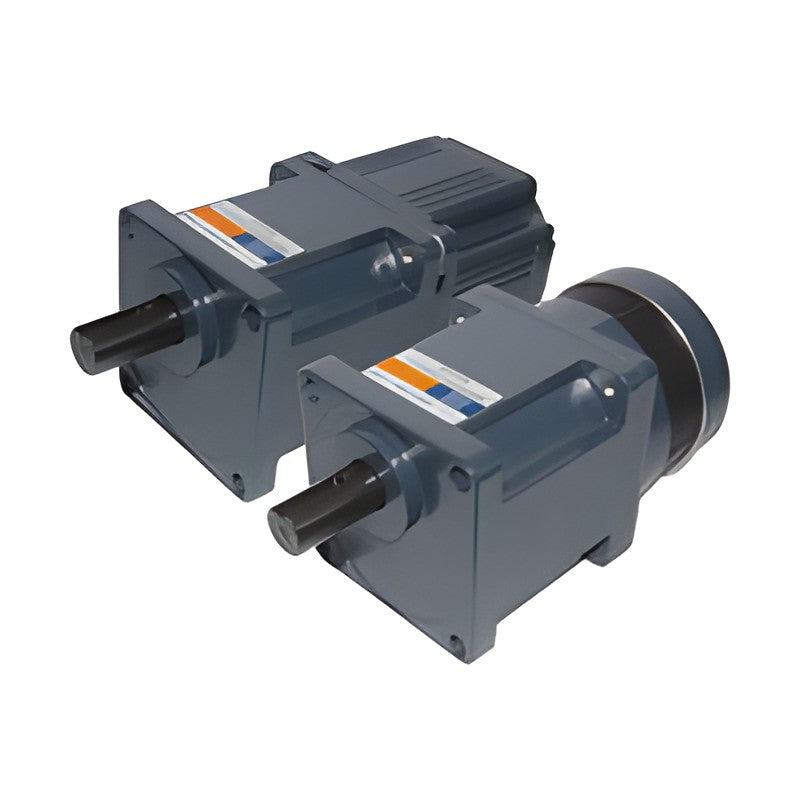

Sewoo BG BLDC Geared Motors (60-90 mm, 10-200 W, 1:3-1:200)

Sewoo BG BLDC Geared Motors (60-90 mm, 10-200 W, 1:3-1:200)

Sewoo BG series combine a pinion-shaft brushless DC motor with a parallel-shaft gearhead in 60, 80 and 90 mm frames. Gear ratios from 1:3 to 1:200 are available, with standard (KC) and heavy-duty (KH) gearheads in the 90 mm size.

Key features

  • Gear ratios 1:3 to 1:200
  • 60, 80 and 90 mm frames, 10 W to 200 W motors
  • 90 mm KC (65.5 mm) and heavy-duty KH (85 mm) gearheads
  • DC 12/24 V and AC 220 V winding versions
  • Matched to Sewoo SBDM and SBDSM BLDC drivers
  • Encoder or brake can be fitted on request

Specifications

Motor type Brushless DC geared motor
Frame sizes 60, 80, 90 mm square
Gear ratio 1:3 to 1:200
Gearhead length 60 mm: 30/40 mm; 80 mm: 32/42.5 mm; 90 mm: 65.5 (KC) / 85 (KH) mm
Output shaft 60 mm: 8 mm; 80 mm: 10 mm; 90 mm KH: 18 mm
Rated output 10 to 200 W
Supply DC 12 V, DC 24 V, AC 220 V (via driver)
Lead wire 500 mm
Source Sewoo BLDC Motor drawings (BG60, BG80, BG90)
BG60 N012010 Rated: DC 12 V, 10 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024020 Rated: DC 24 V, 20 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220040 Rated: AC 220 V, 40 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG60 N012015 Rated: DC 12 V, 15 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024040 Rated: DC 24 V, 40 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220060 Rated: AC 220 V, 60 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG60 N012020 Rated: DC 12 V, 20 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024050 Rated: DC 24 V, 50 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220080 Rated: AC 220 V, 80 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012025 Rated: DC 12 V, 25 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024040 Rated: DC 24 V, 40 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220060 Rated: AC 220 V, 60 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012040 Rated: DC 12 V, 40 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024060 Rated: DC 24 V, 60 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220080 Rated: AC 220 V, 80 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012060 Rated: DC 12 V, 60 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024080 Rated: DC 24 V, 80 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220100 Rated: AC 220 V, 100 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012040 Rated: DC 12 V, 40 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024050 Rated: DC 24 V, 50 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220100 Rated: AC 220 V, 100 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012060 Rated: DC 12 V, 60 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024100 Rated: DC 24 V, 100 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220150 Rated: AC 220 V, 150 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012070 Rated: DC 12 V, 70 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024150 Rated: DC 24 V, 150 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220200 Rated: AC 220 V, 200 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KH N220150 Rated: AC 220 V, 150 W | Motor length L: 67.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KH N012070 Rated: DC 12 V, 70 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDM series
BG90 KH N024150 Rated: DC 24 V, 150 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDM series
BG90 KH N220200 Rated: AC 220 V, 200 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDSM series
BLDC MotorsSewoo
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sewoo BG BLDC Geared Motors (60-90 mm, 10-200 W, 1:3-1:200)

Brand Sewoo·BLDC Motors

Available part numbers (31)

BG60 N012010, BG60 N024020, BG60 N220040, BG60 N012015, BG60 N024040, BG60 N220060, BG60 N012020, BG60 N024050, BG60 N220080, BG80 N012025 + 21 more — see full table ↓

How to order

Send the Sewoo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BG60 N012010Rated: DC 12 V, 10 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024020Rated: DC 24 V, 20 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220040Rated: AC 220 V, 40 W | Motor length L: 60 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG60 N012015Rated: DC 12 V, 15 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024040Rated: DC 24 V, 40 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220060Rated: AC 220 V, 60 W | Motor length L: 70 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG60 N012020Rated: DC 12 V, 20 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N024050Rated: DC 24 V, 50 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG60 N220080Rated: AC 220 V, 80 W | Motor length L: 80 mm | Frame: 60 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012025Rated: DC 12 V, 25 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024040Rated: DC 24 V, 40 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220060Rated: AC 220 V, 60 W | Motor length L: 52.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012040Rated: DC 12 V, 40 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024060Rated: DC 24 V, 60 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220080Rated: AC 220 V, 80 W | Motor length L: 62.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG80 N012060Rated: DC 12 V, 60 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N024080Rated: DC 24 V, 80 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDM series
BG80 N220100Rated: AC 220 V, 100 W | Motor length L: 72.7 mm | Frame: 80 mm, gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012040Rated: DC 12 V, 40 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024050Rated: DC 24 V, 50 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220100Rated: AC 220 V, 100 W | Motor length L: 57.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012060Rated: DC 12 V, 60 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024100Rated: DC 24 V, 100 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220150Rated: AC 220 V, 150 W | Motor length L: 67.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KC N012070Rated: DC 12 V, 70 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N024150Rated: DC 24 V, 150 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDM series
BG90 KC N220200Rated: AC 220 V, 200 W | Motor length L: 77.5 mm | Frame: 90 mm, KC gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KH N220150Rated: AC 220 V, 150 W | Motor length L: 67.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDSM series
BG90 KH N012070Rated: DC 12 V, 70 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDM series
BG90 KH N024150Rated: DC 24 V, 150 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDM series
BG90 KH N220200Rated: AC 220 V, 200 W | Motor length L: 77.5 mm | Frame: 90 mm, KH gearhead 1:3-1:200 | Driver: SBDSM series
