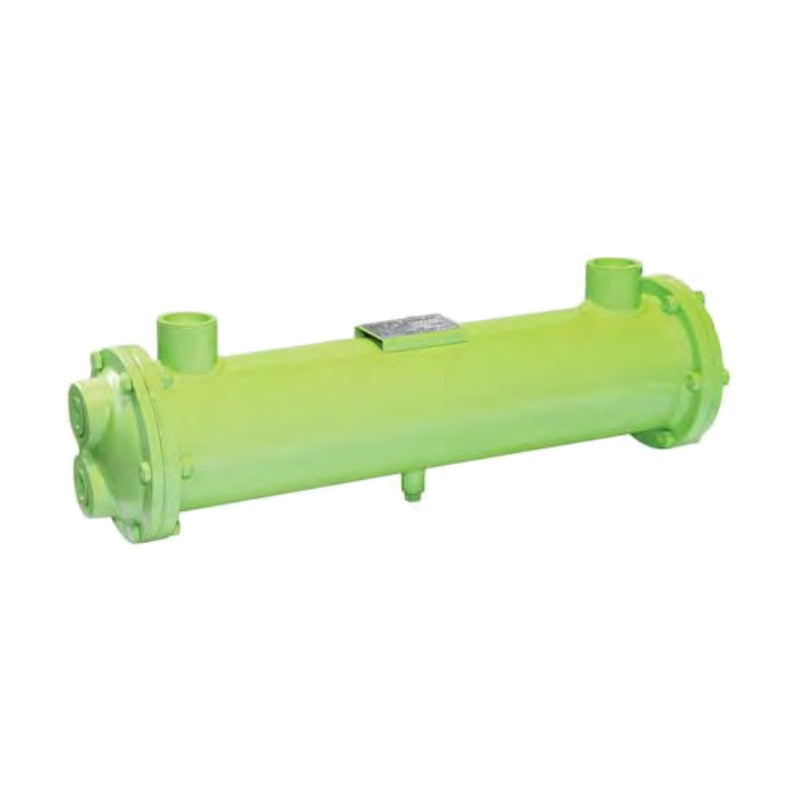

SHC HF Oil Cooler (300A to 500A shells)

SHC HF Oil Cooler (300A to 500A shells)

HF large shell-and-tube oil coolers for fresh water service with 300A to 500A shells.

Key features

  • Shells 300A (12 in) to 500A (20 in)
  • Max. working pressure 7 bar
  • 12.7 mm tubes (9.52 / 15.88 options)
  • JIS 10K flanges

Specifications

Max. working pressure 7 bar
Tube Dia 12.7 mm standard
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Oil Cooler
Series HF
Source SHC E-Catalog 2018 V1.0, p.78
HF-12100F-11 Shell: 300A (12 in) | A: 1368 mm | Oil port: 3B | Weight: 320 kg
HF-12150F-11 Shell: 300A (12 in) | A: 1828 mm | Oil port: 3B | Weight: 380 kg
HF-12200F-11 Shell: 300A (12 in) | A: 2298 mm | Oil port: 3B | Weight: 440 kg
HF-12250F-11 Shell: 300A (12 in) | A: 2768 mm | Oil port: 3B | Weight: 500 kg
HF-12300F-11 Shell: 300A (12 in) | A: 3228 mm | Oil port: 3B | Weight: 560 kg
HF-12350F-11 Shell: 300A (12 in) | A: 3698 mm | Oil port: 3B | Weight: 620 kg
HF-12400F-11 Shell: 300A (12 in) | A: 4158 mm | Oil port: 3B | Weight: 680 kg
HF-14150F-11 Shell: 350A (14 in) | A: 1533 mm | Oil port: 3B | Weight: 400 kg
HF-14200F-11 Shell: 350A (14 in) | A: 1913 mm | Oil port: 3B | Weight: 470 kg
HF-14250F-11 Shell: 350A (14 in) | A: 2293 mm | Oil port: 3B | Weight: 530 kg
HF-14300F-11 Shell: 350A (14 in) | A: 2673 mm | Oil port: 3B | Weight: 600 kg
HF-14350F-11 Shell: 350A (14 in) | A: 3063 mm | Oil port: 3B | Weight: 660 kg
HF-14400F-11 Shell: 350A (14 in) | A: 3443 mm | Oil port: 3B | Weight: 730 kg
HF-14450F-11 Shell: 350A (14 in) | A: 3823 mm | Oil port: 3B | Weight: 790 kg
HF-16200F-11 Shell: 400A (16 in) | A: 1642 mm | Oil port: 4B | Weight: 550 kg
HF-16300F-11 Shell: 400A (16 in) | A: 2282 mm | Oil port: 4B | Weight: 690 kg
HF-16400F-11 Shell: 400A (16 in) | A: 2912 mm | Oil port: 4B | Weight: 830 kg
HF-16500F-11 Shell: 400A (16 in) | A: 3542 mm | Oil port: 4B | Weight: 970 kg
HF-16600F-11 Shell: 400A (16 in) | A: 4172 mm | Oil port: 4B | Weight: 1110 kg
HF-16700F-11 Shell: 400A (16 in) | A: 4802 mm | Oil port: 4B | Weight: 1250 kg
HF-18200F-11 Shell: 450A (18 in) | A: 1367 mm | Oil port: 4B | Weight: 590 kg
HF-18300F-11 Shell: 450A (18 in) | A: 1837 mm | Oil port: 4B | Weight: 720 kg
HF-18400F-11 Shell: 450A (18 in) | A: 2317 mm | Oil port: 4B | Weight: 850 kg
HF-18500F-11 Shell: 450A (18 in) | A: 2787 mm | Oil port: 4B | Weight: 980 kg
HF-18600F-11 Shell: 450A (18 in) | A: 3257 mm | Oil port: 4B | Weight: 1100 kg
HF-18700F-11 Shell: 450A (18 in) | A: 3737 mm | Oil port: 4B | Weight: 1230 kg
HF-18800F-11 Shell: 450A (18 in) | A: 4207 mm | Oil port: 4B | Weight: 1360 kg
HF-20300F-11 Shell: 500A (20 in) | A: 1556 mm | Oil port: 4B | Weight: 750 kg
HF-20400F-11 Shell: 500A (20 in) | A: 1936 mm | Oil port: 4B | Weight: 880 kg
HF-20500F-11 Shell: 500A (20 in) | A: 2306 mm | Oil port: 4B | Weight: 1000 kg
HF-20600F-11 Shell: 500A (20 in) | A: 2676 mm | Oil port: 4B | Weight: 1130 kg
HF-20700F-11 Shell: 500A (20 in) | A: 3065 mm | Oil port: 4B | Weight: 1250 kg
HF-20800F-11 Shell: 500A (20 in) | A: 3426 mm | Oil port: 4B | Weight: 1380 kg
HF-20900F-11 Shell: 500A (20 in) | A: 3806 mm | Oil port: 4B | Weight: 1500 kg
HF-201000F-11 Shell: 500A (20 in) | A: 4176 mm | Oil port: 4B | Weight: 1630 kg
HF-201100F-11 Shell: 500A (20 in) | A: 4546 mm | Oil port: 4B | Weight: 1750 kg
Oil CoolerSHC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC HF Oil Cooler (300A to 500A shells)

Brand SHC·Oil Cooler

Available part numbers (36)

HF-12100F-11, HF-12150F-11, HF-12200F-11, HF-12250F-11, HF-12300F-11, HF-12350F-11, HF-12400F-11, HF-14150F-11, HF-14200F-11, HF-14250F-11 + 26 more — see full table ↓
