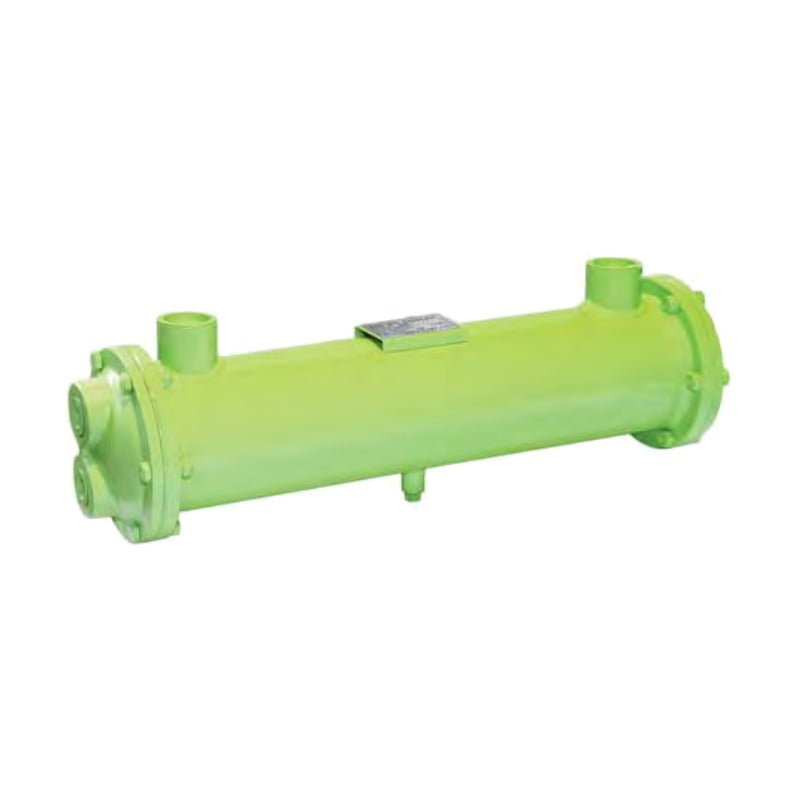

SHC SB / SBF Oil Cooler (sea water)

SHC SB / SBF Oil Cooler (sea water)

SB and SBF shell-and-tube oil coolers use sea-water resistant tubes and tube sheets for ships and offshore plants.

Key features

  • Sea-water resistant tube materials
  • Max. working pressure 7 bar
  • Socket (-S) or flange (-F) oil side
  • All-STS and 4-pass options

Specifications

Max. working pressure 7 bar
Service Sea water
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Oil Cooler
Series SB / SBF
Source SHC E-Catalog 2018 V1.0, p.79
SB-303-S Type: SB (socket water cover) | Oil side: Socket | A: 524 mm | Weight: 16 kg
SB-303-F Type: SB (socket water cover) | Oil side: Flange | A: 524 mm | Weight: 16 kg
SB-304-S Type: SB (socket water cover) | Oil side: Socket | A: 654 mm | Weight: 18 kg
SB-304-F Type: SB (socket water cover) | Oil side: Flange | A: 654 mm | Weight: 18 kg
SB-305-S Type: SB (socket water cover) | Oil side: Socket | A: 784 mm | Weight: 20 kg
SB-305-F Type: SB (socket water cover) | Oil side: Flange | A: 784 mm | Weight: 20 kg
SB-306-S Type: SB (socket water cover) | Oil side: Socket | A: 914 mm | Weight: 22 kg
SB-306-F Type: SB (socket water cover) | Oil side: Flange | A: 914 mm | Weight: 22 kg
SB-307-S Type: SB (socket water cover) | Oil side: Socket | A: 1044 mm | Weight: 24 kg
SB-307-F Type: SB (socket water cover) | Oil side: Flange | A: 1044 mm | Weight: 24 kg
SB-308-S Type: SB (socket water cover) | Oil side: Socket | A: 1174 mm | Weight: 26 kg
SB-308-F Type: SB (socket water cover) | Oil side: Flange | A: 1174 mm | Weight: 26 kg
SB-309-S Type: SB (socket water cover) | Oil side: Socket | A: 1304 mm | Weight: 27 kg
SB-309-F Type: SB (socket water cover) | Oil side: Flange | A: 1304 mm | Weight: 27 kg
SB-310-S Type: SB (socket water cover) | Oil side: Socket | A: 1434 mm | Weight: 30 kg
SB-310-F Type: SB (socket water cover) | Oil side: Flange | A: 1434 mm | Weight: 30 kg
SB-410-S Type: SB (socket water cover) | Oil side: Socket | A: 729 mm | Weight: 31 kg
SB-410-F Type: SB (socket water cover) | Oil side: Flange | A: 729 mm | Weight: 31 kg
SB-412-S Type: SB (socket water cover) | Oil side: Socket | A: 844 mm | Weight: 33 kg
SB-412-F Type: SB (socket water cover) | Oil side: Flange | A: 844 mm | Weight: 33 kg
SB-414-S Type: SB (socket water cover) | Oil side: Socket | A: 959 mm | Weight: 35 kg
SB-414-F Type: SB (socket water cover) | Oil side: Flange | A: 959 mm | Weight: 35 kg
SB-416-S Type: SB (socket water cover) | Oil side: Socket | A: 1074 mm | Weight: 38 kg
SB-416-F Type: SB (socket water cover) | Oil side: Flange | A: 1074 mm | Weight: 38 kg
SB-418-S Type: SB (socket water cover) | Oil side: Socket | A: 1189 mm | Weight: 40 kg
SB-418-F Type: SB (socket water cover) | Oil side: Flange | A: 1189 mm | Weight: 40 kg
SB-420-S Type: SB (socket water cover) | Oil side: Socket | A: 1294 mm | Weight: 42 kg
SB-420-F Type: SB (socket water cover) | Oil side: Flange | A: 1294 mm | Weight: 42 kg
SBF-510-S Type: SBF (flanged water cover) | Oil side: Socket | A: 824 mm | Weight: 52 kg
SBF-510-F Type: SBF (flanged water cover) | Oil side: Flange | A: 824 mm | Weight: 52 kg
SBF-512-S Type: SBF (flanged water cover) | Oil side: Socket | A: 934 mm | Weight: 55 kg
SBF-512-F Type: SBF (flanged water cover) | Oil side: Flange | A: 934 mm | Weight: 55 kg
SBF-514-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1049 mm | Weight: 58 kg
SBF-514-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1049 mm | Weight: 58 kg
SBF-516-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1169 mm | Weight: 60 kg
SBF-516-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1169 mm | Weight: 60 kg
SBF-517-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1279 mm | Weight: 63 kg
SBF-517-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1279 mm | Weight: 63 kg
SBF-520-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1404 mm | Weight: 67 kg
SBF-520-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1404 mm | Weight: 67 kg
SBF-620-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1012 mm | Weight: 71 kg
SBF-620-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1012 mm | Weight: 71 kg
SBF-623-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1122 mm | Weight: 75 kg
SBF-623-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1122 mm | Weight: 75 kg
SBF-625-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1192 mm | Weight: 78 kg
SBF-625-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1192 mm | Weight: 78 kg
SBF-627-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1267 mm | Weight: 81 kg
SBF-627-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1267 mm | Weight: 81 kg
SBF-630-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1372 mm | Weight: 85 kg
SBF-630-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1372 mm | Weight: 85 kg
SBF-840-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1180 mm | Weight: 145 kg
SBF-840-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1180 mm | Weight: 145 kg
SBF-850-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1380 mm | Weight: 155 kg
SBF-850-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1380 mm | Weight: 155 kg
SBF-860-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1580 mm | Weight: 165 kg
SBF-860-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1580 mm | Weight: 165 kg
SBF-870-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1800 mm | Weight: 176 kg
SBF-870-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1800 mm | Weight: 176 kg
SBF-880-S Type: SBF (flanged water cover) | Oil side: Socket | A: 2010 mm | Weight: 187 kg
SBF-880-F Type: SBF (flanged water cover) | Oil side: Flange | A: 2010 mm | Weight: 187 kg
SBF-1080-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1290 mm | Weight: 225 kg
SBF-1080-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1290 mm | Weight: 225 kg
SBF-1090-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1410 mm | Weight: 235 kg
SBF-1090-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1410 mm | Weight: 235 kg
SBF-10100-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1520 mm | Weight: 245 kg
SBF-10100-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1520 mm | Weight: 245 kg
SBF-10120-S Type: SBF (flanged water cover) | Oil side: Socket | A: 1760 mm | Weight: 270 kg
SBF-10120-F Type: SBF (flanged water cover) | Oil side: Flange | A: 1760 mm | Weight: 270 kg
SBF-10140-S Type: SBF (flanged water cover) | Oil side: Socket | A: 2000 mm | Weight: 295 kg
SBF-10140-F Type: SBF (flanged water cover) | Oil side: Flange | A: 2000 mm | Weight: 295 kg
SBF-10160-S Type: SBF (flanged water cover) | Oil side: Socket | A: 2240 mm | Weight: 320 kg
SBF-10160-F Type: SBF (flanged water cover) | Oil side: Flange | A: 2240 mm | Weight: 320 kg
Oil CoolerSHC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SB / SBF Oil Cooler (sea water)

Brand SHC·Oil Cooler

Available part numbers (72)

SB-303-S, SB-303-F, SB-304-S, SB-304-F, SB-305-S, SB-305-F, SB-306-S, SB-306-F, SB-307-S, SB-307-F + 62 more — see full table ↓
