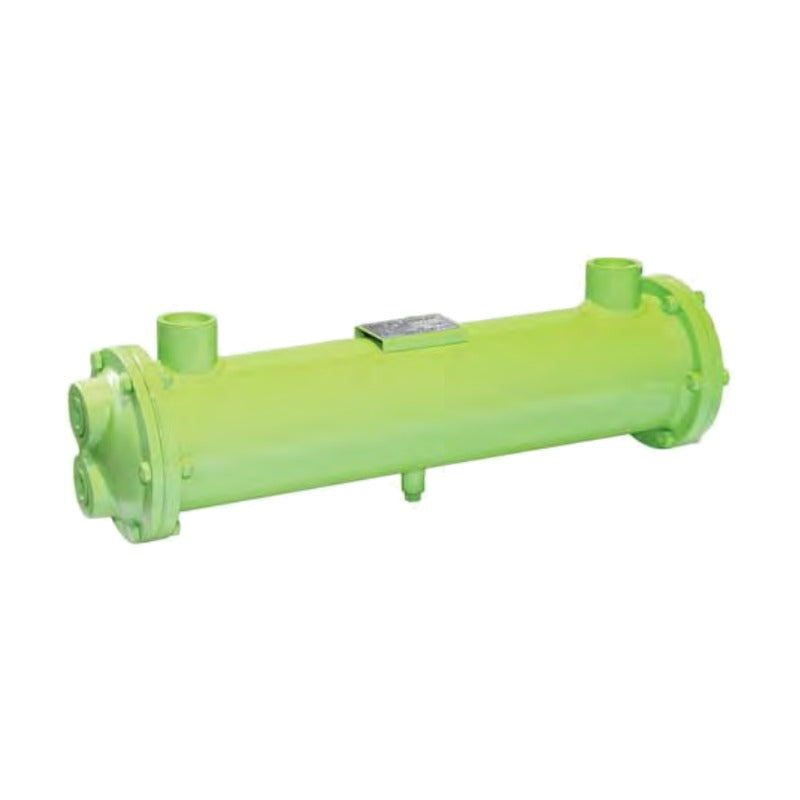

SHC SC / SHT Oil Cooler (fresh water, 510 to 10160)

SHC SC / SHT Oil Cooler (fresh water, 510 to 10160)

SC (socket water cover) and SHT (flanged water cover) shell-and-tube oil coolers for fresh water service, with socket or flange oil connections.

Key features

  • Max. working pressure 7 bar
  • JIS 10K round flanges
  • Options R, NS, AS, L, Z, SP
  • Example code SHT-840-F

Specifications

Max. working pressure 7 bar
Service Fresh water
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Oil Cooler
Series SC / SHT
Source SHC E-Catalog 2018 V1.0, p.74
SC-510-S Type: SC (socket water cover) | Oil side: Socket | A: 740 mm | Weight: 38 kg
SHT-510-S Type: SHT (flanged water cover) | Oil side: Socket | A: 790 mm | Weight: 48 kg
SC-510-F Type: SC (socket water cover) | Oil side: Flange | A: 740 mm | Weight: 38 kg
SHT-510-F Type: SHT (flanged water cover) | Oil side: Flange | A: 790 mm | Weight: 48 kg
SC-512-S Type: SC (socket water cover) | Oil side: Socket | A: 850 mm | Weight: 41 kg
SHT-512-S Type: SHT (flanged water cover) | Oil side: Socket | A: 900 mm | Weight: 51 kg
SC-512-F Type: SC (socket water cover) | Oil side: Flange | A: 850 mm | Weight: 41 kg
SHT-512-F Type: SHT (flanged water cover) | Oil side: Flange | A: 900 mm | Weight: 51 kg
SC-514-S Type: SC (socket water cover) | Oil side: Socket | A: 965 mm | Weight: 44 kg
SHT-514-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1015 mm | Weight: 54 kg
SC-514-F Type: SC (socket water cover) | Oil side: Flange | A: 965 mm | Weight: 44 kg
SHT-514-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1015 mm | Weight: 54 kg
SC-516-S Type: SC (socket water cover) | Oil side: Socket | A: 1085 mm | Weight: 47 kg
SHT-516-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1135 mm | Weight: 57 kg
SC-516-F Type: SC (socket water cover) | Oil side: Flange | A: 1085 mm | Weight: 47 kg
SHT-516-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1135 mm | Weight: 57 kg
SC-518-S Type: SC (socket water cover) | Oil side: Socket | A: 1195 mm | Weight: 50 kg
SHT-518-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1245 mm | Weight: 60 kg
SC-518-F Type: SC (socket water cover) | Oil side: Flange | A: 1195 mm | Weight: 50 kg
SHT-518-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1245 mm | Weight: 60 kg
SC-520-S Type: SC (socket water cover) | Oil side: Socket | A: 1320 mm | Weight: 53 kg
SHT-520-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1370 mm | Weight: 63 kg
SC-520-F Type: SC (socket water cover) | Oil side: Flange | A: 1320 mm | Weight: 53 kg
SHT-520-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1370 mm | Weight: 63 kg
SC-620-S Type: SC (socket water cover) | Oil side: Socket | A: 923 mm | Weight: 59 kg
SHT-620-S Type: SHT (flanged water cover) | Oil side: Socket | A: 983 mm | Weight: 71 kg
SC-620-F Type: SC (socket water cover) | Oil side: Flange | A: 923 mm | Weight: 59 kg
SHT-620-F Type: SHT (flanged water cover) | Oil side: Flange | A: 983 mm | Weight: 71 kg
SC-623-S Type: SC (socket water cover) | Oil side: Socket | A: 1033 mm | Weight: 63 kg
SHT-623-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1093 mm | Weight: 75 kg
SC-623-F Type: SC (socket water cover) | Oil side: Flange | A: 1033 mm | Weight: 63 kg
SHT-623-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1093 mm | Weight: 75 kg
SC-625-S Type: SC (socket water cover) | Oil side: Socket | A: 1103 mm | Weight: 65 kg
SHT-625-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1163 mm | Weight: 77 kg
SC-625-F Type: SC (socket water cover) | Oil side: Flange | A: 1103 mm | Weight: 65 kg
SHT-625-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1163 mm | Weight: 77 kg
SC-627-S Type: SC (socket water cover) | Oil side: Socket | A: 1178 mm | Weight: 68 kg
SHT-627-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1238 mm | Weight: 80 kg
SC-627-F Type: SC (socket water cover) | Oil side: Flange | A: 1178 mm | Weight: 68 kg
SHT-627-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1238 mm | Weight: 80 kg
SC-630-S Type: SC (socket water cover) | Oil side: Socket | A: 1283 mm | Weight: 72 kg
SHT-630-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1343 mm | Weight: 84 kg
SC-630-F Type: SC (socket water cover) | Oil side: Flange | A: 1283 mm | Weight: 72 kg
SHT-630-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1343 mm | Weight: 84 kg
SC-840-S Type: SC (socket water cover) | Oil side: Socket | A: 1065 mm | Weight: 120 kg
SHT-840-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1135 mm | Weight: 135 kg
SC-840-F Type: SC (socket water cover) | Oil side: Flange | A: 1065 mm | Weight: 120 kg
SHT-840-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1135 mm | Weight: 135 kg
SC-850-S Type: SC (socket water cover) | Oil side: Socket | A: 1265 mm | Weight: 130 kg
SHT-850-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1335 mm | Weight: 145 kg
SC-850-F Type: SC (socket water cover) | Oil side: Flange | A: 1265 mm | Weight: 130 kg
SHT-850-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1335 mm | Weight: 145 kg
SC-860-S Type: SC (socket water cover) | Oil side: Socket | A: 1465 mm | Weight: 140 kg
SHT-860-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1535 mm | Weight: 155 kg
SC-860-F Type: SC (socket water cover) | Oil side: Flange | A: 1465 mm | Weight: 140 kg
SHT-860-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1535 mm | Weight: 155 kg
SC-870-S Type: SC (socket water cover) | Oil side: Socket | A: 1585 mm | Weight: 155 kg
SHT-870-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1755 mm | Weight: 170 kg
SC-870-F Type: SC (socket water cover) | Oil side: Flange | A: 1585 mm | Weight: 155 kg
SHT-870-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1755 mm | Weight: 170 kg
SC-880-S Type: SC (socket water cover) | Oil side: Socket | A: 1895 mm | Weight: 170 kg
SHT-880-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1965 mm | Weight: 185 kg
SC-880-F Type: SC (socket water cover) | Oil side: Flange | A: 1895 mm | Weight: 170 kg
SHT-880-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1965 mm | Weight: 185 kg
SC-1080-S Type: SC (socket water cover) | Oil side: Socket | A: 1160 mm | Weight: 180 kg
SHT-1080-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1240 mm | Weight: 199 kg
SC-1080-F Type: SC (socket water cover) | Oil side: Flange | A: 1160 mm | Weight: 180 kg
SHT-1080-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1240 mm | Weight: 199 kg
SC-1090-S Type: SC (socket water cover) | Oil side: Socket | A: 1280 mm | Weight: 195 kg
SHT-1090-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1360 mm | Weight: 214 kg
SC-1090-F Type: SC (socket water cover) | Oil side: Flange | A: 1280 mm | Weight: 195 kg
SHT-1090-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1360 mm | Weight: 214 kg
SC-10100-S Type: SC (socket water cover) | Oil side: Socket | A: 1390 mm | Weight: 205 kg
SHT-10100-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1470 mm | Weight: 224 kg
SC-10100-F Type: SC (socket water cover) | Oil side: Flange | A: 1390 mm | Weight: 205 kg
SHT-10100-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1470 mm | Weight: 224 kg
SC-10120-S Type: SC (socket water cover) | Oil side: Socket | A: 1630 mm | Weight: 230 kg
SHT-10120-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1710 mm | Weight: 249 kg
SC-10120-F Type: SC (socket water cover) | Oil side: Flange | A: 1630 mm | Weight: 230 kg
SHT-10120-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1710 mm | Weight: 249 kg
SC-10140-S Type: SC (socket water cover) | Oil side: Socket | A: 1870 mm | Weight: 255 kg
SHT-10140-S Type: SHT (flanged water cover) | Oil side: Socket | A: 1950 mm | Weight: 274 kg
SC-10140-F Type: SC (socket water cover) | Oil side: Flange | A: 1870 mm | Weight: 255 kg
SHT-10140-F Type: SHT (flanged water cover) | Oil side: Flange | A: 1950 mm | Weight: 274 kg
SC-10160-S Type: SC (socket water cover) | Oil side: Socket | A: 2110 mm | Weight: 280 kg
SHT-10160-S Type: SHT (flanged water cover) | Oil side: Socket | A: 2190 mm | Weight: 299 kg
SC-10160-F Type: SC (socket water cover) | Oil side: Flange | A: 2110 mm | Weight: 280 kg
SHT-10160-F Type: SHT (flanged water cover) | Oil side: Flange | A: 2190 mm | Weight: 299 kg
