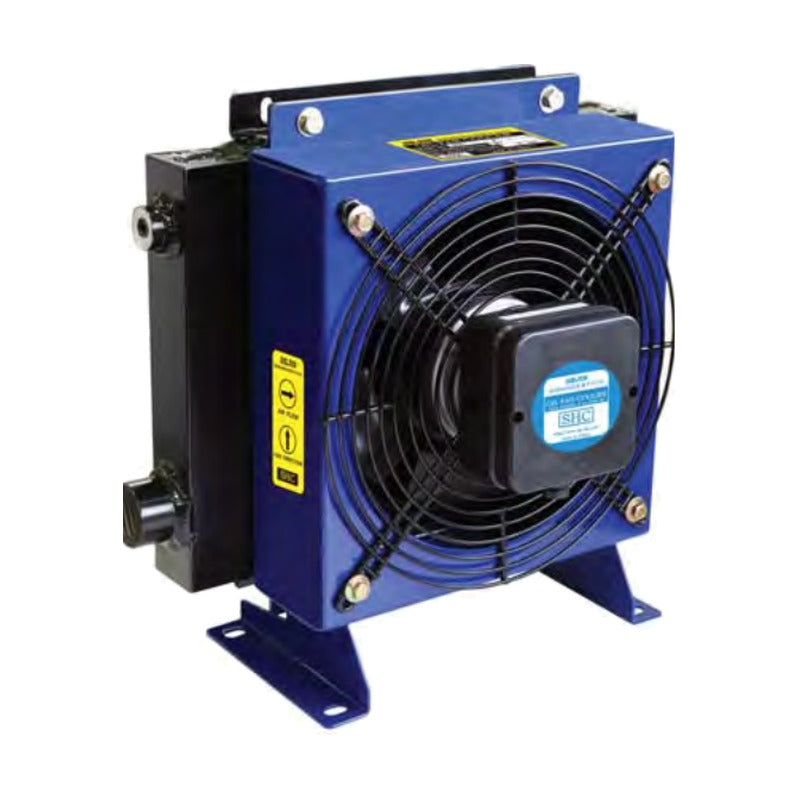

SHC SFR Air-Cooled Oil Cooler (SFR-0060 to SFR-0400)

SHC SFR Air-Cooled Oil Cooler (SFR-0060 to SFR-0400)

SFR oil fan coolers with aluminium matrix radiators for hydraulic oil, lube oil and cutting oil, from 30 to 400 L/min.

Key features

  • Aluminium matrix radiator
  • Max. 15 bar (test 30 bar)
  • In/out ports on both sides
  • Single or three-phase motors

Specifications

Radiator Aluminium matrix
Max. working pressure 15 bar
Max. oil inlet 100 C
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Air-Cooled Oil Cooler
Source SHC E-Catalog 2018 V1.0, p.83
SFR-0060 Thread: PF 3/4 | Fan: dia 200 | Oil flow: 30-85 L/min | Weight: 10 kg
SFR-0100 Thread: PF 1 | Fan: dia 200 | Oil flow: 60-135 L/min | Weight: 14 kg
SFR-0150 Thread: PF 1 | Fan: dia 250 | Oil flow: 80-170 L/min | Weight: 17 kg
SFR-0200 Thread: PF 1 | Fan: dia 300 | Oil flow: 102-230 L/min | Weight: 21 kg
SFR-0300 Thread: PF 1-1/2 | Fan: dia 350 | Oil flow: 139-300 L/min | Weight: 30 kg
SFR-0400 Thread: PF 1-1/2 | Fan: dia 450 | Oil flow: 160-400 L/min | Weight: 50 kg
Air-Cooled Oil CoolerSHC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SFR Air-Cooled Oil Cooler (SFR-0060 to SFR-0400)

Brand SHC·Air-Cooled Oil Cooler

Available part numbers (6)

SFR-0060, SFR-0100, SFR-0150, SFR-0200, SFR-0300, SFR-0400

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFR-0060Thread: PF 3/4 | Fan: dia 200 | Oil flow: 30-85 L/min | Weight: 10 kg
SFR-0100Thread: PF 1 | Fan: dia 200 | Oil flow: 60-135 L/min | Weight: 14 kg
SFR-0150Thread: PF 1 | Fan: dia 250 | Oil flow: 80-170 L/min | Weight: 17 kg
SFR-0200Thread: PF 1 | Fan: dia 300 | Oil flow: 102-230 L/min | Weight: 21 kg
SFR-0300Thread: PF 1-1/2 | Fan: dia 350 | Oil flow: 139-300 L/min | Weight: 30 kg
SFR-0400Thread: PF 1-1/2 | Fan: dia 450 | Oil flow: 160-400 L/min | Weight: 50 kg
