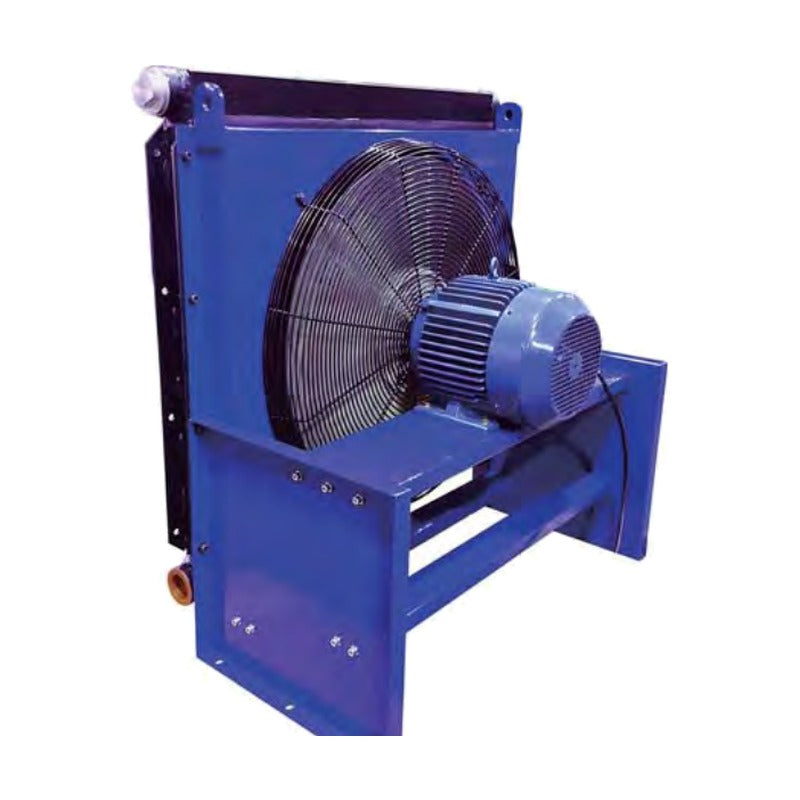

SHC SFR Air-Cooled Oil Cooler (SFR-0700 / SFR-1100)

SHC SFR Air-Cooled Oil Cooler (SFR-0700 / SFR-1100)

Large SFR oil fan coolers with high-efficiency matrix radiators, in 1-pass and 2-pass (W) versions.

Key features

  • High-efficiency matrix radiator
  • 1-pass standard, 2-pass W type
  • Three-phase 220/380/440 V
  • Max. 15 bar

Specifications

Max. working pressure 15 bar
Voltage 3-phase 220/380/440 V
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Air-Cooled Oil Cooler
Series SFR
Source SHC E-Catalog 2018 V1.0, p.84
SFR-0700 Pass: 1-pass | Fan: dia 600 | Oil flow: 100-350 L/min | Weight: 105 kg
SFR-1100 Pass: 1-pass | Fan: dia 750 | Oil flow: 100-500 L/min | Weight: 150 kg
SFR-0700W Pass: 2-pass | Fan: dia 600 | Oil flow: 100-250 L/min | Weight: 105 kg
SFR-1100W Pass: 2-pass | Fan: dia 750 | Oil flow: 100-300 L/min | Weight: 150 kg
Air-Cooled Oil CoolerSHC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SFR Air-Cooled Oil Cooler (SFR-0700 / SFR-1100)

Brand SHC·Air-Cooled Oil Cooler

Available part numbers (4)

SFR-0700, SFR-1100, SFR-0700W, SFR-1100W

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFR-0700Pass: 1-pass | Fan: dia 600 | Oil flow: 100-350 L/min | Weight: 105 kg
SFR-1100Pass: 1-pass | Fan: dia 750 | Oil flow: 100-500 L/min | Weight: 150 kg
SFR-0700WPass: 2-pass | Fan: dia 600 | Oil flow: 100-250 L/min | Weight: 105 kg
SFR-1100WPass: 2-pass | Fan: dia 750 | Oil flow: 100-300 L/min | Weight: 150 kg
