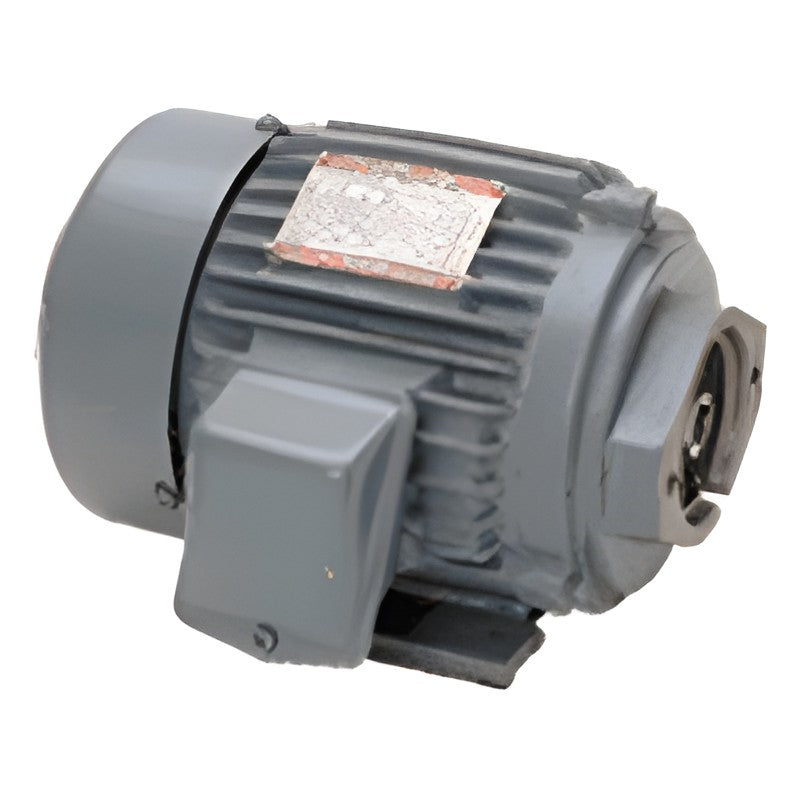

Shinmyung Hydraulic Pump 3-Phase Induction Motors (0.75-3.7 kW)

Shinmyung Electric three-phase induction motors for hydraulic pump units, 0.75 to 3.7 kW in frames 90S to 112M. Supplied with pump-mounting flanges and inch or metric shafts to suit common gear and vane pumps.

Key features

Designed for direct coupling to hydraulic pumps
Several flange and shaft configurations per frame
Inch (15.87/19.05/22.22 mm) and metric shaft options
Ratings 0.75, 1.5, 2.2 and 3.7 kW
Totally enclosed fan-cooled construction

Specifications

Phase	3-phase
Voltage	220, 220/380, 380, 220/440, 440 V
Frequency	60 Hz (50 Hz)
Enclosure	Totally enclosed fan-cooled
Rating	Continuous
Insulation	Class B or F
Ratings	90S 0.75 kW, 90L 1.5 kW, 100L/112S 2.2 kW, 112M 3.7 kW
Source	Shinmyung hydraulic pump motor datasheet

SHINMYUNG HYDRAULIC PUMP MOTOR MADE-TO-ORDER

Output: 0.75-3.7 kW | Frames: 90S-112M | Supply: Built to order

AC Induction MotorsShinmyung

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Shinmyung Hydraulic Pump 3-Phase Induction Motors (0.75-3.7 kW)

Brand Shinmyung·AC Induction Motors

Available part numbers (1)

SHINMYUNG HYDRAULIC PUMP MOTOR MADE-TO-ORDER

How to order

Send the Shinmyung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
