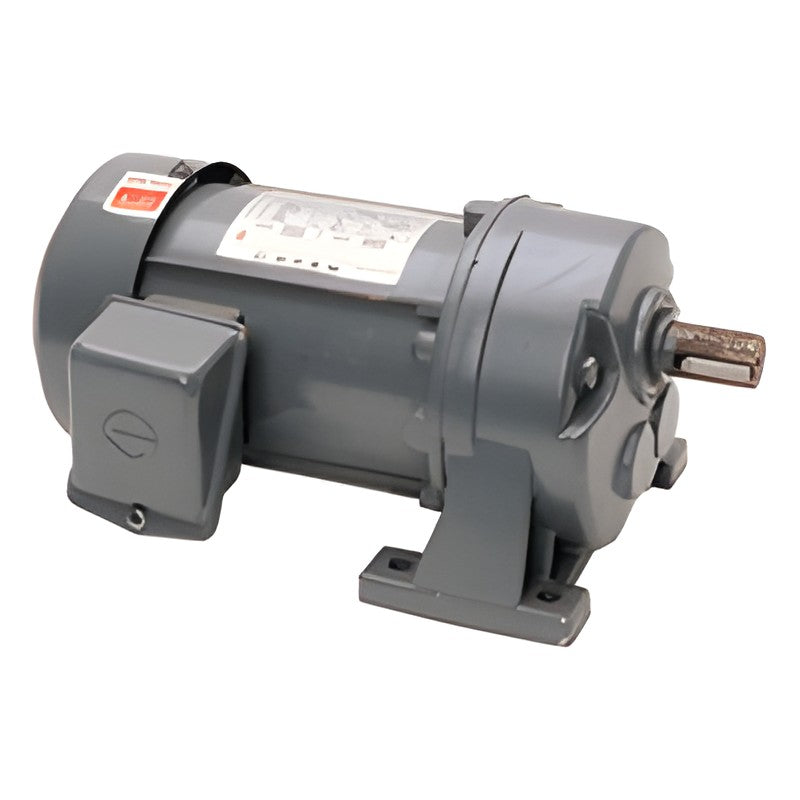

Shinmyung SMG Geared Motors (1-Phase/3-Phase, 0.2-1.5 kW)

Shinmyung SMG Geared Motors (1-Phase/3-Phase, 0.2-1.5 kW)

Shinmyung SMG 4-pole geared motors in single-phase and three-phase versions, standard foot (H/T) and flange (V/T) types, 0.2 to 1.5 kW with ratios 1/5 to 1/100.

Key features

  • Standard horizontal (H/T) and flange (V/T) types
  • Three-phase 0.2-1.5 kW and single-phase 0.2-0.75 kW
  • Gear ratios 1/5-1/75 (1/100 on 0.4 kW size 28)
  • Gear case sizes 22, 28, 32 and 38
  • Ball bearings 6202ZZ-6306ZZ on output and motor

Specifications

Poles / speed 4P, 1800 (1500) rpm
Output 0.2, 0.4, 0.75, 1.5 kW (3-phase); 0.2, 0.75 kW (1-phase)
Ratios 1/5-1/75; 1/5-1/100 (size 28); 1/40-1/75 (size 38, 0.75 kW)
3-phase supply 220, 220/380, 380, 220/440, 440 V
1-phase supply 220 V (110/220 V), 115/230 V, 230 V
Frequency 60 Hz (50 Hz)
Rating Continuous
Insulation Class B or F
Source Shinmyung SMG Geared Motor datasheet
SHINMYUNG SMG 3-PHASE STANDARD MADE-TO-ORDER Output: 0.2-1.5 kW | Mount: Foot (H/T) | Ratio: 1/5-1/100
SHINMYUNG SMG 3-PHASE FLANGE MADE-TO-ORDER Output: 0.2-0.75 kW | Mount: Flange (V/T) | Ratio: 1/5-1/75
SHINMYUNG SMG 1-PHASE STANDARD MADE-TO-ORDER Output: 0.2-0.75 kW | Mount: Foot (H/T) | Ratio: 1/5-1/75
SHINMYUNG SMG 1-PHASE FLANGE MADE-TO-ORDER Output: 0.2-0.75 kW | Mount: Flange (V/T) | Ratio: 1/5-1/75
AC Geared MotorsShinmyung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Shinmyung SMG Geared Motors (1-Phase/3-Phase, 0.2-1.5 kW)

Brand Shinmyung·AC Geared Motors

Available part numbers (4)

SHINMYUNG SMG 3-PHASE STANDARD MADE-TO-ORDER, SHINMYUNG SMG 3-PHASE FLANGE MADE-TO-ORDER, SHINMYUNG SMG 1-PHASE STANDARD MADE-TO-ORDER, SHINMYUNG SMG 1-PHASE FLANGE MADE-TO-ORDER

How to order

Send the Shinmyung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHINMYUNG SMG 3-PHASE STANDARD MADE-TO-ORDEROutput: 0.2-1.5 kW | Mount: Foot (H/T) | Ratio: 1/5-1/100
SHINMYUNG SMG 3-PHASE FLANGE MADE-TO-ORDEROutput: 0.2-0.75 kW | Mount: Flange (V/T) | Ratio: 1/5-1/75
SHINMYUNG SMG 1-PHASE STANDARD MADE-TO-ORDEROutput: 0.2-0.75 kW | Mount: Foot (H/T) | Ratio: 1/5-1/75
SHINMYUNG SMG 1-PHASE FLANGE MADE-TO-ORDEROutput: 0.2-0.75 kW | Mount: Flange (V/T) | Ratio: 1/5-1/75
