Siemens 1LA7 Low-Voltage Induction Motors (0.18-18.5 kW, 63-160)

Siemens 1LA7 Low-Voltage Induction Motors (0.18-18.5 kW, 63-160)

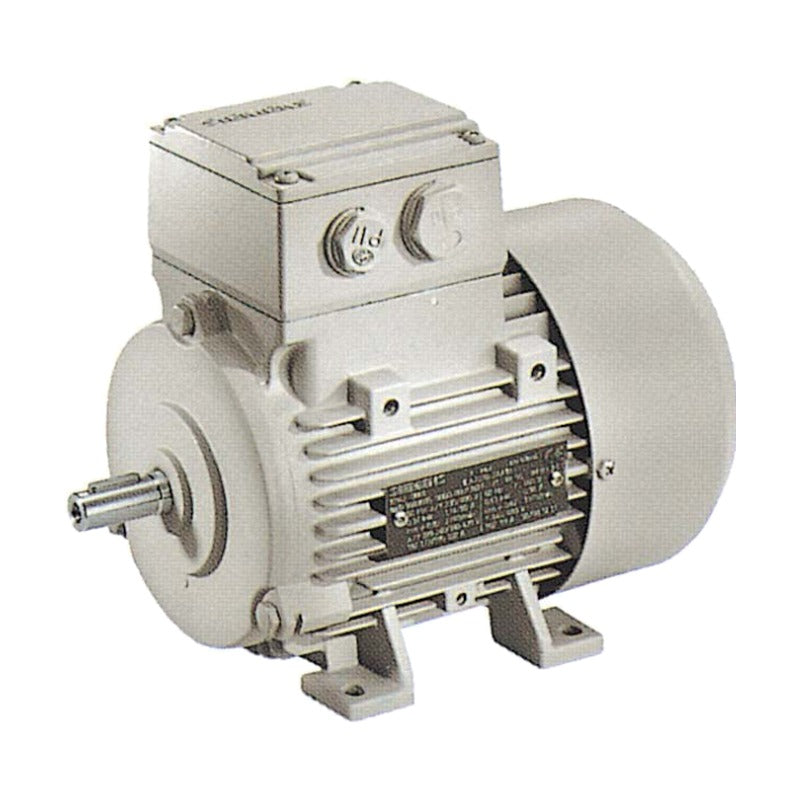

Siemens 1LA7 aluminium-frame low-voltage squirrel-cage induction motors, frame sizes 63 to 160, 0.18 to 18.5 kW in 2, 4, 6 and 8-pole versions. Totally enclosed fan-cooled IP55 motors to IEC/DIN EN standards, suitable for inverter operation.

Key features

  • Aluminium frame sizes 63-160 to DIN EN 50347 / IEC 60072
  • IP55 totally enclosed fan-cooled, class F insulation with class B rise
  • 2, 4, 6 and 8-pole ratings from 0.18 to 18.5 kW
  • Foot (IM B3) or flange (IM B5 / IM V1) mounting by order code
  • Inverter-capable up to 500 V supply

Specifications

Motor type 3-phase squirrel-cage induction motor, TEFC
Enclosure IP55
Insulation Class F, temperature rise class B
Standards IEC 60034, DIN EN 50347
Inverter duty Suitable up to 500 V (rise time > 0.1 us)
Voltage digit (11th) 1: 230D/400Y V 50 Hz, 460Y V 60 Hz; 6: 400D/690Y V 50 Hz, 460D V 60 Hz
Mounting digit (12th) 0: IM B3; 1: IM B5 / IM V1
60 Hz 220/380 V Voltage digit 9 with -Z option L2A/L2B (on request)
Options A11 PTC thermistors, G17 separate fan, K45 anti-condensation heater, G26 brake
Source Siemens Catalogue M17 (60 Hz, 2003/2004) and D 81.1 (2008)
1LA7060-2AA10 Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7060-2AA11 Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7060-2AA60 Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7060-2AA61 Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-2AA10 Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7063-2AA11 Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-2AA60 Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7063-2AA61 Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-2AA10 Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7070-2AA11 Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-2AA60 Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7070-2AA61 Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-2AA10 Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7080-2AA11 Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-2AA60 Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7080-2AA61 Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-2AA10 Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7083-2AA11 Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-2AA60 Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7083-2AA61 Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-2AA10 Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-2AA11 Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-2AA60 Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-2AA61 Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-2AA10 Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-2AA11 Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-2AA60 Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-2AA61 Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-2AA10 Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-2AA11 Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-2AA60 Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-2AA61 Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-2AA10 Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-2AA11 Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-2AA60 Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-2AA61 Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-2AA10 Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-2AA11 Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-2AA60 Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-2AA61 Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7131-2AA10 Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7131-2AA11 Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7131-2AA60 Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7131-2AA61 Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-2AA10 Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-2AA11 Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-2AA60 Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-2AA61 Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-2AA10 Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7164-2AA11 Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-2AA60 Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7164-2AA61 Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-2AA10 Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-2AA11 Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-2AA60 Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-2AA61 Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-4AB10 Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7063-4AB11 Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-4AB60 Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7063-4AB61 Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-4AB10 Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7070-4AB11 Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-4AB60 Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7070-4AB61 Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-4AB10 Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7073-4AB11 Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-4AB60 Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7073-4AB61 Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-4AA10 Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7083-4AA11 Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-4AA60 Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7083-4AA61 Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-4AA10 Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-4AA11 Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-4AA60 Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-4AA61 Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-4AA10 Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-4AA11 Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-4AA60 Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-4AA61 Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-4AA10 Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-4AA11 Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-4AA60 Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-4AA61 Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7107-4AA10 Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7107-4AA11 Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7107-4AA60 Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7107-4AA61 Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-4AA10 Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-4AA11 Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-4AA60 Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-4AA61 Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-4AA10 Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-4AA11 Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-4AA60 Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-4AA61 Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-4AA10 Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7133-4AA11 Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-4AA60 Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7133-4AA61 Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-4AA10 Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-4AA11 Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-4AA60 Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-4AA61 Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-4AA10 Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-4AA11 Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-4AA60 Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-4AA61 Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-6AA10 Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7073-6AA11 Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-6AA60 Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7073-6AA61 Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-6AA10 Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7080-6AA11 Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-6AA60 Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7080-6AA61 Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-6AA10 Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-6AA11 Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-6AA60 Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-6AA61 Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-6AA10 Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-6AA11 Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-6AA60 Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-6AA61 Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-6AA10 Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-6AA11 Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-6AA60 Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-6AA61 Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-6AA10 Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-6AA11 Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-6AA60 Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-6AA61 Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-6AA10 Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-6AA11 Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-6AA60 Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-6AA61 Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-6AA10 Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7133-6AA11 Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-6AA60 Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7133-6AA61 Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7134-6AA10 Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7134-6AA11 Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7134-6AA60 Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7134-6AA61 Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-6AA10 Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-6AA11 Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-6AA60 Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-6AA61 Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-6AA10 Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-6AA11 Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-6AA60 Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-6AA61 Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-8AB10 Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-8AB11 Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-8AB60 Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-8AB61 Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-8AB10 Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7164-8AB11 Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-8AB60 Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7164-8AB61 Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-8AB10 Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-8AB11 Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-8AB60 Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-8AB61 Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
AC Induction MotorsSiemens
164 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 1LA7 Low-Voltage Induction Motors (0.18-18.5 kW, 63-160)

Brand Siemens·AC Induction Motors

Available part numbers (164)

1LA7060-2AA10, 1LA7060-2AA11, 1LA7060-2AA60, 1LA7060-2AA61, 1LA7063-2AA10, 1LA7063-2AA11, 1LA7063-2AA60, 1LA7063-2AA61, 1LA7070-2AA10, 1LA7070-2AA11 + 154 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1LA7060-2AA10Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7060-2AA11Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7060-2AA60Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7060-2AA61Output: 0.18 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-2AA10Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7063-2AA11Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-2AA60Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7063-2AA61Output: 0.25 kW | Poles: 2 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-2AA10Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7070-2AA11Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-2AA60Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7070-2AA61Output: 0.37 kW | Poles: 2 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-2AA10Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7080-2AA11Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-2AA60Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7080-2AA61Output: 0.75 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-2AA10Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7083-2AA11Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-2AA60Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7083-2AA61Output: 1.1 kW | Poles: 2 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-2AA10Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-2AA11Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-2AA60Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-2AA61Output: 1.5 kW | Poles: 2 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-2AA10Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-2AA11Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-2AA60Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-2AA61Output: 2.2 kW | Poles: 2 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-2AA10Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-2AA11Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-2AA60Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-2AA61Output: 3 kW | Poles: 2 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-2AA10Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-2AA11Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-2AA60Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-2AA61Output: 4 kW | Poles: 2 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-2AA10Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-2AA11Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-2AA60Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-2AA61Output: 5.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7131-2AA10Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7131-2AA11Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7131-2AA60Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7131-2AA61Output: 7.5 kW | Poles: 2 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-2AA10Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-2AA11Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-2AA60Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-2AA61Output: 11 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-2AA10Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7164-2AA11Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-2AA60Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7164-2AA61Output: 15 kW | Poles: 2 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-2AA10Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-2AA11Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-2AA60Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-2AA61Output: 18.5 kW | Poles: 2 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-4AB10Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7063-4AB11Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7063-4AB60Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7063-4AB61Output: 0.18 kW | Poles: 4 | Frame: 63 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-4AB10Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7070-4AB11Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7070-4AB60Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7070-4AB61Output: 0.25 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-4AB10Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7073-4AB11Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-4AB60Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7073-4AB61Output: 0.37 kW | Poles: 4 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-4AA10Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7083-4AA11Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7083-4AA60Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7083-4AA61Output: 0.75 kW | Poles: 4 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-4AA10Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-4AA11Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-4AA60Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-4AA61Output: 1.1 kW | Poles: 4 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-4AA10Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-4AA11Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-4AA60Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-4AA61Output: 1.5 kW | Poles: 4 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-4AA10Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-4AA11Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-4AA60Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-4AA61Output: 2.2 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7107-4AA10Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7107-4AA11Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7107-4AA60Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7107-4AA61Output: 3 kW | Poles: 4 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-4AA10Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-4AA11Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-4AA60Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-4AA61Output: 4 kW | Poles: 4 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-4AA10Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-4AA11Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-4AA60Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-4AA61Output: 5.5 kW | Poles: 4 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-4AA10Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7133-4AA11Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-4AA60Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7133-4AA61Output: 7.5 kW | Poles: 4 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-4AA10Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-4AA11Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-4AA60Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-4AA61Output: 11 kW | Poles: 4 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-4AA10Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-4AA11Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-4AA60Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-4AA61Output: 15 kW | Poles: 4 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-6AA10Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7073-6AA11Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7073-6AA60Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7073-6AA61Output: 0.25 kW | Poles: 6 | Frame: 71 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-6AA10Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7080-6AA11Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7080-6AA60Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7080-6AA61Output: 0.37 kW | Poles: 6 | Frame: 80 | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-6AA10Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7090-6AA11Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7090-6AA60Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7090-6AA61Output: 0.75 kW | Poles: 6 | Frame: 90S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-6AA10Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7096-6AA11Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7096-6AA60Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7096-6AA61Output: 1.1 kW | Poles: 6 | Frame: 90L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-6AA10Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7106-6AA11Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7106-6AA60Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7106-6AA61Output: 1.5 kW | Poles: 6 | Frame: 100L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-6AA10Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7113-6AA11Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7113-6AA60Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7113-6AA61Output: 2.2 kW | Poles: 6 | Frame: 112M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-6AA10Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7130-6AA11Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7130-6AA60Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7130-6AA61Output: 3 kW | Poles: 6 | Frame: 132S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-6AA10Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7133-6AA11Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7133-6AA60Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7133-6AA61Output: 4 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7134-6AA10Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7134-6AA11Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7134-6AA60Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7134-6AA61Output: 5.5 kW | Poles: 6 | Frame: 132M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-6AA10Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-6AA11Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-6AA60Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-6AA61Output: 7.5 kW | Poles: 6 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-6AA10Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-6AA11Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-6AA60Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-6AA61Output: 11 kW | Poles: 6 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-8AB10Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7163-8AB11Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7163-8AB60Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7163-8AB61Output: 4 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-8AB10Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7164-8AB11Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7164-8AB60Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7164-8AB61Output: 5.5 kW | Poles: 8 | Frame: 160M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-8AB10Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LA7166-8AB11Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LA7166-8AB60Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LA7166-8AB61Output: 7.5 kW | Poles: 8 | Frame: 160L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
