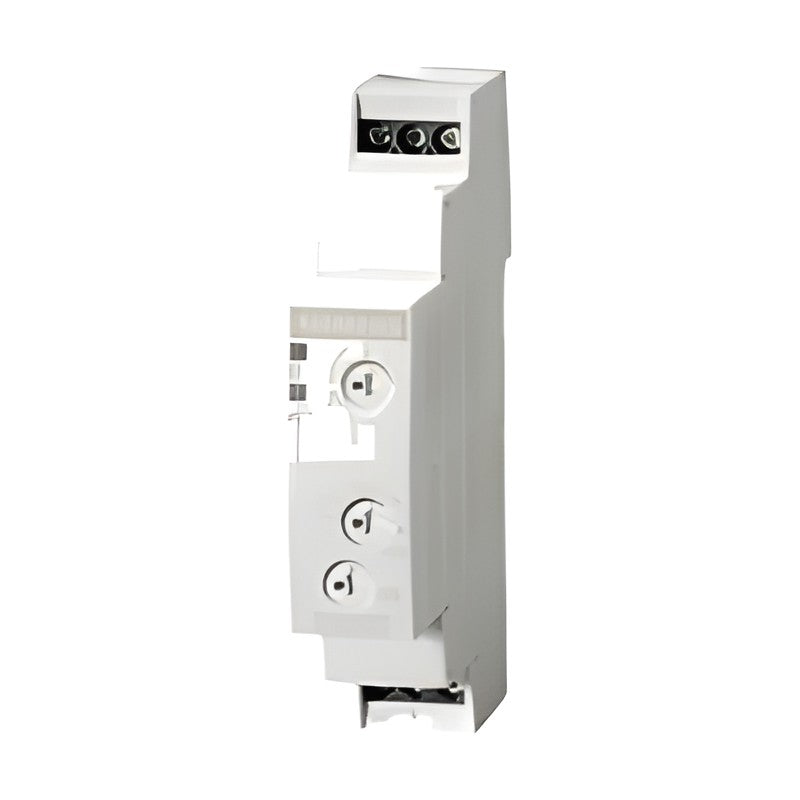

Siemens 7PV15 Timing Relays (17.5 mm)

Siemens 7PV15 Timing Relays (17.5 mm)

7PV15 electronic timing relays in a 17.5 mm modular enclosure for distribution boards, with multifunction and monofunction versions.

Key features

  • Multifunction 7PV1508 with 7 functions and 7 time ranges
  • ON-delay, OFF-delay, clock-pulse and star-delta versions
  • Time setting by rotary switches, 0.05 s up to 100 h
  • Wide-range supply 12 ... 240 V AC/DC on most versions
  • LED indication, screw terminals

Specifications

Brand Siemens
Product line 7PV15
Width 17.5 mm
Connection Screw terminals
Category Timers
Source Siemens Catalog IC 10 · 2026, p. 946
7PV1508-1AW30 Function: Multifunction, 7 functions | Contacts: 1 CO | Time: 7 ranges 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1508-1BW30 Function: Multifunction, 7 functions | Contacts: 2 CO | Time: 7 ranges 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1511-1AP30 Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.05 ... 1 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1512-1AQ30 Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.5 ... 10 s | Supply: 24/100 ... 127 V AC, 24 V DC
7PV1512-1AP30 Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.5 ... 10 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1513-1AQ30 Function: ON-delay, 1 range | Contacts: 1 CO | Time: 5 ... 100 s | Supply: 24/100 ... 127 V AC, 24 V DC
7PV1513-1AP30 Function: ON-delay, 1 range | Contacts: 1 CO | Time: 5 ... 100 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1518-1AW30 Function: ON-delay, 7 ranges | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1538-1AW30 Function: OFF-delay with control signal | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1540-1AW30 Function: OFF-delay without control signal | Contacts: 1 CO | Time: 0.05 ... 100 s | Supply: 12 ... 240 V AC/DC
7PV1558-1AW30 Function: Clock-pulse relay | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1578-1BW30 Function: Star-delta | Contacts: 2 NO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
TimersSiemens
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 7PV15 Timing Relays (17.5 mm)

Brand Siemens·Timers

Available part numbers (12)

7PV1508-1AW30, 7PV1508-1BW30, 7PV1511-1AP30, 7PV1512-1AQ30, 7PV1512-1AP30, 7PV1513-1AQ30, 7PV1513-1AP30, 7PV1518-1AW30, 7PV1538-1AW30, 7PV1540-1AW30 + 2 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7PV1508-1AW30Function: Multifunction, 7 functions | Contacts: 1 CO | Time: 7 ranges 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1508-1BW30Function: Multifunction, 7 functions | Contacts: 2 CO | Time: 7 ranges 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1511-1AP30Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.05 ... 1 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1512-1AQ30Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.5 ... 10 s | Supply: 24/100 ... 127 V AC, 24 V DC
7PV1512-1AP30Function: ON-delay, 1 range | Contacts: 1 CO | Time: 0.5 ... 10 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1513-1AQ30Function: ON-delay, 1 range | Contacts: 1 CO | Time: 5 ... 100 s | Supply: 24/100 ... 127 V AC, 24 V DC
7PV1513-1AP30Function: ON-delay, 1 range | Contacts: 1 CO | Time: 5 ... 100 s | Supply: 24/200 ... 240 V AC, 24 V DC
7PV1518-1AW30Function: ON-delay, 7 ranges | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1538-1AW30Function: OFF-delay with control signal | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1540-1AW30Function: OFF-delay without control signal | Contacts: 1 CO | Time: 0.05 ... 100 s | Supply: 12 ... 240 V AC/DC
7PV1558-1AW30Function: Clock-pulse relay | Contacts: 1 CO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
7PV1578-1BW30Function: Star-delta | Contacts: 2 NO | Time: 0.05 s ... 100 h | Supply: 12 ... 240 V AC/DC
