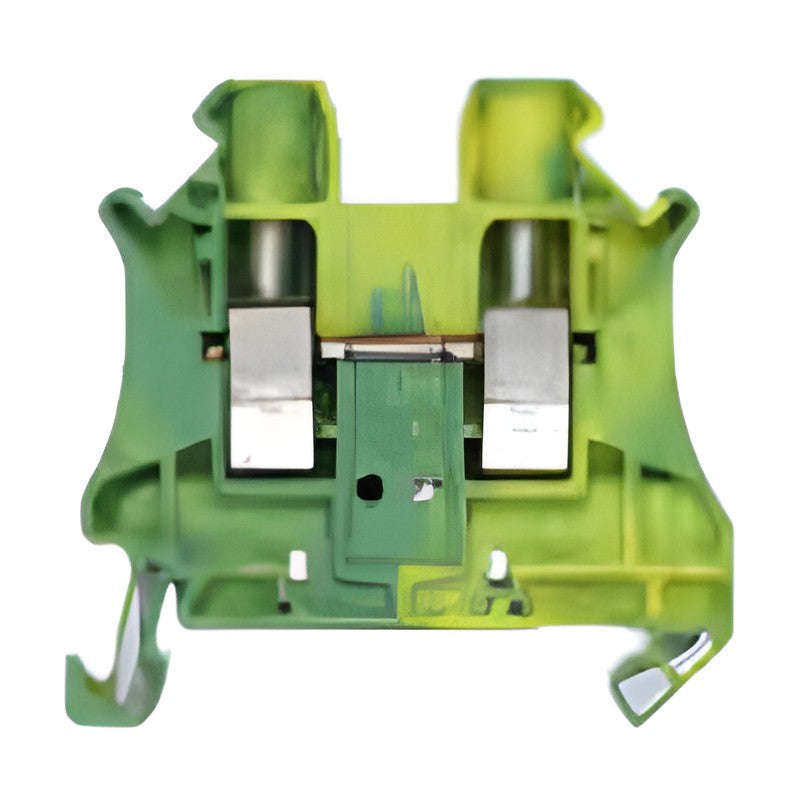

Siemens 8WH1 screw terminals (through, high-current, isolating, fuse)

Siemens 8WH1 screw terminals (through, high-current, isolating, fuse)

Siemens 8WH1 screw-type terminal blocks from 2.5 to 240 mm², including through-type, PE, two-tier, isolating, measuring transformer, fuse and diode terminals with specific accessories.

Key features

  • Screw connection for 0.14 to 240 mm² conductors, high-current versions up to 415 A
  • Through-type and PE terminals in several colors, two-tier terminals with or without equipotential bonding
  • Isolating, isolating blade and measuring transformer isolating terminals with test sockets
  • Fuse terminals for 5 × 20 mm and 6.3 × 32 mm G fuse links, optional LED
  • Diode, two-tier diode and two-tier soldering terminals

Specifications

Brand Siemens
Product line 8WH1 screw terminals
Connection Screw
Mounting DIN rail
Standards IEC 60947-7-1, IEC 60947-7-2, IEC 60947-7-3
Approvals cULus, CSA (per type)
Source Siemens Catalog LV 10 · 2026, p. 976-987
8WH1000-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 41 A / 1000 V
8WH1000-0AH00 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 57 A / 1000 V
8WH1000-0AJ00 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Gray | Rating: 76 A / 1000 V
8WH1000-0AK00 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Gray | Rating: 101 A / 1000 V
8WH1000-0AM00 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Gray | Rating: 150 A / 1000 V
8WH1000-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 32 A / 1000 V
8WH1000-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Blue | Rating: 41 A / 1000 V
8WH1000-0AH01 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Blue | Rating: 57 A / 1000 V
8WH1000-0AJ01 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Blue | Rating: 76 A / 1000 V
8WH1000-0AK01 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Blue | Rating: 101 A / 1000 V
8WH1000-0AM01 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Blue | Rating: 150 A / 1000 V
8WH1000-0AF04 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Orange | Rating: 32 A / 1000 V
8WH1000-0AG04 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Orange | Rating: 41 A / 1000 V
8WH1000-0AF02 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Red | Rating: 32 A / 1000 V
8WH1000-0AG02 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Red | Rating: 41 A / 1000 V
8WH1000-0AH02 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Red | Rating: 57 A / 1000 V
8WH1000-0AF08 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Black | Rating: 32 A / 1000 V
8WH1000-0AG08 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Black | Rating: 41 A / 1000 V
8WH1000-0AH08 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Black | Rating: 57 A / 1000 V
8WH1000-0AF03 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green | Rating: 32 A / 1000 V
8WH1000-0AF06 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Yellow | Rating: 32 A / 1000 V
8WH1000-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 32 A / 1000 V
8WH1000-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 41 A / 1000 V
8WH1000-0CH07 Type: PE through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 57 A / 1000 V
8WH1000-0CJ07 Type: PE through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 76 A / 1000 V
8WH1000-0CK07 Type: PE through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 101 A / 1000 V
8WH1000-0CM07 Type: PE through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Green-yellow
8WH9000-1PA00 Type: Cover | Size: 2.5 mm² / 4 mm² / 6 mm² / 10 mm² | Version: 2.2 mm | Color: Gray
8WH9076-1PA00 Type: Cover | Size: 16 mm² | Version: 2.2 mm | Color: Gray
8WH9070-6BA00 Type: Compartment partition | Size: 2.5 mm² / 4 mm² / 6 mm² / 10 mm² | Version: 2 mm | Color: Gray
8WH9002-8AC10 Type: Reducing comb | Size: 6 mm² | Version: From screw to screw | Color: Turquoise
8WH9002-8EC10 Type: Reducing comb | Size: 16 mm² | Version: From screw to screw | Color: Turquoise
8WH9002-8GC10 Type: Reducing comb | Size: 35 mm² | Version: From screw to screw | Color: Turquoise
8WH9002-8FC10 Type: Reducing comb | Size: 16 mm² | Version: From screw to spring | Color: Turquoise
8WH9002-8HC10 Type: Reducing comb | Size: 35 mm² | Version: From screw to spring | Color: Turquoise
8WH9060-5BA06 Type: Warning cover 8WH1 | Size: 2.5 mm² | Version: Lightning symbol | Color: Yellow
8WH9063-5BA06 Type: Warning cover 8WH1 | Size: 4 mm² | Version: Lightning symbol | Color: Yellow
8WH9064-5BA06 Type: Warning cover 8WH1 | Size: 6 mm² | Version: Lightning symbol | Color: Yellow
8WH9065-5BA06 Type: Warning cover 8WH1 | Size: 10 mm² | Version: Lightning symbol | Color: Yellow
8WH9066-5BA06 Type: Warning cover 8WH1 | Size: 16 mm² | Version: Lightning symbol | Color: Yellow
8WH9067-5BA06 Type: Warning cover 8WH1 | Size: 35 mm² | Version: Lightning symbol | Color: Yellow
8WH1000-0AN00 Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Gray | Rating: 150 A / 1000 V
8WH1000-0AP00 Type: Through-type terminal | Size: 70 mm² | Version: 2 clamping points | Color: Gray | Rating: 192 A / 1000 V
8WH1000-0AQ00 Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Gray | Rating: 232 A / 1000 V
8WH1000-0AS00 Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Gray | Rating: 309 A / 1000 V
8WH1000-0AU00 Type: Through-type terminal | Size: 240 mm² | Version: 2 clamping points | Color: Gray | Rating: 415 A / 1000 V
8WH1000-0AN01 Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Blue | Rating: 150 A / 1000 V
8WH1000-0AP01 Type: Through-type terminal | Size: 70 mm² | Version: 2 clamping points | Color: Blue | Rating: 192 A / 1000 V
8WH1000-0AQ01 Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Blue | Rating: 232 A / 1000 V
8WH1000-0AS01 Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Blue | Rating: 309 A / 1000 V
8WH1000-0AU01 Type: Through-type terminal | Size: 240 mm² | Version: 2 clamping points | Color: Blue | Rating: 415 A / 1000 V
8WH1000-0CN07 Type: PE through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 150 A / 1000 V
8WH1000-0CP07 Type: PE through-type terminal | Size: 70 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 192 A / 1000 V
8WH1000-0CQ07 Type: PE through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 232 A / 1000 V
8WH9120-0AA00 Type: Tap-off terminal | Size: 50 mm² | Version: 10 mm² | Rating: 57 A
8WH9120-0BA00 Type: Tap-off terminal | Size: 95 mm² | Version: 10 mm² | Rating: 57 A
8WH9120-0CA00 Type: Tap-off terminal | Size: 150 mm² / 240 mm² | Version: 10 mm² | Rating: 57 A
8WH9020-3MA00 Type: Insertion profile | Size: 50 mm²
8WH9020-3NA00 Type: Insertion profile | Size: 95 mm²
8WH9020-3PA00 Type: Insertion profile | Size: 150 mm² / 240 mm²
8WH9020-3AA00 Type: Comb, fully insulated | Size: 95 mm² | Version: 2-pole | Rating: 232 A
8WH9020-3CA00 Type: Comb, fully insulated | Size: 150 mm² | Version: 2-pole | Rating: 232 A
8WH9020-3BA00 Type: Comb, fully insulated | Size: 95 mm² | Version: 3-pole | Rating: 232 A
8WH9020-3DA00 Type: Comb, fully insulated | Size: 150 mm² | Version: 3-pole | Rating: 232 A
8WH9020-3EA00 Type: Comb, fully insulated | Size: 240 mm² | Version: 2-pole | Rating: 320 A
8WH9020-3FA00 Type: Comb, fully insulated | Size: 240 mm² | Version: 3-pole | Rating: 320 A
8WH9020-6HC00 Type: Permanent link | Size: 50 mm² | Version: 2-pole | Rating: 150 A
8WH9020-3AH00 Type: Permanent link | Size: 70 mm² | Version: 2-pole | Rating: 150 A
8WH9020-6HD00 Type: Permanent link | Size: 50 mm² | Version: 3-pole | Rating: 150 A
8WH9020-3AJ00 Type: Permanent link | Size: 70 mm² | Version: 3-pole | Rating: 150 A
8WH1020-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH1020-0AG00 Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 36 A / 800 V
8WH1020-0AF01 Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 28 A / 500 V
8WH1020-0AG01 Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 36 A / 800 V
8WH1025-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH1025-0AG00 Type: Two-tier terminal | Size: 4 mm² | Version: With equipotential bonding | Color: Gray | Rating: 36 A / 800 V
8WH1020-0CF07 Type: PE two-tier terminal | Size: 2.5 mm² | Color: Green-yellow | Rating: 28 A / 500 V
8WH1020-0CG07 Type: PE two-tier terminal | Size: 4 mm² | Color: Green-yellow | Rating: 36 A / 800 V
8WH9000-1QA00 Type: Cover (two-tier) | Size: 2.5 mm² / 4 mm² | Version: 2.2 mm | Color: Gray
8WH9070-6FA00 Type: Compartment partition (two-tier) | Size: 2.5 mm² / 4 mm² | Version: 2 mm | Color: Gray
8WH9160-0AA00 Type: Spacer plate (tier offset) | Size: 2.5 mm² / 4 mm² | Version: 2.5 mm | Color: Gray
8WH1000-6AG00 Type: Isolating terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH1000-6AH00 Type: Isolating terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 500 V
8WH1000-6CG00 Type: Isolating blade terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 500 V
8WH1020-6AG00 Type: Two-tier isolating terminal | Size: 4 mm² | Version: Isolating terminal in upper tier | Color: Gray | Rating: 38 A / 500 V
8WH1020-6AC00 Type: Two-tier isolating terminal | Size: 4 mm² | Version: Isolating blade in upper tier | Color: Gray | Rating: 38 A / 500 V
8WH1000-7AH00 Type: Measuring transformer terminal | Size: 6 mm² | Version: Isolating, 2 test socket recesses | Color: Gray | Rating: 41 A / 500 V
8WH1000-7BH00 Type: Measuring transformer terminal | Size: 6 mm² | Version: Through-type, 2 test socket recesses | Color: Gray | Rating: 41 A / 800 V
8WH9000-3UA00 Type: Cover (measuring transformer) | Size: 6 mm² | Version: 2.2 mm | Color: Gray
8WH9021-0AC00 Type: Disconnecting link | Size: 6 mm² | Version: 2-pole | Color: Gray
8WH9021-0AL00 Type: Connecting comb, separable | Size: 6 mm² | Version: 10-pole | Color: Gray
8WH9010-0BC08 Type: Short-circuiting plug, insulated | Size: 6 mm² | Version: 2-pole | Color: Black | Rating: 20 A
8WH9010-0MB03 Type: Test socket, insulated | Size: 6 mm² | Color: Green
8WH9010-0MB11 Type: Test socket, insulated | Size: 6 mm² | Color: Violet
8WH9010-0MB06 Type: Test socket, insulated | Size: 6 mm² | Color: Yellow
8WH9010-0MB12 Type: Test socket, bare | Size: 6 mm²
8WH1000-1GG08 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, without LED | Color: Black | Rating: 6.3 A / 500 V
8WH1000-1KG38 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 10-30 V | Color: Black | Rating: 6.3 A / 500 V
8WH1000-1MG88 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 110-250 V | Color: Black | Rating: 6.3 A / 500 V
8WH1000-1HH08 Type: Fuse terminal | Size: 6 mm² | Version: 6.3 × 32 mm fuse, without LED | Color: Black | Rating: 10 A / 630 V
8WH1000-1PH38 Type: Fuse terminal | Size: 6 mm² | Version: 6.3 × 32 mm fuse, LED 12-30 V | Color: Black | Rating: 10 A / 630 V
8WH1020-5LF00 Type: Two-tier soldering terminal | Size: 2.5 mm² | Version: 4 points, components by user | Color: Gray | Rating: 28 A / 500 V
8WH1000-6LG00 Type: Diode terminal | Size: 4 mm² | Version: Let-through left to right | Color: Gray | Rating: 0.5 A / 800 V
8WH1000-6KG00 Type: Diode terminal | Size: 4 mm² | Version: Let-through right to left | Color: Gray | Rating: 0.5 A / 800 V
8WH9000-2PA00 Type: Cover (diode) | Size: 4 mm² | Version: 2.2 mm | Color: Gray
8WH1020-5AF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, top to bottom | Color: Gray | Rating: 28 A / 500 V
8WH1020-5BF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, bottom to top | Color: Gray | Rating: 28 A / 500 V
8WH1020-5DF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, bottom left to right | Color: Gray | Rating: 28 A / 500 V
8WH1020-5FF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Two diodes (variant 1) | Color: Gray | Rating: 28 A / 500 V
8WH1020-5HF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Two diodes (variant 2) | Color: Gray | Rating: 28 A / 500 V
8WH1020-5JF30 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Illuminated display 24 V DC | Color: Gray | Rating: 28 A / 500 V
