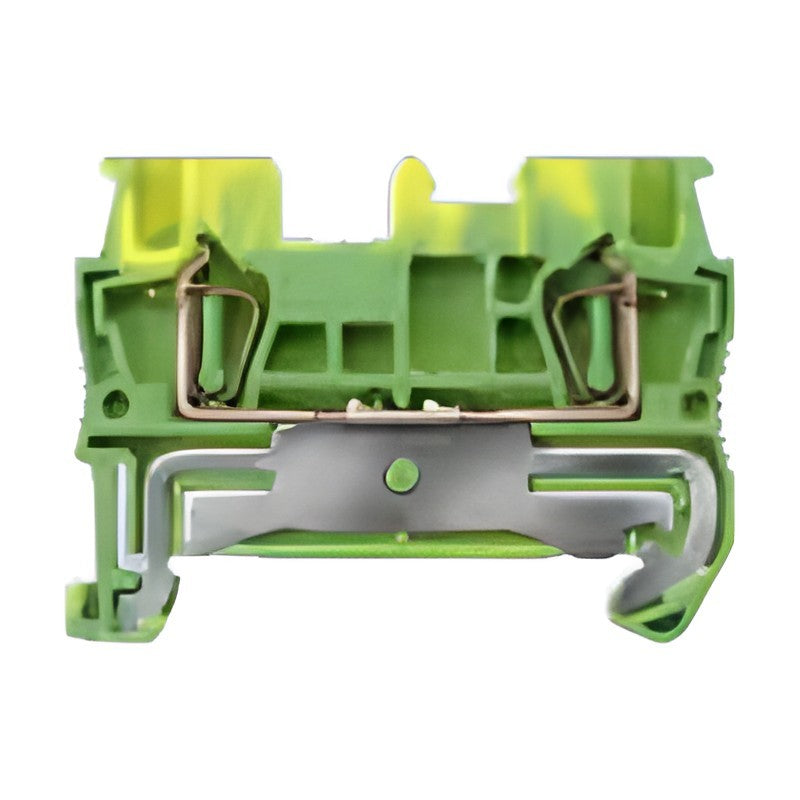

Siemens 8WH2 spring-loaded terminals (through, tier, fuse, diode)

Siemens 8WH2 spring-loaded terminals (through, tier, fuse, diode)

Siemens 8WH2 spring-loaded terminal blocks from 1.5 to 35 mm² with through-type, PE, two-, three- and four-tier, isolating, fuse and diode versions and specific accessories.

Key features

  • Spring-loaded connection for 0.08 to 35 mm² conductors
  • Through-type terminals with 2, 3 or 4 clamping points in eight colors
  • Two-tier, three-tier and four-tier motor terminals, with or without equipotential bonding
  • Isolating, isolating blade and fuse terminals (5 × 20, 6.3 × 32 mm and blade-type fuses)
  • Diode and two-tier diode terminals with integrated 1N 4007 diode

Specifications

Brand Siemens
Product line 8WH2 spring-loaded terminals
Connection Spring-loaded
Mounting DIN rail
Standards IEC 60947-7-1, IEC 60947-7-2, IEC 60947-7-3
Approvals cULus (per type)
Source Siemens Catalog LV 10 · 2026, p. 966-975
8WH2000-0AE00 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2000-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2000-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2000-0AH00 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 52 A / 1000 V
8WH2000-0AJ00 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Gray | Rating: 65 A / 1000 V
8WH2000-0AK00 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Gray | Rating: 90 A / 1000 V
8WH2000-0AM00 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Gray | Rating: 125 A / 1000 V
8WH2000-0AE01 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2000-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2000-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2000-0AH01 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Blue | Rating: 52 A / 1000 V
8WH2000-0AJ01 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Blue | Rating: 65 A / 1000 V
8WH2000-0AK01 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Blue | Rating: 90 A / 1000 V
8WH2000-0AM01 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Blue | Rating: 125 A / 1000 V
8WH2000-0AE04 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Orange | Rating: 17.5 A / 500 V
8WH2000-0AF04 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2000-0AG04 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Orange | Rating: 40 A / 800 V
8WH2000-0AE02 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Red | Rating: 17.5 A / 500 V
8WH2000-0AF02 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Red | Rating: 31 A / 800 V
8WH2000-0AG02 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Red | Rating: 40 A / 800 V
8WH2000-0AE08 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Black | Rating: 17.5 A / 500 V
8WH2000-0AF08 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Black | Rating: 31 A / 800 V
8WH2000-0AG08 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Black | Rating: 40 A / 800 V
8WH2000-0AE03 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Green | Rating: 17.5 A / 500 V
8WH2000-0AF03 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green | Rating: 31 A / 800 V
8WH2000-0AG03 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green | Rating: 40 A / 800 V
8WH2000-0AE05 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: White | Rating: 17.5 A / 500 V
8WH2000-0AF05 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: White | Rating: 31 A / 800 V
8WH2000-0AG05 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: White | Rating: 40 A / 800 V
8WH2000-0AE06 Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Yellow | Rating: 17.5 A / 500 V
8WH2000-0AF06 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Yellow | Rating: 31 A / 800 V
8WH2000-0AG06 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Yellow | Rating: 40 A / 800 V
8WH2003-0AE00 Type: Through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2003-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2003-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2003-0AH00 Type: Through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Gray | Rating: 52 A / 1000 V
8WH2003-0AE01 Type: Through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2003-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2003-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2003-0AH01 Type: Through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Blue | Rating: 52 A / 1000 V
8WH2003-0AF04 Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2004-0AE00 Type: Through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2004-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2004-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2004-0AE01 Type: Through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2004-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2004-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2004-0AF04 Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2000-0CE07 Type: PE through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2000-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2000-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH2000-0CH07 Type: PE through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 52 A / 1000 V
8WH2000-0CJ07 Type: PE through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 65 A / 1000 V
8WH2000-0CK07 Type: PE through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 90 A / 1000 V
8WH2000-0CM07 Type: PE through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 125 A / 1000 V
8WH2003-0CE07 Type: PE through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2003-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2003-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH2003-0CH07 Type: PE through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 52 A / 1000 V
8WH2004-0CE07 Type: PE through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2004-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2004-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH9004-1GA00 Type: Cover | Size: 6 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9005-1GA00 Type: Cover | Size: 10 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9006-1GA00 Type: Cover | Size: 16 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9003-2GA00 Type: Cover | Size: 4 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9004-2GA00 Type: Cover | Size: 6 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9003-4GA00 Type: Cover | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0DA00 Type: Compartment partition | Size: 6 mm² | Version: 2 clamping points / 3 clamping points | Color: Gray
8WH9003-0GA00 Type: Cover segment | Size: 4 mm² | Color: Gray
8WH9061-5AA06 Type: Warning cover (operating shafts) | Size: 1.5 mm² | Color: Yellow
8WH9060-5AA06 Type: Warning cover (operating shafts) | Size: 2.5 mm² | Color: Yellow
8WH9063-5AA06 Type: Warning cover (operating shafts) | Size: 4 mm² | Color: Yellow
8WH9064-5AA06 Type: Warning cover (operating shafts) | Size: 6 mm² | Color: Yellow
8WH9067-5AA06 Type: Warning cover (operating shafts) | Size: 35 mm² | Color: Yellow
8WH2020-0AE00 Type: Two-tier terminal | Size: 1.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2020-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-0AG00 Type: Two-tier terminal | Size: 4 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 32 A / 500 V
8WH2020-0AE01 Type: Two-tier terminal | Size: 1.5 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2020-0AF01 Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2020-0AG01 Type: Two-tier terminal | Size: 4 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 32 A / 500 V
8WH2023-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 6 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2023-0AF01 Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 6 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2025-0AE00 Type: Two-tier terminal, equipotential | Size: 1.5 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2025-0AF00 Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2025-0AG00 Type: Two-tier terminal, equipotential | Size: 4 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 32 A / 500 V
8WH2025-0AF01 Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 4 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2022-0AF00 Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 6 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-4CF00 Type: Two-tier terminal, N top / L bottom | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-0CE07 Type: PE two-tier terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2020-0CF07 Type: PE two-tier terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 26 A / 500 V
8WH2020-0CG07 Type: PE two-tier terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 32 A / 500 V
8WH2023-0CF07 Type: PE two-tier terminal | Size: 2.5 mm² | Version: 6 clamping points | Color: Green-yellow | Rating: 26 A / 500 V
8WH9000-2VA00 Type: Cover (two-tier) | Size: 2.5 mm² | Version: 6 clamping points, 2.2 mm | Color: Gray
8WH2030-0AF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH2030-0AF01 Type: Three-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 28 A / 500 V
8WH2030-4EF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/N | Color: Gray | Rating: 28 A / 500 V
8WH2030-4HF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/L | Color: Gray | Rating: 28 A / 500 V
8WH2035-0AF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH2035-0AF01 Type: Three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Blue | Rating: 28 A / 500 V
8WH2035-0CF07 Type: PE three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Green-yellow | Rating: 28 A / 500 V
8WH9000-1GD00 Type: Cover (three-tier) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH9060-4BA00 Type: Label holder (three-tier) | Size: 2.5 mm² | Color: Gray
8WH2040-4LF00 Type: Four-tier motor terminal | Size: 2.5 mm² | Version: L/L/L/PE | Color: Gray | Rating: 26 A / 800 V
8WH2040-4LG00 Type: Four-tier motor terminal | Size: 4 mm² | Version: L/L/L/PE | Color: Gray | Rating: 32 A / 800 V
8WH9000-1GE00 Type: Cover (four-tier) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH2000-6AF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6AG00 Type: Isolating terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2003-6AF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2004-6AF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6CF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2003-6CF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2004-6CF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6CG00 Type: Isolating blade terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-1GG08 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, without LED | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1JG38 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 15-30 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1JG68 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 30-60 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1MG08 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 110-250 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1HG08 Type: Fuse terminal | Size: 4 mm² | Version: 6.3 × 32 mm fuse, without LED | Color: Black | Rating: 10 A / 400 V
8WH2000-1RG08 Type: Fuse terminal | Size: 4 mm² | Version: 6.3 × 32 mm fuse, LED 100-250 V | Color: Black | Rating: 10 A / 400 V
8WH2000-1AG08 Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, without LED | Color: Black | Rating: 30 A / 400 V
8WH2000-1BG28 Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, LED 12 V | Color: Black | Rating: 30 A / 400 V
8WH2000-1BG38 Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, LED 24 V | Color: Black | Rating: 30 A / 400 V
8WH2003-5DF00 Type: Diode terminal | Size: 2.5 mm² | Version: 3 points, let-through left to right | Color: Gray | Rating: 0.5 A / 500 V
8WH2003-5CF00 Type: Diode terminal | Size: 2.5 mm² | Version: 3 points, let-through right to left | Color: Gray | Rating: 0.5 A / 500 V
8WH2020-5AF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, top to bottom | Color: Gray | Rating: 26 A / 500 V
8WH2020-5DF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, bottom left to right | Color: Gray | Rating: 26 A / 500 V
8WH2020-5KF00 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Two diodes | Color: Gray | Rating: 26 A / 500 V
8WH2020-5JF30 Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Illuminated display 15-30 V DC | Color: Gray | Rating: 26 A / 500 V
8WH9000-1VA00 Type: Cover (two-tier diode) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
Terminal BlocksSiemens
130 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 8WH2 spring-loaded terminals (through, tier, fuse, diode)

Brand Siemens·Terminal Blocks

Available part numbers (130)

8WH2000-0AE00, 8WH2000-0AF00, 8WH2000-0AG00, 8WH2000-0AH00, 8WH2000-0AJ00, 8WH2000-0AK00, 8WH2000-0AM00, 8WH2000-0AE01, 8WH2000-0AF01, 8WH2000-0AG01 + 120 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8WH2000-0AE00Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2000-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2000-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2000-0AH00Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 52 A / 1000 V
8WH2000-0AJ00Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Gray | Rating: 65 A / 1000 V
8WH2000-0AK00Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Gray | Rating: 90 A / 1000 V
8WH2000-0AM00Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Gray | Rating: 125 A / 1000 V
8WH2000-0AE01Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2000-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2000-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2000-0AH01Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Blue | Rating: 52 A / 1000 V
8WH2000-0AJ01Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Blue | Rating: 65 A / 1000 V
8WH2000-0AK01Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Blue | Rating: 90 A / 1000 V
8WH2000-0AM01Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Blue | Rating: 125 A / 1000 V
8WH2000-0AE04Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Orange | Rating: 17.5 A / 500 V
8WH2000-0AF04Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2000-0AG04Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Orange | Rating: 40 A / 800 V
8WH2000-0AE02Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Red | Rating: 17.5 A / 500 V
8WH2000-0AF02Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Red | Rating: 31 A / 800 V
8WH2000-0AG02Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Red | Rating: 40 A / 800 V
8WH2000-0AE08Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Black | Rating: 17.5 A / 500 V
8WH2000-0AF08Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Black | Rating: 31 A / 800 V
8WH2000-0AG08Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Black | Rating: 40 A / 800 V
8WH2000-0AE03Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Green | Rating: 17.5 A / 500 V
8WH2000-0AF03Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green | Rating: 31 A / 800 V
8WH2000-0AG03Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green | Rating: 40 A / 800 V
8WH2000-0AE05Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: White | Rating: 17.5 A / 500 V
8WH2000-0AF05Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: White | Rating: 31 A / 800 V
8WH2000-0AG05Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: White | Rating: 40 A / 800 V
8WH2000-0AE06Type: Through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Yellow | Rating: 17.5 A / 500 V
8WH2000-0AF06Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Yellow | Rating: 31 A / 800 V
8WH2000-0AG06Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Yellow | Rating: 40 A / 800 V
8WH2003-0AE00Type: Through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2003-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2003-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2003-0AH00Type: Through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Gray | Rating: 52 A / 1000 V
8WH2003-0AE01Type: Through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2003-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2003-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2003-0AH01Type: Through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Blue | Rating: 52 A / 1000 V
8WH2003-0AF04Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2004-0AE00Type: Through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2004-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 31 A / 800 V
8WH2004-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Gray | Rating: 40 A / 800 V
8WH2004-0AE01Type: Through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2004-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 31 A / 800 V
8WH2004-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Blue | Rating: 40 A / 800 V
8WH2004-0AF04Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Orange | Rating: 31 A / 800 V
8WH2000-0CE07Type: PE through-type terminal | Size: 1.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2000-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2000-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH2000-0CH07Type: PE through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 52 A / 1000 V
8WH2000-0CJ07Type: PE through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 65 A / 1000 V
8WH2000-0CK07Type: PE through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 90 A / 1000 V
8WH2000-0CM07Type: PE through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 125 A / 1000 V
8WH2003-0CE07Type: PE through-type terminal | Size: 1.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2003-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2003-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH2003-0CH07Type: PE through-type terminal | Size: 6 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 52 A / 1000 V
8WH2004-0CE07Type: PE through-type terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2004-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 31 A / 800 V
8WH2004-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 40 A / 800 V
8WH9004-1GA00Type: Cover | Size: 6 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9005-1GA00Type: Cover | Size: 10 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9006-1GA00Type: Cover | Size: 16 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9003-2GA00Type: Cover | Size: 4 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9004-2GA00Type: Cover | Size: 6 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9003-4GA00Type: Cover | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0DA00Type: Compartment partition | Size: 6 mm² | Version: 2 clamping points / 3 clamping points | Color: Gray
8WH9003-0GA00Type: Cover segment | Size: 4 mm² | Color: Gray
8WH9061-5AA06Type: Warning cover (operating shafts) | Size: 1.5 mm² | Color: Yellow
8WH9060-5AA06Type: Warning cover (operating shafts) | Size: 2.5 mm² | Color: Yellow
8WH9063-5AA06Type: Warning cover (operating shafts) | Size: 4 mm² | Color: Yellow
8WH9064-5AA06Type: Warning cover (operating shafts) | Size: 6 mm² | Color: Yellow
8WH9067-5AA06Type: Warning cover (operating shafts) | Size: 35 mm² | Color: Yellow
8WH2020-0AE00Type: Two-tier terminal | Size: 1.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2020-0AF00Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-0AG00Type: Two-tier terminal | Size: 4 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 32 A / 500 V
8WH2020-0AE01Type: Two-tier terminal | Size: 1.5 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 17.5 A / 500 V
8WH2020-0AF01Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2020-0AG01Type: Two-tier terminal | Size: 4 mm² | Version: 2-pole, 4 clamping points | Color: Blue | Rating: 32 A / 500 V
8WH2023-0AF00Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 6 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2023-0AF01Type: Two-tier terminal | Size: 2.5 mm² | Version: 2-pole, 6 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2025-0AE00Type: Two-tier terminal, equipotential | Size: 1.5 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 17.5 A / 500 V
8WH2025-0AF00Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2025-0AG00Type: Two-tier terminal, equipotential | Size: 4 mm² | Version: 1-pole, 4 clamping points | Color: Gray | Rating: 32 A / 500 V
8WH2025-0AF01Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 4 clamping points | Color: Blue | Rating: 26 A / 500 V
8WH2022-0AF00Type: Two-tier terminal, equipotential | Size: 2.5 mm² | Version: 1-pole, 6 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-4CF00Type: Two-tier terminal, N top / L bottom | Size: 2.5 mm² | Version: 2-pole, 4 clamping points | Color: Gray | Rating: 26 A / 500 V
8WH2020-0CE07Type: PE two-tier terminal | Size: 1.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 17.5 A / 500 V
8WH2020-0CF07Type: PE two-tier terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 26 A / 500 V
8WH2020-0CG07Type: PE two-tier terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 32 A / 500 V
8WH2023-0CF07Type: PE two-tier terminal | Size: 2.5 mm² | Version: 6 clamping points | Color: Green-yellow | Rating: 26 A / 500 V
8WH9000-2VA00Type: Cover (two-tier) | Size: 2.5 mm² | Version: 6 clamping points, 2.2 mm | Color: Gray
8WH2030-0AF00Type: Three-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH2030-0AF01Type: Three-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 28 A / 500 V
8WH2030-4EF00Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/N | Color: Gray | Rating: 28 A / 500 V
8WH2030-4HF00Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/L | Color: Gray | Rating: 28 A / 500 V
8WH2035-0AF00Type: Three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Gray | Rating: 28 A / 500 V
8WH2035-0AF01Type: Three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Blue | Rating: 28 A / 500 V
8WH2035-0CF07Type: PE three-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Green-yellow | Rating: 28 A / 500 V
8WH9000-1GD00Type: Cover (three-tier) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH9060-4BA00Type: Label holder (three-tier) | Size: 2.5 mm² | Color: Gray
8WH2040-4LF00Type: Four-tier motor terminal | Size: 2.5 mm² | Version: L/L/L/PE | Color: Gray | Rating: 26 A / 800 V
8WH2040-4LG00Type: Four-tier motor terminal | Size: 4 mm² | Version: L/L/L/PE | Color: Gray | Rating: 32 A / 800 V
8WH9000-1GE00Type: Cover (four-tier) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH2000-6AF00Type: Isolating terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6AG00Type: Isolating terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2003-6AF00Type: Isolating terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2004-6AF00Type: Isolating terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6CF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2003-6CF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2004-6CF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-6CG00Type: Isolating blade terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 16 A / 400 V
8WH2000-1GG08Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, without LED | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1JG38Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 15-30 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1JG68Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 30-60 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1MG08Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm fuse, LED 110-250 V | Color: Black | Rating: 6.3 A / 250 V
8WH2000-1HG08Type: Fuse terminal | Size: 4 mm² | Version: 6.3 × 32 mm fuse, without LED | Color: Black | Rating: 10 A / 400 V
8WH2000-1RG08Type: Fuse terminal | Size: 4 mm² | Version: 6.3 × 32 mm fuse, LED 100-250 V | Color: Black | Rating: 10 A / 400 V
8WH2000-1AG08Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, without LED | Color: Black | Rating: 30 A / 400 V
8WH2000-1BG28Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, LED 12 V | Color: Black | Rating: 30 A / 400 V
8WH2000-1BG38Type: Fuse terminal | Size: 4 mm² | Version: Blade-type fuse, LED 24 V | Color: Black | Rating: 30 A / 400 V
8WH2003-5DF00Type: Diode terminal | Size: 2.5 mm² | Version: 3 points, let-through left to right | Color: Gray | Rating: 0.5 A / 500 V
8WH2003-5CF00Type: Diode terminal | Size: 2.5 mm² | Version: 3 points, let-through right to left | Color: Gray | Rating: 0.5 A / 500 V
8WH2020-5AF00Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, top to bottom | Color: Gray | Rating: 26 A / 500 V
8WH2020-5DF00Type: Two-tier diode terminal | Size: 2.5 mm² | Version: One diode, bottom left to right | Color: Gray | Rating: 26 A / 500 V
8WH2020-5KF00Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Two diodes | Color: Gray | Rating: 26 A / 500 V
8WH2020-5JF30Type: Two-tier diode terminal | Size: 2.5 mm² | Version: Illuminated display 15-30 V DC | Color: Gray | Rating: 26 A / 500 V
8WH9000-1VA00Type: Cover (two-tier diode) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
