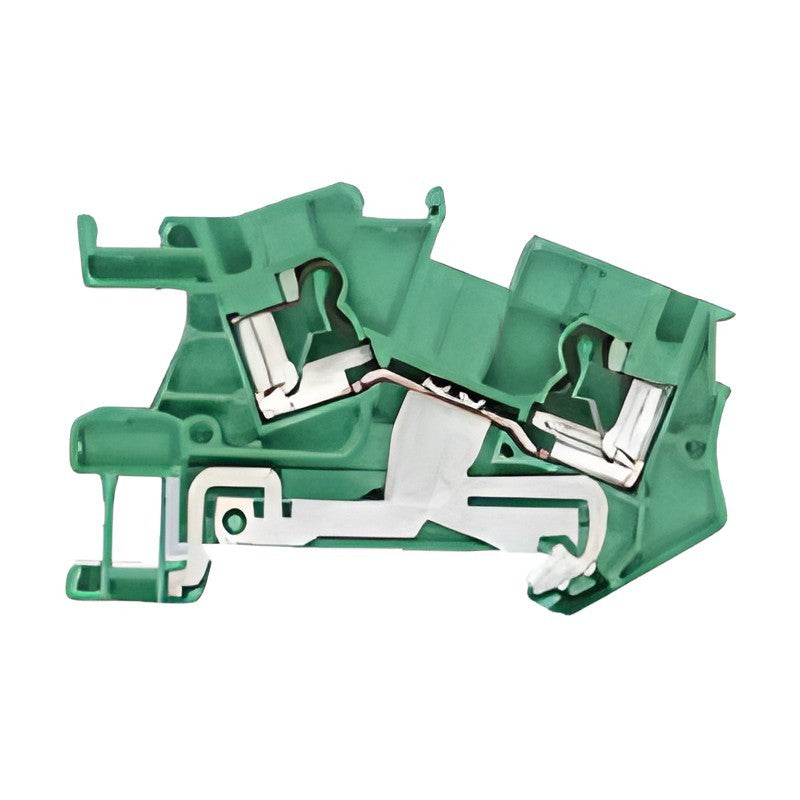

Siemens 8WH6 iPo installation terminals (through, N isolating, 3-tier)

Siemens 8WH6 iPo installation terminals (through, N isolating, 3-tier)

Siemens 8WH6 iPo installation terminals for distribution boards: through-type and PE terminals, N conductor isolating terminals and three-tier installation terminals, with N busbar accessories.

Key features

  • iPo plug-in technology terminals 2.5 to 6 mm², screw versions 16 and 35 mm² (8WH1201)
  • PE terminals for direct contact with the DIN rail (IEC 60947-7-2)
  • Blue N conductor isolating terminals for N busbar 10 × 3 mm
  • Three-tier PE/L/N installation terminals and isolating versions, 2.5 mm²
  • N conductor support brackets, connecting terminals and tinned N busbars

Specifications

Brand Siemens
Product line 8WH6 iPo installation terminals
Mounting DIN rail
Standards IEC 60947-7-1, IEC 60947-7-2
N busbar 10 × 3 mm, copper tinned
Source Siemens Catalog LV 10 · 2026, p. 960-965
8WH6001-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: iPo plug-in | Color: Gray | Rating: 24 A / 800 V
8WH6001-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: iPo plug-in | Color: Gray | Rating: 32 A / 800 V
8WH6001-0AH00 Type: Through-type terminal | Size: 6 mm² | Version: iPo plug-in | Color: Gray | Rating: 41 A / 800 V
8WH1201-0AK00 Type: Through-type terminal | Size: 16 mm² | Version: Screw terminal | Color: Gray | Rating: 76 A / 400 V
8WH1201-0AM00 Type: Through-type terminal | Size: 35 mm² | Version: Screw terminal | Color: Gray | Rating: 125 A / 800 V
8WH6001-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: iPo plug-in | Color: Blue | Rating: 24 A / 800 V
8WH6001-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: iPo plug-in | Color: Blue | Rating: 32 A / 800 V
8WH6001-0AH01 Type: Through-type terminal | Size: 6 mm² | Version: iPo plug-in | Color: Blue | Rating: 41 A / 800 V
8WH1201-0AK01 Type: Through-type terminal | Size: 16 mm² | Version: Screw terminal | Color: Blue | Rating: 76 A / 400 V
8WH1201-0AM01 Type: Through-type terminal | Size: 35 mm² | Version: Screw terminal | Color: Blue | Rating: 125 A / 800 V
8WH6001-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: iPo plug-in | Color: Green-yellow
8WH6001-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: iPo plug-in | Color: Green-yellow
8WH6001-0CH07 Type: PE through-type terminal | Size: 6 mm² | Version: iPo plug-in | Color: Green-yellow
8WH1201-0CK07 Type: PE through-type terminal | Size: 16 mm² | Version: Screw terminal | Color: Green-yellow
8WH1201-0CM07 Type: PE through-type terminal | Size: 35 mm² | Version: Screw terminal | Color: Green-yellow
8WH9000-1WA00 Type: Cover | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH9003-7WA00 Type: Cover | Size: 4 mm² | Version: 2.2 mm | Color: Gray
8WH9004-1WA00 Type: Cover | Size: 6 mm² | Version: 2.2 mm | Color: Gray
8WH9005-3PA00 Type: Cover | Size: 16 mm² | Version: 1.8 mm | Color: Gray
8WH9143-0AF01 Type: N conductor support bracket | Size: 2.5/4 mm² | Version: For N busbar 10 × 3 mm | Color: Blue
8WH9143-0AH01 Type: N conductor support bracket | Size: 6 mm² | Version: For N busbar 10 × 3 mm | Color: Blue
8WH9030-6BC00 Type: Connecting comb | Size: 35 mm² | Version: 2-pole
8WH9030-6BD00 Type: Connecting comb | Size: 35 mm² | Version: 3-pole
8WH9030-6AL00 Type: Connecting comb | Size: 16 mm² | Version: 10-pole
8WH9070-6HA00 Type: Compartment partition | Size: 16 mm² | Color: Gray
8WH9126-0BA01 Type: Connecting terminal | Size: 2.5-16 mm² | Version: Width 10.3 mm | Color: Blue
8WH9030-2AB12 Type: N busbar 10 × 3 mm | Size: 2.5-35 mm² | Version: Copper, tinned, 1000 mm
8WH6001-0BF01 Type: N conductor isolating terminal | Size: 2.5 mm² | Version: iPo plug-in | Color: Blue | Rating: 24 A / 250 V
8WH6001-0BG01 Type: N conductor isolating terminal | Size: 4 mm² | Version: iPo plug-in | Color: Blue | Rating: 32 A / 250 V
8WH6001-0BH01 Type: N conductor isolating terminal | Size: 6 mm² | Version: iPo plug-in | Color: Blue | Rating: 41 A / 400 V
8WH1201-0BJ01 Type: N conductor isolating terminal | Size: 10 mm² | Version: Screw terminal | Color: Blue | Rating: 57 A / 400 V
8WH1201-0BK01 Type: N conductor isolating terminal | Size: 16 mm² | Version: Screw terminal | Color: Blue | Rating: 76 A / 400 V
8WH1201-0BM01 Type: N conductor isolating terminal | Size: 35 mm² | Version: Screw terminal | Color: Blue | Rating: 110 A / 400 V
8WH9000-1SA00 Type: Cover (N isolating) | Size: 2.5 mm² | Version: 2.2 mm | Color: Blue
8WH9003-1SA00 Type: Cover (N isolating) | Size: 4 mm² | Version: 2.2 mm | Color: Blue
8WH9004-1SA00 Type: Cover (N isolating) | Size: 6 mm² | Version: 2.2 mm | Color: Blue
8WH9005-3PB00 Type: Cover (N isolating) | Size: 10/16 mm² | Color: Gray
8WH9141-0BC01 Type: N conductor support bracket | Size: 10-35 mm² | Version: For N busbar 10 × 3 mm | Color: Blue
8WH6001-4QF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: L | Color: Gray | Rating: 24 A / 400 V
8WH6001-4DF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: L/L | Color: Gray | Rating: 24 A / 400 V
8WH6001-4CF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: L/N | Color: Gray | Rating: 24 A / 400 V
8WH6001-4HF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/L | Color: Gray | Rating: 24 A / 400 V
8WH6001-4EF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/N | Color: Gray | Rating: 24 A / 400 V
8WH6001-4FF00 Type: Three-tier terminal | Size: 2.5 mm² | Version: PE/L/NT | Color: Gray | Rating: 24 A / 400 V
8WH9000-3SA00 Type: Cover (three-tier) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
8WH9142-0AF01 Type: N conductor support bracket | Size: 2.5 mm² three-tier | Version: Width 2 mm | Color: Blue
8WH6001-4PF00 Type: Three-tier through-type terminal | Size: 2.5 mm² | Version: PE/L/L, isolating contour | Color: Gray | Rating: 24 A / 400 V
8WH6001-4MF00 Type: Three-tier isolating terminal | Size: 2.5 mm² | Version: PE/L/L isolation | Color: Gray | Rating: 24 A / 400 V
8WH6001-4NF00 Type: Three-tier isolating terminal | Size: 2.5 mm² | Version: PE/L/L isolating blade | Color: Gray | Rating: 24 A / 400 V
8WH6001-4GF00 Type: Three-tier isolating terminal | Size: 2.5 mm² | Version: PE/L/N isolating blade | Color: Gray | Rating: 24 A / 400 V
8WH9000-6SA00 Type: Cover (isolating contour) | Size: 2.5 mm² | Version: 2.2 mm | Color: Gray
Terminal BlocksSiemens
51 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 8WH6 iPo installation terminals (through, N isolating, 3-tier)

Brand Siemens·Terminal Blocks

Available part numbers (51)

8WH6001-0AF00, 8WH6001-0AG00, 8WH6001-0AH00, 8WH1201-0AK00, 8WH1201-0AM00, 8WH6001-0AF01, 8WH6001-0AG01, 8WH6001-0AH01, 8WH1201-0AK01, 8WH1201-0AM01 + 41 more — see full table ↓
