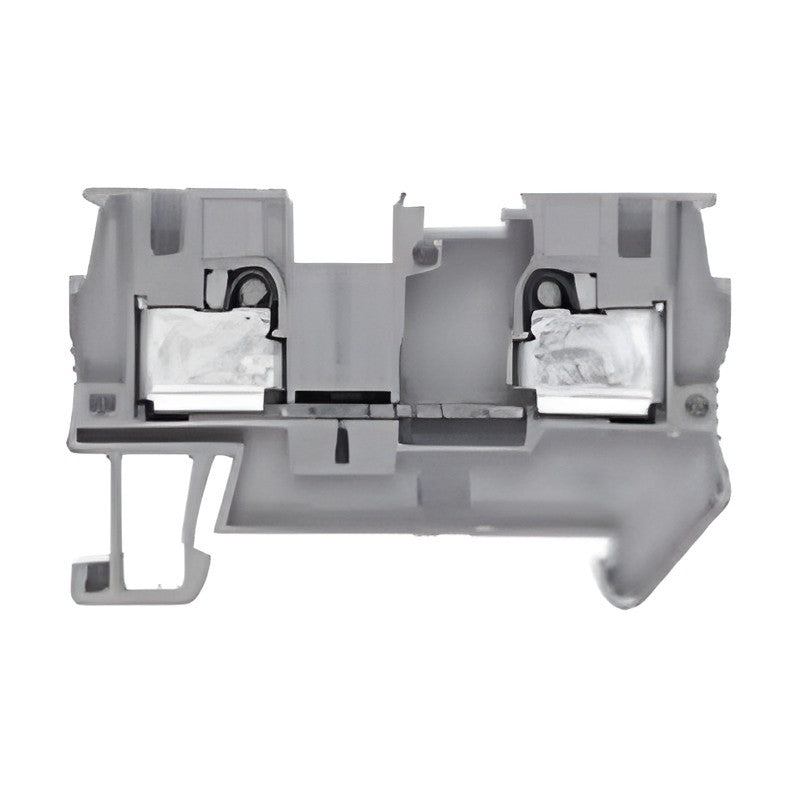

Siemens 8WH6 iPo plug-in terminals (through, isolating, fuse, I/O)

Siemens 8WH6 iPo plug-in terminals (through, isolating, fuse, I/O)

Siemens 8WH6 iPo plug-in (push-in) terminal blocks for DIN rail mounting, with through-type, two-tier, isolating, fuse and initiator/actuator versions plus specific accessories.

Key features

  • Push-in connection technology for rigid and ferruled conductors, 1.5 to 150 mm²
  • Through-type and PE terminals with 2, 3 or 4 clamping points
  • Two-tier, isolating, isolating blade and fuse terminals (5 × 20 mm G fuse links, optional LED)
  • Initiator/actuator terminals for 3- and 4-wire sensors, with matching infeed terminals
  • Specific covers, partitions, connecting combs, plug-in zone connectors and warning covers

Specifications

Brand Siemens
Product line 8WH6 iPo plug-in terminals
Connection Push-in (iPo plug-in technology)
Mounting DIN rail
Standards IEC 60947-7-1, IEC 60947-7-2
Approvals cULus (per type)
Source Siemens Catalog LV 10 · 2026, p. 950-959
8WH6000-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6000-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6000-0AH00 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 41 A / 1000 V
8WH6000-0AJ00 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Gray | Rating: 57 A / 1000 V
8WH6000-0AK00 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Gray | Rating: 90 A / 1000 V
8WH6000-0AM00 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Gray | Rating: 125 A / 1000 V
8WH6000-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6000-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6000-0AH01 Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Blue | Rating: 41 A / 1000 V
8WH6000-0AJ01 Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Blue | Rating: 57 A / 1000 V
8WH6000-0AK01 Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Blue | Rating: 90 A / 1000 V
8WH6000-0AM01 Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Blue | Rating: 125 A / 1000 V
8WH6003-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6003-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6003-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6003-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6004-0AF00 Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6004-0AG00 Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6004-0AF01 Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6004-0AG01 Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6000-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6000-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH6000-0CH07 Type: PE through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 41 A / 1000 V
8WH6000-0CJ07 Type: PE through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 57 A / 1000 V
8WH6000-0CK07 Type: PE through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 90 A / 1000 V
8WH6000-0CM07 Type: PE through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 125 A / 1000 V
8WH6003-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6003-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH6004-0CF07 Type: PE through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6004-0CG07 Type: PE through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH9000-1GA00 Type: Cover | Size: 2.5 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9003-1GA00 Type: Cover | Size: 4 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9004-3SA00 Type: Cover | Size: 6 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9005-1SA00 Type: Cover | Size: 10 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9006-1SA00 Type: Cover | Size: 16 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9000-2GA00 Type: Cover | Size: 2.5 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9003-2SA00 Type: Cover | Size: 4 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9000-4GA00 Type: Cover | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9003-4SA00 Type: Cover | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0AA00 Type: Compartment partition | Size: 2.5 mm² / 4 mm² | Version: 2 clamping points | Color: Gray
8WH9070-0GA00 Type: Compartment partition | Size: 2.5 mm² / 4 mm² | Version: 3 clamping points | Color: Gray
8WH9000-0GA00 Type: Cover segment | Size: 2.5 mm² | Color: Gray
8WH9060-5CA06 Type: Warning cover | Size: 2.5 mm² | Color: Yellow
8WH9063-5CA06 Type: Warning cover | Size: 4 mm² / 6 mm² | Color: Yellow
8WH9065-5CA06 Type: Warning cover | Size: 10 mm² | Color: Yellow
8WH9066-5CA06 Type: Warning cover | Size: 16 mm² | Color: Yellow
8WH9067-5CA06 Type: Warning cover | Size: 35 mm² / 50 mm² | Color: Yellow
8WH6000-0AN00 Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Gray | Rating: 150 A / 1000 V AC
8WH6000-0AQ00 Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Gray | Rating: 232 A / 1000 V AC
8WH6000-0AS00 Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Gray | Rating: 309 A / 1000 V AC
8WH6000-0AN01 Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Blue | Rating: 150 A / 1000 V AC
8WH6000-0AQ01 Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Blue | Rating: 232 A / 1000 V AC
8WH6000-0AS01 Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Blue | Rating: 309 A / 1000 V AC
8WH6000-0CN07 Type: PE through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 150 A / 1000 V AC
8WH6000-0CQ07 Type: PE through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 232 A / 1000 V AC
8WH9020-3AB00 Type: Connecting comb | Size: 50 mm² | Version: 2-pole
8WH9020-3AD00 Type: Connecting comb | Size: 95 mm² | Version: 2-pole
8WH9020-3AF00 Type: Connecting comb | Size: 150 mm² | Version: 2-pole
8WH9020-3AC00 Type: Connecting comb | Size: 50 mm² | Version: 3-pole
8WH9020-3AE00 Type: Connecting comb | Size: 95 mm² | Version: 3-pole
8WH9020-3AG00 Type: Connecting comb | Size: 150 mm² | Version: 3-pole
8WH9120-0DA00 Type: Tap-off terminal | Size: 50 mm² / 95 mm² / 150 mm² | Version: 1-pole
8WH9010-0NB00 Type: Test plug | Size: 50 mm² / 95 mm² / 150 mm² | Version: Metal
8WH9010-0MB02 Type: Insulating sleeve for test plug | Size: 50 mm² / 95 mm² / 150 mm² | Color: Red
8WH9068-5CA06 Type: Warning cover | Size: 95 mm² / 150 mm² | Color: Yellow
8WH6020-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 26 A / 500 V
8WH6020-0AG00 Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 32 A / 500 V
8WH6020-0AF01 Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 26 A / 500 V
8WH6020-0AG01 Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 32 A / 500 V
8WH6025-0AF00 Type: Two-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Gray | Rating: 26 A / 500 V
8WH6025-0AG00 Type: Two-tier terminal | Size: 4 mm² | Version: With equipotential bonding | Color: Gray | Rating: 32 A / 500 V
8WH6020-0CF07 Type: PE two-tier terminal | Size: 2.5 mm² | Color: Green-yellow | Rating: 26 A / 500 V
8WH6020-0CG07 Type: PE two-tier terminal | Size: 4 mm² | Color: Green-yellow | Rating: 32 A / 500 V
8WH9000-4SE00 Type: Cover (two-tier) | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9003-1VA00 Type: Cover (two-tier) | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0BA00 Type: Compartment partition (two-tier) | Size: 2.5 mm² / 4 mm² | Version: 4 clamping points, 2 mm | Color: Gray
8WH6000-6CF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-6AG00 Type: Isolating terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 500 V
8WH6003-6CF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6004-6CF00 Type: Isolating terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH9000-3SC00 Type: Cover | Size: 2.5 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9000-3SD00 Type: Cover | Size: 2.5 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9000-5GA00 Type: Cover | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9040-0DB04 Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Isolating plug | Color: Orange
8WH9020-8AB00 Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Through-type connector | Color: Gray | Rating: 16 A
8WH9040-3AB08 Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Fused connector, LED 12-30 V | Color: Black | Rating: 6.3 A
8WH9040-3DB08 Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Fused connector, without LED | Color: Black | Rating: 6.3 A
8WH9040-0BB00 Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Component connector | Color: Gray | Rating: 6 A
8WH6000-6AF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-6CG00 Type: Isolating blade terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6003-6AF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6004-6AF00 Type: Isolating blade terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-1GG08 Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm G fuse, without LED | Color: Black | Rating: 6.3 A / 500 V
8WH6000-1KG38 Type: Fuse terminal | Size: 4 mm² | Version: LED 10-30 V AC/DC | Color: Black | Rating: 6.3 A / 500 V
8WH6000-1MG88 Type: Fuse terminal | Size: 4 mm² | Version: LED 110-250 V AC/DC | Color: Black | Rating: 6.3 A / 500 V
8WH6003-0DE00 Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L+, L-, A; 4 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0FE00 Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L+, L-, A; LED 24 V | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0HE00 Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L, A, PE; 4 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0DE00 Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, L, A; 5 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0FE00 Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, L, A; LED 24 V | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0HE00 Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, PE, A; 5 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0DF04 Type: Infeed terminal (initiator) | Size: 2.5 mm² | Version: 3-wire, L+, L- | Color: Orange | Rating: 20 A / 250 V
8WH6004-0HE04 Type: Infeed terminal (actuator) | Size: 2.5 mm² | Version: 4-wire, L+, L-, PE | Color: Orange | Rating: 20 A / 250 V
8WH9001-2VD00 Type: Cover (initiator/actuator) | Size: 1.5 mm² | Version: For 3-wire, 2.2 mm | Color: Gray
8WH9001-4VE00 Type: Cover (initiator/actuator) | Size: 1.5 mm² | Version: For 4-wire, 2.2 mm | Color: Gray
8WH9020-6JC02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Red | Rating: 17.5 A
8WH9020-6JC01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JC00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JD02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Red | Rating: 17.5 A
8WH9020-6JD01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JD00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JE02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Red | Rating: 17.5 A
8WH9020-6JE01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JE00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JF02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Red | Rating: 17.5 A
8WH9020-6JF01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JF00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JL02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Red | Rating: 17.5 A
8WH9020-6JL01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JL00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JS02 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Red | Rating: 17.5 A
8WH9020-6JS01 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JS00 Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Gray | Rating: 17.5 A
Terminal BlocksSiemens
123 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 8WH6 iPo plug-in terminals (through, isolating, fuse, I/O)

Brand Siemens·Terminal Blocks

Available part numbers (123)

8WH6000-0AF00, 8WH6000-0AG00, 8WH6000-0AH00, 8WH6000-0AJ00, 8WH6000-0AK00, 8WH6000-0AM00, 8WH6000-0AF01, 8WH6000-0AG01, 8WH6000-0AH01, 8WH6000-0AJ01 + 113 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8WH6000-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6000-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6000-0AH00Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Gray | Rating: 41 A / 1000 V
8WH6000-0AJ00Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Gray | Rating: 57 A / 1000 V
8WH6000-0AK00Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Gray | Rating: 90 A / 1000 V
8WH6000-0AM00Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Gray | Rating: 125 A / 1000 V
8WH6000-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6000-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6000-0AH01Type: Through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Blue | Rating: 41 A / 1000 V
8WH6000-0AJ01Type: Through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Blue | Rating: 57 A / 1000 V
8WH6000-0AK01Type: Through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Blue | Rating: 90 A / 1000 V
8WH6000-0AM01Type: Through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Blue | Rating: 125 A / 1000 V
8WH6003-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6003-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6003-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6003-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6004-0AF00Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 24 A / 800 V
8WH6004-0AG00Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Gray | Rating: 32 A / 800 V
8WH6004-0AF01Type: Through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Blue | Rating: 24 A / 800 V
8WH6004-0AG01Type: Through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Blue | Rating: 32 A / 800 V
8WH6000-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6000-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH6000-0CH07Type: PE through-type terminal | Size: 6 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 41 A / 1000 V
8WH6000-0CJ07Type: PE through-type terminal | Size: 10 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 57 A / 1000 V
8WH6000-0CK07Type: PE through-type terminal | Size: 16 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 90 A / 1000 V
8WH6000-0CM07Type: PE through-type terminal | Size: 35 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 125 A / 1000 V
8WH6003-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6003-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 3 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH6004-0CF07Type: PE through-type terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 24 A / 800 V
8WH6004-0CG07Type: PE through-type terminal | Size: 4 mm² | Version: 4 clamping points | Color: Green-yellow | Rating: 32 A / 800 V
8WH9000-1GA00Type: Cover | Size: 2.5 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9003-1GA00Type: Cover | Size: 4 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9004-3SA00Type: Cover | Size: 6 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9005-1SA00Type: Cover | Size: 10 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9006-1SA00Type: Cover | Size: 16 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9000-2GA00Type: Cover | Size: 2.5 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9003-2SA00Type: Cover | Size: 4 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9000-4GA00Type: Cover | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9003-4SA00Type: Cover | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0AA00Type: Compartment partition | Size: 2.5 mm² / 4 mm² | Version: 2 clamping points | Color: Gray
8WH9070-0GA00Type: Compartment partition | Size: 2.5 mm² / 4 mm² | Version: 3 clamping points | Color: Gray
8WH9000-0GA00Type: Cover segment | Size: 2.5 mm² | Color: Gray
8WH9060-5CA06Type: Warning cover | Size: 2.5 mm² | Color: Yellow
8WH9063-5CA06Type: Warning cover | Size: 4 mm² / 6 mm² | Color: Yellow
8WH9065-5CA06Type: Warning cover | Size: 10 mm² | Color: Yellow
8WH9066-5CA06Type: Warning cover | Size: 16 mm² | Color: Yellow
8WH9067-5CA06Type: Warning cover | Size: 35 mm² / 50 mm² | Color: Yellow
8WH6000-0AN00Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Gray | Rating: 150 A / 1000 V AC
8WH6000-0AQ00Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Gray | Rating: 232 A / 1000 V AC
8WH6000-0AS00Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Gray | Rating: 309 A / 1000 V AC
8WH6000-0AN01Type: Through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Blue | Rating: 150 A / 1000 V AC
8WH6000-0AQ01Type: Through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Blue | Rating: 232 A / 1000 V AC
8WH6000-0AS01Type: Through-type terminal | Size: 150 mm² | Version: 2 clamping points | Color: Blue | Rating: 309 A / 1000 V AC
8WH6000-0CN07Type: PE through-type terminal | Size: 50 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 150 A / 1000 V AC
8WH6000-0CQ07Type: PE through-type terminal | Size: 95 mm² | Version: 2 clamping points | Color: Green-yellow | Rating: 232 A / 1000 V AC
8WH9020-3AB00Type: Connecting comb | Size: 50 mm² | Version: 2-pole
8WH9020-3AD00Type: Connecting comb | Size: 95 mm² | Version: 2-pole
8WH9020-3AF00Type: Connecting comb | Size: 150 mm² | Version: 2-pole
8WH9020-3AC00Type: Connecting comb | Size: 50 mm² | Version: 3-pole
8WH9020-3AE00Type: Connecting comb | Size: 95 mm² | Version: 3-pole
8WH9020-3AG00Type: Connecting comb | Size: 150 mm² | Version: 3-pole
8WH9120-0DA00Type: Tap-off terminal | Size: 50 mm² / 95 mm² / 150 mm² | Version: 1-pole
8WH9010-0NB00Type: Test plug | Size: 50 mm² / 95 mm² / 150 mm² | Version: Metal
8WH9010-0MB02Type: Insulating sleeve for test plug | Size: 50 mm² / 95 mm² / 150 mm² | Color: Red
8WH9068-5CA06Type: Warning cover | Size: 95 mm² / 150 mm² | Color: Yellow
8WH6020-0AF00Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 26 A / 500 V
8WH6020-0AG00Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Gray | Rating: 32 A / 500 V
8WH6020-0AF01Type: Two-tier terminal | Size: 2.5 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 26 A / 500 V
8WH6020-0AG01Type: Two-tier terminal | Size: 4 mm² | Version: Without equipotential bonding | Color: Blue | Rating: 32 A / 500 V
8WH6025-0AF00Type: Two-tier terminal | Size: 2.5 mm² | Version: With equipotential bonding | Color: Gray | Rating: 26 A / 500 V
8WH6025-0AG00Type: Two-tier terminal | Size: 4 mm² | Version: With equipotential bonding | Color: Gray | Rating: 32 A / 500 V
8WH6020-0CF07Type: PE two-tier terminal | Size: 2.5 mm² | Color: Green-yellow | Rating: 26 A / 500 V
8WH6020-0CG07Type: PE two-tier terminal | Size: 4 mm² | Color: Green-yellow | Rating: 32 A / 500 V
8WH9000-4SE00Type: Cover (two-tier) | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9003-1VA00Type: Cover (two-tier) | Size: 4 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9070-0BA00Type: Compartment partition (two-tier) | Size: 2.5 mm² / 4 mm² | Version: 4 clamping points, 2 mm | Color: Gray
8WH6000-6CF00Type: Isolating terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-6AG00Type: Isolating terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 500 V
8WH6003-6CF00Type: Isolating terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6004-6CF00Type: Isolating terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH9000-3SC00Type: Cover | Size: 2.5 mm² | Version: 2 clamping points, 2.2 mm | Color: Gray
8WH9000-3SD00Type: Cover | Size: 2.5 mm² | Version: 3 clamping points, 2.2 mm | Color: Gray
8WH9000-5GA00Type: Cover | Size: 2.5 mm² | Version: 4 clamping points, 2.2 mm | Color: Gray
8WH9040-0DB04Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Isolating plug | Color: Orange
8WH9020-8AB00Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Through-type connector | Color: Gray | Rating: 16 A
8WH9040-3AB08Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Fused connector, LED 12-30 V | Color: Black | Rating: 6.3 A
8WH9040-3DB08Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Fused connector, without LED | Color: Black | Rating: 6.3 A
8WH9040-0BB00Type: Plug-in zone connector | Size: 2.5 mm² / 4 mm² | Version: Component connector | Color: Gray | Rating: 6 A
8WH6000-6AF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-6CG00Type: Isolating blade terminal | Size: 4 mm² | Version: 2 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6003-6AF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 3 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6004-6AF00Type: Isolating blade terminal | Size: 2.5 mm² | Version: 4 clamping points | Color: Gray | Rating: 20 A / 400 V
8WH6000-1GG08Type: Fuse terminal | Size: 4 mm² | Version: 5 × 20 mm G fuse, without LED | Color: Black | Rating: 6.3 A / 500 V
8WH6000-1KG38Type: Fuse terminal | Size: 4 mm² | Version: LED 10-30 V AC/DC | Color: Black | Rating: 6.3 A / 500 V
8WH6000-1MG88Type: Fuse terminal | Size: 4 mm² | Version: LED 110-250 V AC/DC | Color: Black | Rating: 6.3 A / 500 V
8WH6003-0DE00Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L+, L-, A; 4 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0FE00Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L+, L-, A; LED 24 V | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0HE00Type: Initiator terminal | Size: 1.5 mm² | Version: 3-wire L, A, PE; 4 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0DE00Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, L, A; 5 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0FE00Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, L, A; LED 24 V | Color: Gray | Rating: 13.5 A / 250 V
8WH6004-0HE00Type: Actuator terminal | Size: 1.5 mm² | Version: 4-wire L+, L-, PE, A; 5 conn. | Color: Gray | Rating: 13.5 A / 250 V
8WH6003-0DF04Type: Infeed terminal (initiator) | Size: 2.5 mm² | Version: 3-wire, L+, L- | Color: Orange | Rating: 20 A / 250 V
8WH6004-0HE04Type: Infeed terminal (actuator) | Size: 2.5 mm² | Version: 4-wire, L+, L-, PE | Color: Orange | Rating: 20 A / 250 V
8WH9001-2VD00Type: Cover (initiator/actuator) | Size: 1.5 mm² | Version: For 3-wire, 2.2 mm | Color: Gray
8WH9001-4VE00Type: Cover (initiator/actuator) | Size: 1.5 mm² | Version: For 4-wire, 2.2 mm | Color: Gray
8WH9020-6JC02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Red | Rating: 17.5 A
8WH9020-6JC01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JC00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 2-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JD02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Red | Rating: 17.5 A
8WH9020-6JD01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JD00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 3-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JE02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Red | Rating: 17.5 A
8WH9020-6JE01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JE00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 4-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JF02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Red | Rating: 17.5 A
8WH9020-6JF01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JF00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 5-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JL02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Red | Rating: 17.5 A
8WH9020-6JL01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JL00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 10-pole | Color: Gray | Rating: 17.5 A
8WH9020-6JS02Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Red | Rating: 17.5 A
8WH9020-6JS01Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Blue | Rating: 17.5 A
8WH9020-6JS00Type: Connecting comb (initiator/actuator) | Size: 1.5 mm² (3.5 mm) | Version: 20-pole | Color: Gray | Rating: 17.5 A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
