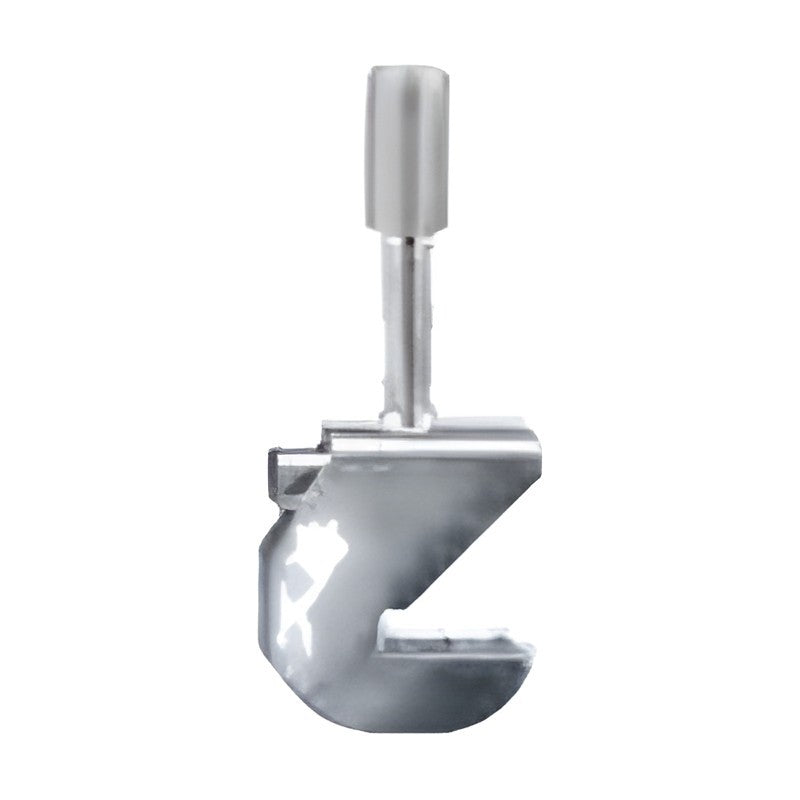

Siemens 8WH9 shield terminals (3 to 35 mm cable diameter)

Siemens 8WH9 shield terminals (3 to 35 mm cable diameter)

Siemens 8WH9 shield terminals for connecting cable shields to enclosure ground, for direct mounting on conductive plates or on 10 × 3 mm busbars.

Key features

  • Clamping range 3 … 8 mm to 20 … 35 mm cable diameter
  • Versions for direct attachment on conductive mounting plates (sheet 1 … 2 mm)
  • Versions for mounting on 10 × 3 mm busbars
  • N conductor support brackets for busbar mounting with 30 or 65 mm clearance

Specifications

Brand Siemens
Product line 8WH9 shield terminals
Function Cable shield to enclosure ground
Mounting plate thickness 1 … 2 mm
Busbar 10 × 3 mm
Source Siemens Catalog LV 10 · 2026, p. 988-988
8WH9130-0AA00 Type: Shield terminal | Diameter: 3 … 8 mm | Version: Direct on mounting plate | Torque: 0.6 Nm
8WH9130-0BA00 Type: Shield terminal | Diameter: 3 … 14 mm | Version: Direct on mounting plate | Torque: 0.8 Nm
8WH9130-0CA00 Type: Shield terminal | Diameter: 3 … 20 mm | Version: Direct on mounting plate | Torque: 0.8 Nm
8WH9130-0DA00 Type: Shield terminal | Diameter: 20 … 35 mm | Version: Direct on mounting plate | Torque: 1.5 … 1.8 Nm
8WH9130-0LA00 Type: Shield terminal | Diameter: 3 … 8 mm | Version: For 10 × 3 mm busbars | Torque: 0.6 Nm
8WH9140-0DA00 Type: Support bracket | Diameter: 3 … 35 mm | Version: Molded plastic, conductive, screw
8WH9140-0BA00 Type: Support bracket | Diameter: 3 … 20 mm | Version: Rail mount, approx. 30 mm to busbar
8WH9140-0CA00 Type: Support bracket | Diameter: 3 … 20 mm | Version: Rail mount, approx. 65 mm to busbar
Terminal BlocksSiemens
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 8WH9 shield terminals (3 to 35 mm cable diameter)

Brand Siemens·Terminal Blocks

Available part numbers (8)

8WH9130-0AA00, 8WH9130-0BA00, 8WH9130-0CA00, 8WH9130-0DA00, 8WH9130-0LA00, 8WH9140-0DA00, 8WH9140-0BA00, 8WH9140-0CA00

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8WH9130-0AA00Type: Shield terminal | Diameter: 3 … 8 mm | Version: Direct on mounting plate | Torque: 0.6 Nm
8WH9130-0BA00Type: Shield terminal | Diameter: 3 … 14 mm | Version: Direct on mounting plate | Torque: 0.8 Nm
8WH9130-0CA00Type: Shield terminal | Diameter: 3 … 20 mm | Version: Direct on mounting plate | Torque: 0.8 Nm
8WH9130-0DA00Type: Shield terminal | Diameter: 20 … 35 mm | Version: Direct on mounting plate | Torque: 1.5 … 1.8 Nm
8WH9130-0LA00Type: Shield terminal | Diameter: 3 … 8 mm | Version: For 10 × 3 mm busbars | Torque: 0.6 Nm
8WH9140-0DA00Type: Support bracket | Diameter: 3 … 35 mm | Version: Molded plastic, conductive, screw
8WH9140-0BA00Type: Support bracket | Diameter: 3 … 20 mm | Version: Rail mount, approx. 30 mm to busbar
8WH9140-0CA00Type: Support bracket | Diameter: 3 … 20 mm | Version: Rail mount, approx. 65 mm to busbar
