Siemens Motion Control Incremental Encoders (sin/cos, TTL, HTL)

Siemens Motion Control Incremental Encoders (sin/cos, TTL, HTL)

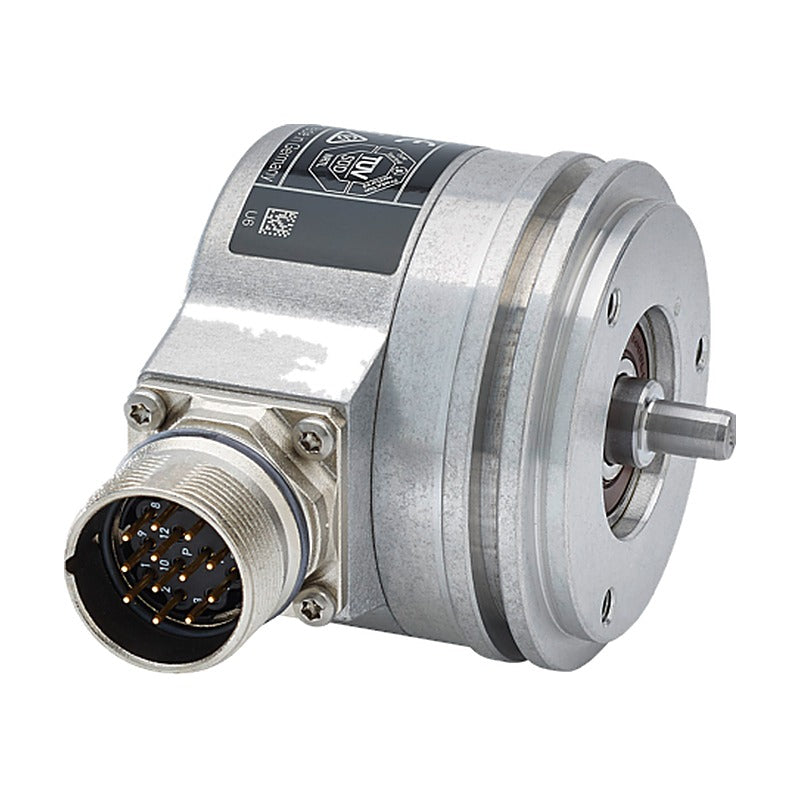

Built-on optoelectronic incremental rotary encoders with sin/cos 1 Vpp, RS422 (TTL) or HTL signals for speed and position detection.

Key features

  • sin/cos 1 Vpp, RS422 (TTL) and HTL signal interfaces
  • Synchro flange or clamp flange versions
  • Axial or radial flange outlet, or 1 m cable with connector
  • Resolutions from 100 to 5000 signals per revolution
  • 5 V DC or 10 ... 30 V DC supply versions
  • Connect to SINAMICS via SMC20/SMC30 Sensor Modules

Specifications

Brand Siemens
Product line Motion Control encoders
Encoder type Built-on optoelectronic incremental
Shaft Solid shaft
Max. speed 12000 r/min (mechanical)
Degree of protection IP67 housing / IP64 shaft input
Source Siemens Catalog D 21.4 · 2026, p. 1002-1006
6FX2001-3GB00 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-3GB02 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-3GC50 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-3EB00 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-3EB02 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-3EC50 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-3CB00 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-3CB02 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-3CC50 Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2GA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2GB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2GB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2GB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2GB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2GC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2GC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2GC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2GD60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2GF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2EA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2EB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2EB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2EB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2EB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2EC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2EC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2EC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2ED60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2EF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2CA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2CB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2CB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2CB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2CB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2CC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2CC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2CC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2CD60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2CF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2RA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2RB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2RB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2RB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2RB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2RC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2RC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2RC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2RD60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2RF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2PA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2PB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2PB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2PB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2PB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2PC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2PC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2PC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2PD60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2PF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2MA50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2MB00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2MB02 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2MB25 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2MB50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2MC00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2MC04 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2MC50 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2MD60 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2MF00 Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2HA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2HB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2HB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2HB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2HB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2HC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2HC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2HC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2HD60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2HF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2FA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2FB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2FB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2FB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2FB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2FC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2FC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2FC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2FD60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2FF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2DA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2DB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2DB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2DB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2DB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2DC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2DC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2DC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2DD60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2DF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2SA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2SB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2SB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2SB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2SB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2SC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2SC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2SC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2SD60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2SF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2QA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2QB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2QB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2QB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2QB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2QC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2QC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2QC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2QD60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2QF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2NA50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2NB00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2NB02 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2NB25 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2NB50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2NC00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2NC04 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2NC50 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2ND60 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2NF00 Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-4HA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 100 S/R
6FX2001-4HA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-4HB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-4HC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-4FA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 100 S/R
6FX2001-4FA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-4FB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-4FC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-4DA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 100 S/R
6FX2001-4DA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-4DB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-4DC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-4SA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 100 S/R
6FX2001-4SA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-4SB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-4SC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-4QA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 100 S/R
6FX2001-4QA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-4QB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-4QC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-4NA10 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 100 S/R
6FX2001-4NA50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-4NB00 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-4NC50 Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R
EncodersSiemens
153 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens Motion Control Incremental Encoders (sin/cos, TTL, HTL)

Brand Siemens·Encoders

Available part numbers (153)

6FX2001-3GB00, 6FX2001-3GB02, 6FX2001-3GC50, 6FX2001-3EB00, 6FX2001-3EB02, 6FX2001-3EC50, 6FX2001-3CB00, 6FX2001-3CB02, 6FX2001-3CC50, 6FX2001-2GA50 + 143 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6FX2001-3GB00Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-3GB02Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-3GC50Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-3EB00Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-3EB02Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-3EC50Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-3CB00Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-3CB02Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-3CC50Interface: sin/cos 1 Vpp | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2GA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2GB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2GB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2GB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2GB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2GC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2GC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2GC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2GD60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2GF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2EA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2EB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2EB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2EB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2EB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2EC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2EC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2EC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2ED60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2EF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2CA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2CB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2CB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2CB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2CB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2CC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2CC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2CC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2CD60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2CF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2RA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2RB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2RB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2RB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2RB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2RC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2RC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2RC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2RD60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2RF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2PA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2PB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2PB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2PB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2PB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2PC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2PC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2PC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2PD60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2PF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2MA50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2MB00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2MB02Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2MB25Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2MB50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2MC00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2MC04Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2MC50Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2MD60Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2MF00Interface: RS422 (TTL) | Supply: 5 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2HA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2HB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2HB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2HB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2HB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2HC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2HC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2HC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2HD60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2HF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2FA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2FB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2FB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2FB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2FB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2FC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2FC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2FC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2FD60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2FF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2DA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2DB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2DB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2DB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2DB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2DC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2DC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2DC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2DD60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2DF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-2SA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-2SB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-2SB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1024 S/R
6FX2001-2SB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1250 S/R
6FX2001-2SB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1500 S/R
6FX2001-2SC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2000 S/R
6FX2001-2SC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2048 S/R
6FX2001-2SC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-2SD60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 3600 S/R
6FX2001-2SF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 5000 S/R
6FX2001-2QA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-2QB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-2QB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1024 S/R
6FX2001-2QB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1250 S/R
6FX2001-2QB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1500 S/R
6FX2001-2QC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2000 S/R
6FX2001-2QC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2048 S/R
6FX2001-2QC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-2QD60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 3600 S/R
6FX2001-2QF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 5000 S/R
6FX2001-2NA50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-2NB00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-2NB02Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1024 S/R
6FX2001-2NB25Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1250 S/R
6FX2001-2NB50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1500 S/R
6FX2001-2NC00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2000 S/R
6FX2001-2NC04Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2048 S/R
6FX2001-2NC50Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-2ND60Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 3600 S/R
6FX2001-2NF00Interface: RS422 (TTL) | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 5000 S/R
6FX2001-4HA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 100 S/R
6FX2001-4HA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-4HB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-4HC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-4FA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 100 S/R
6FX2001-4FA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-4FB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-4FC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-4DA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 100 S/R
6FX2001-4DA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-4DB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-4DC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Synchro | Connection: Cable 1 m with connector | Resolution: 2500 S/R
6FX2001-4SA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 100 S/R
6FX2001-4SA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 500 S/R
6FX2001-4SB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 1000 S/R
6FX2001-4SC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Axial flange outlet | Resolution: 2500 S/R
6FX2001-4QA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 100 S/R
6FX2001-4QA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 500 S/R
6FX2001-4QB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 1000 S/R
6FX2001-4QC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Radial flange outlet | Resolution: 2500 S/R
6FX2001-4NA10Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 100 S/R
6FX2001-4NA50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 500 S/R
6FX2001-4NB00Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 1000 S/R
6FX2001-4NC50Interface: HTL | Supply: 10 ... 30 V DC | Flange: Clamp | Connection: Cable 1 m with connector | Resolution: 2500 S/R

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
