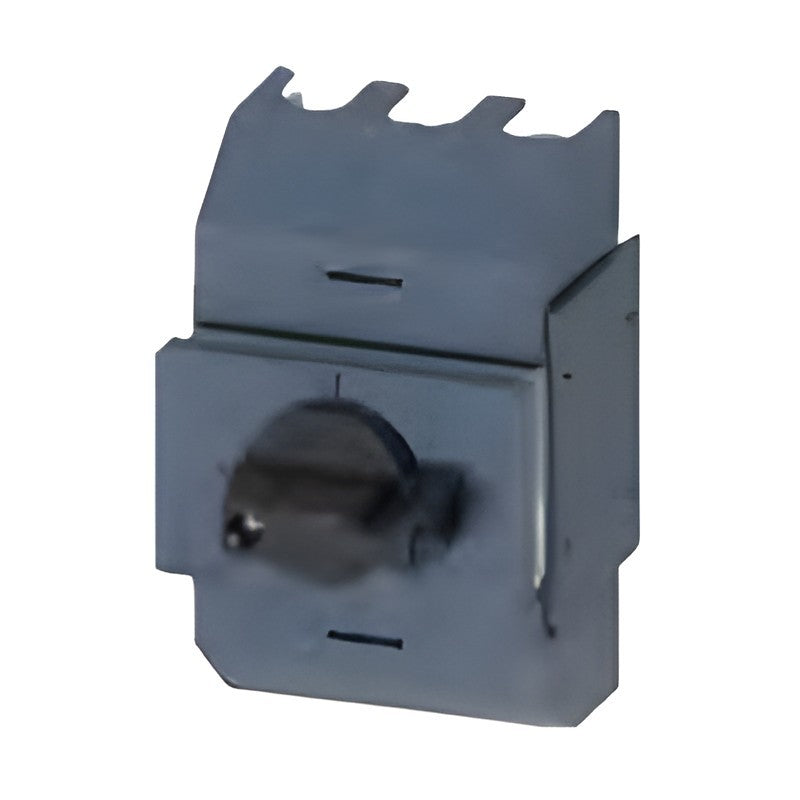

Siemens SENTRON 3KD Switch Disconnectors, Complete Units (16–2000 A)

Siemens SENTRON 3KD Switch Disconnectors, Complete Units (16–2000 A)

Siemens SENTRON 3KD and 3KD0 fuseless switch disconnectors as complete units with direct operating mechanism, 16 to 2000 A, 3- and 4-pole.

Key features

  • Sizes 01 and 02 (3KD0, AC) and sizes 1 … 5 (AC/DC), 16 … 2000 A
  • Box terminals up to 160 A, flat terminals 80 … 2000 A
  • Direct front operating mechanism, gray or red/yellow (3KD0)
  • Terminal covers included for 3KD0; phase barriers for size 2 with flat terminals
  • Floor mounting; sizes 01, 02, 1 and 2 also DIN-rail mountable

Specifications

Brand Siemens SENTRON
Series 3KD
Version Complete unit, direct op. mechanism
Catalog chapter 8 Switch Disconnectors
Product group Fuseless switch disconnectors
Standard IEC 60947-3
Mounting Floor; sizes 01/02/1/2 also DIN rail
Source Siemens Catalog LV 10 · 2026, p. 694-695
3KD0132-2KG20-3 Size: 01 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0142-2KG20-3 Size: 01 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0133-2KG20-3 Size: 01 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0143-2KG20-3 Size: 01 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD0232-2KG20-3 Size: 01 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0242-2KG20-3 Size: 01 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0233-2KG20-3 Size: 01 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0243-2KG20-3 Size: 01 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD0332-2KG20-3 Size: 01 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0333-2KG20-3 Size: 01 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0332-2LG20-3 Size: 02 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0342-2LG20-3 Size: 02 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0333-2LG20-3 Size: 02 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0343-2LG20-3 Size: 02 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD0432-2LG20-3 Size: 02 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0442-2LG20-3 Size: 02 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0433-2LG20-3 Size: 02 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0443-2LG20-3 Size: 02 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD0532-2LG20-3 Size: 02 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0542-2LG20-3 Size: 02 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0533-2LG20-3 Size: 02 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0543-2LG20-3 Size: 02 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD0632-2LG20-3 Size: 02 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, gray
3KD0642-2LG20-3 Size: 02 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, gray
3KD0633-2LG20-3 Size: 02 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC | Poles: 3P | Operating mechanism: Front center, red/yellow
3KD0643-2LG20-3 Size: 02 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC | Poles: 4P | Operating mechanism: Front center, red/yellow
3KD1632-2ME10-0 Size: 1 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD1642-2ME10-0 Size: 1 | Rated current Iu: 16 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD2232-2ME10-0 Size: 1 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD2242-2ME10-0 Size: 1 | Rated current Iu: 32 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD2632-2ME10-0 Size: 1 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD2642-2ME10-0 Size: 1 | Rated current Iu: 63 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD2832-2ME10-0 Size: 1 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD2842-2ME10-0 Size: 1 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3032-2ME10-0 Size: 1 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3042-2ME10-0 Size: 1 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD2832-2NE10-0 Size: 2 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD2842-2NE10-0 Size: 2 | Rated current Iu: 80 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3032-2NE10-0 Size: 2 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3042-2NE10-0 Size: 2 | Rated current Iu: 100 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3232-2NE10-0 Size: 2 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3242-2NE10-0 Size: 2 | Rated current Iu: 125 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3432-2NE10-0 Size: 2 | Rated current Iu: 160 A | Terminals: Box terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3442-2NE10-0 Size: 2 | Rated current Iu: 160 A | Terminals: Box terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD2832-0NE10-0 Size: 2 | Rated current Iu: 80 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD2842-0NE10-0 Size: 2 | Rated current Iu: 80 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3032-0NE10-0 Size: 2 | Rated current Iu: 100 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3042-0NE10-0 Size: 2 | Rated current Iu: 100 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3232-0NE10-0 Size: 2 | Rated current Iu: 125 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3242-0NE10-0 Size: 2 | Rated current Iu: 125 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3432-0NE10-0 Size: 2 | Rated current Iu: 160 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3442-0NE10-0 Size: 2 | Rated current Iu: 160 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3632-0NE10-0 Size: 2 | Rated current Iu: 200 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3642-0NE10-0 Size: 2 | Rated current Iu: 200 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3832-0NE10-0 Size: 2 | Rated current Iu: 250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3842-0NE10-0 Size: 2 | Rated current Iu: 250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3632-0PE10-0 Size: 3 | Rated current Iu: 200 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3642-0PE10-0 Size: 3 | Rated current Iu: 200 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD3832-0PE10-0 Size: 3 | Rated current Iu: 250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD3842-0PE10-0 Size: 3 | Rated current Iu: 250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4032-0PE10-0 Size: 3 | Rated current Iu: 315 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4042-0PE10-0 Size: 3 | Rated current Iu: 315 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4232-0PE10-0 Size: 3 | Rated current Iu: 400 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4242-0PE10-0 Size: 3 | Rated current Iu: 400 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4432-0PE10-0 Size: 3 | Rated current Iu: 500 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4442-0PE10-0 Size: 3 | Rated current Iu: 500 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4432-0QE10-0 Size: 4 | Rated current Iu: 500 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4442-0QE10-0 Size: 4 | Rated current Iu: 500 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4632-0QE10-0 Size: 4 | Rated current Iu: 630 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4642-0QE10-0 Size: 4 | Rated current Iu: 630 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD4832-0QE10-0 Size: 4 | Rated current Iu: 800 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD4842-0QE10-0 Size: 4 | Rated current Iu: 800 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD5032-0QE10-0 Size: 4 | Rated current Iu: 1000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD5042-0QE10-0 Size: 4 | Rated current Iu: 1000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD5032-0RE10-0 Size: 5 | Rated current Iu: 1000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD5042-0RE10-0 Size: 5 | Rated current Iu: 1000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD5232-0RE10-0 Size: 5 | Rated current Iu: 1250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD5242-0RE10-0 Size: 5 | Rated current Iu: 1250 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD5432-0RE10-0 Size: 5 | Rated current Iu: 1600 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD5442-0RE10-0 Size: 5 | Rated current Iu: 1600 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
3KD5632-0RE10-0 Size: 5 | Rated current Iu: 2000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 3P | Operating mechanism: Front left, gray
3KD5642-0RE10-0 Size: 5 | Rated current Iu: 2000 A | Terminals: Flat terminals | Application: AC/DC | Poles: 4P | Operating mechanism: Front left, gray
