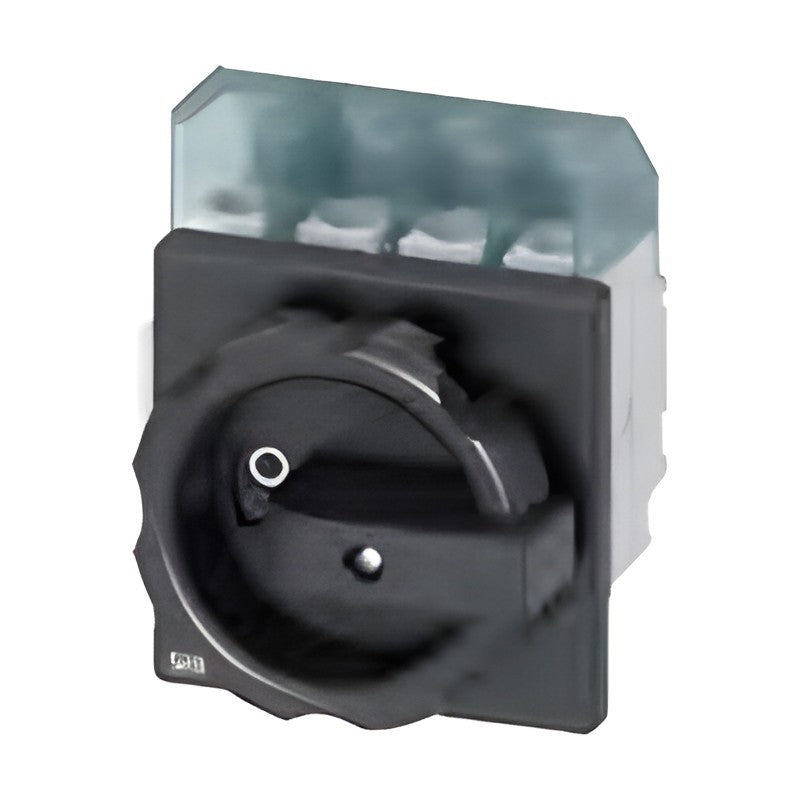

Siemens SENTRON 3LD2 Main Control & EMERGENCY-STOP Switches (16–250 A)

Siemens SENTRON 3LD2 Main Control & EMERGENCY-STOP Switches (16–250 A)

Siemens SENTRON 3LD2 fuseless main control and EMERGENCY-STOP switches, 16 to 250 A, for front mounting, floor mounting with door-coupling mechanism and installation in distribution boards.

Key features

  • Uninterrupted current Iu 16 … 250 A at AC-21A, 380 … 440 V; 25 … 50 kArms
  • 3-pole, 3-pole + N and 6-pole versions, with or without 1 NO + 1 NC auxiliary switch
  • Rotary or knob-operated mechanisms, four-hole or center-hole (Ø 22.5 mm) mounting
  • Black handles for main control switches, red/yellow for EMERGENCY-STOP switches
  • 8-pole 3LD2230-8VQ11-0AF6 DC isolator for 800 V DC, 32 A (DC-21A)
  • Terminal covers for the infeed side included

Specifications

Brand Siemens SENTRON
Series 3LD2
Catalog chapter 8 Switch Disconnectors
Product group Fuseless switch disconnectors
Standard IEC 60947-3
Short-circuit rating 25 … 50 kArms
Scope of supply Terminal covers for infeed side
Source Siemens Catalog LV 10 · 2026, p. 652-669
3LD2003-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2003-1TP51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2003-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2003-2EP51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2103-1TP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2103-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2103-2EP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-3VK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2103-4VP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2203-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2203-1TP51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2203-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2203-3VK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2504-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2504-1TP51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2504-1TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2504-3VK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2704-0TK51 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2704-1TP51 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2804-0TK51 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2804-1TP51 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2054-1TP51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2054-2EP51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2154-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2154-1TP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2154-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2154-2EP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2254-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2254-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2555-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2022-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2022-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2122-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2122-1TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2122-3VK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2222-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2305-0TK11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2305-1TL11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2305-3VK11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2405-0TK11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2405-1TL11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2405-3VK11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2050-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2050-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2150-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2250-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2003-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2003-1TP53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2003-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2003-2EP53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2103-1TP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2103-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2103-2EP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-3VK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2103-4VP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2203-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2203-1TP53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2203-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2203-3VK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2504-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2504-1TP53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2504-1TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2504-3VK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2704-0TK53 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2704-1TP53 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2804-0TK53 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2804-1TP53 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2054-1TP53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2054-2EP53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2154-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2154-1TP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2154-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2154-2EP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2254-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2254-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2555-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2022-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2022-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2122-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2122-1TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2122-3VK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2222-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2305-0TK13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2305-1TL13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2305-3VK13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2405-0TK13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2405-1TL13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2405-3VK13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2050-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2050-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2150-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2250-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2013-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2013-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2113-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2113-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2113-3VK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2113-4VP51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2213-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2213-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2514-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2514-1TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2714-0TK51 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2814-0TK51 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2044-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2044-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2144-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2144-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2244-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2244-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2545-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2318-0TK11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2318-1TL11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2318-3VK11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2418-0TK11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2418-1TL11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2418-3VK11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2017-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2017-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2217-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2217-1TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2517-0TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2517-1TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2013-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2013-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2113-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2113-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2113-3VK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2113-4VP53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2213-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2213-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2514-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2514-1TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2714-0TK53 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2814-0TK53 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2044-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2044-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2144-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2144-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2244-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2244-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2545-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2318-0TK13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2318-1TL13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2318-3VK13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2418-0TK13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2418-1TL13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2418-3VK13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2017-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2017-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2217-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2217-1TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2517-0TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2517-1TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2030-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2030-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2130-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2230-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2530-0TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2730-0TK11 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2830-0TK11 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2330-0TK11 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2430-0TK11 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2030-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2030-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2130-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2230-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2530-0TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2730-0TK13 Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2830-0TK13 Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2330-0TK13 Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2430-0TK13 Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2230-8VQ11-0AF6 Rated current Iu: 32 A (DC-21A, 800 V DC) | Power AC-23A/AC-3: 16 A at DC-22A, 800 V DC | Mounting: Distribution board | Operator: Knob (DC isolator, 800 V DC) | Handle: Black | Poles / aux.: 8P, aux. None
Switch DisconnectorsSiemens
179 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3LD2 Main Control & EMERGENCY-STOP Switches (16–250 A)

Brand Siemens·Switch Disconnectors

Available part numbers (179)

3LD2003-0TK51, 3LD2003-1TP51, 3LD2003-1TL51, 3LD2003-2EP51, 3LD2103-0TK51, 3LD2103-1TP51, 3LD2103-1TL51, 3LD2103-2EP51, 3LD2103-3VK51, 3LD2103-4VP51 + 169 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3LD2003-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2003-1TP51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2003-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2003-2EP51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2103-1TP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2103-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2103-2EP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-3VK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2103-4VP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2203-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2203-1TP51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2203-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2203-3VK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2504-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2504-1TP51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2504-1TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2504-3VK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2704-0TK51Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2704-1TP51Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2804-0TK51Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2804-1TP51Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2054-1TP51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2054-2EP51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2154-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2154-1TP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2154-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2154-2EP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2254-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2254-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2555-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2022-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2022-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2122-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2122-1TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2122-3VK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2222-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2305-0TK11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2305-1TL11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2305-3VK11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2405-0TK11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2405-1TL11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2405-3VK11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2050-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2050-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2150-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2250-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2003-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2003-1TP53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2003-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2003-2EP53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2103-1TP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2103-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2103-2EP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2103-3VK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2103-4VP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2203-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2203-1TP53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2203-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2203-3VK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2504-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2504-1TP53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2504-1TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2504-3VK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2704-0TK53Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2704-1TP53Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2804-0TK53Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2804-1TP53Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Front, four-hole | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2054-1TP53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2054-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2054-2EP53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2154-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2154-1TP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. 1 NO + 1 NC
3LD2154-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2154-2EP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. 1 NO + 1 NC
3LD2254-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2254-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2555-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2022-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2022-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2122-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2122-1TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2122-3VK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2222-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2305-0TK13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2305-1TL13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2305-3VK13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2405-0TK13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2405-1TL13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2405-3VK13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Front, four-hole | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2050-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2050-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2150-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2250-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Front, center-hole Ø 22.5 mm | Operator: Knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2013-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2013-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2113-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2113-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2113-3VK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2113-4VP51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2213-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2213-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2514-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2514-1TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2714-0TK51Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2814-0TK51Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2044-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2044-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2144-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2144-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2244-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2244-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2545-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2318-0TK11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2318-1TL11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2318-3VK11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2418-0TK11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2418-1TL11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2418-3VK11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Black (main control) | Poles / aux.: 6P, aux. None
3LD2017-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2017-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2217-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2217-1TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2517-0TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2517-1TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2013-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2013-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2113-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2113-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2113-3VK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2113-4VP53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. 1 NO + 1 NC
3LD2213-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2213-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2514-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2514-1TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2714-0TK53Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2814-0TK53Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Floor, four-hole | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2044-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2044-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2144-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2144-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2244-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2244-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2545-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, center-hole Ø 22.5 mm | Operator: Door-coupling rotary | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2318-0TK13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2318-1TL13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2318-3VK13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2418-0TK13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2418-1TL13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2418-3VK13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Floor, four-hole | Operator: Door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 6P, aux. None
3LD2017-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2017-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2217-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2217-1TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2517-0TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2517-1TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Floor, four-hole | Operator: Defeatable door-coupling knob | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2030-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2030-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P+N, aux. None
3LD2130-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2230-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2530-0TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2730-0TK11Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2830-0TK11Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2330-0TK11Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2430-0TK11Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Black (main control) | Poles / aux.: 3P, aux. None
3LD2030-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2030-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P+N, aux. None
3LD2130-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9.5 kW/7.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2230-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2530-0TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2730-0TK13Rated current Iu: 100 A | Power AC-23A/AC-3: 37 kW/30 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2830-0TK13Rated current Iu: 125 A | Power AC-23A/AC-3: 45 kW/37 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2330-0TK13Rated current Iu: 160 A | Power AC-23A/AC-3: 75 kW/50 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2430-0TK13Rated current Iu: 250 A | Power AC-23A/AC-3: 132 kW/110 kW | Mounting: Distribution board | Operator: Knob with masking plate | Handle: Red/yellow (EMERGENCY-STOP) | Poles / aux.: 3P, aux. None
3LD2230-8VQ11-0AF6Rated current Iu: 32 A (DC-21A, 800 V DC) | Power AC-23A/AC-3: 16 A at DC-22A, 800 V DC | Mounting: Distribution board | Operator: Knob (DC isolator, 800 V DC) | Handle: Black | Poles / aux.: 8P, aux. None

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
