Siemens SENTRON 3LD3 Main Control & EMERGENCY-STOP Switches (16–63 A)

Siemens SENTRON 3LD3 Main Control & EMERGENCY-STOP Switches (16–63 A)

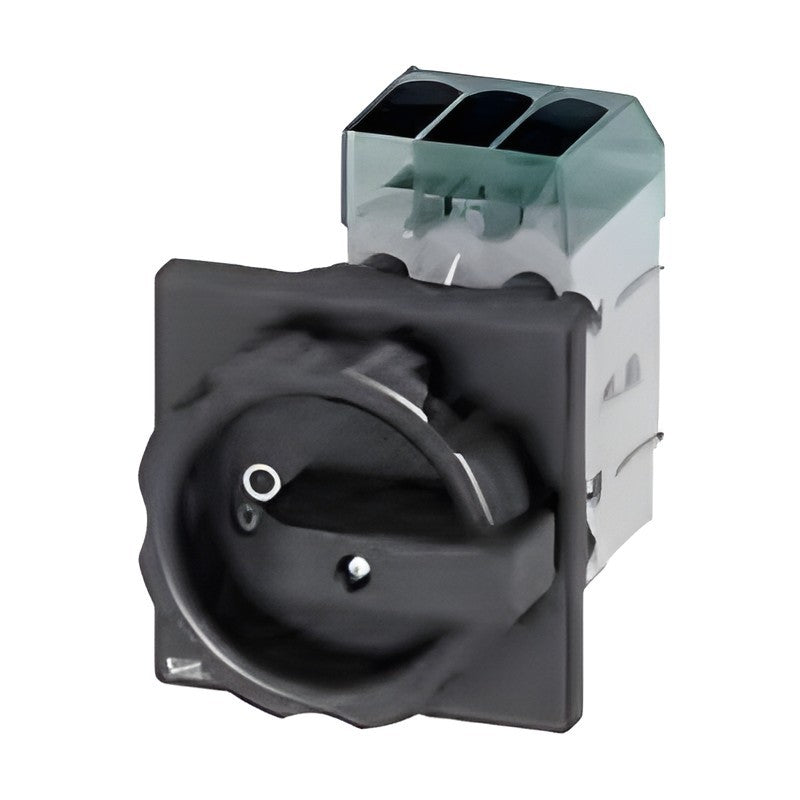

Siemens SENTRON 3LD3 fuseless main control and EMERGENCY-STOP switches, 16 to 63 A, 3-pole or 3-pole + N, for front, floor and distribution-board mounting.

Key features

  • Uninterrupted current Iu 16, 25, 32, 40 and 63 A at AC-21A, 380 … 440 V
  • Rated short-time withstand 10 kArms
  • Rotary or knob-operated mechanisms, black (main control) or red/yellow (EMERGENCY-STOP)
  • Variants with 1 NO + 1 NC auxiliary switch and 3P+N versions
  • Door-coupling (floor-mounting), distribution-board and basic-switch versions
  • Terminal covers for the infeed side included

Specifications

Brand Siemens SENTRON
Series 3LD3
Product Main control / EMERGENCY-STOP switch
Short-circuit rating 10 kArms
Catalog chapter 8 Switch Disconnectors
Product group Fuseless switch disconnectors
Standard IEC 60947-3
Rating basis AC-21A / AC-23A / AC-3 at 380 … 440 V
Scope of supply Terminal covers for infeed side
Source Siemens Catalog LV 10 · 2026, p. 642-647
3LD3054-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3054-1TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3054-0TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3054-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3054-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-1TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-0TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3154-1TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3154-0TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3154-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3154-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-1TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-0TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3254-1TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3254-0TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3254-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3254-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-1TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-0TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-0TK51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3354-1TK51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3354-0TL51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3354-1TL51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3354-0TK53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-1TK53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-0TL53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-1TL53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3454-1TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3454-0TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3454-1TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3454-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-1TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-0TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-1TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3050-1TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3050-0TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3050-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3050-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-1TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-0TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3150-1TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3150-0TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3150-1TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3150-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-1TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-0TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-1TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3250-1TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3250-0TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3250-1TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3250-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-1TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-0TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-1TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-0TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3350-1TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3350-0TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3350-1TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3350-0TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-1TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-0TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-1TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-0TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3450-1TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3450-0TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3450-1TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3450-0TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-1TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-0TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-1TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-0TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3048-1TK51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3048-0TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3048-1TL51 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3048-0TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-1TK53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-0TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-1TL53 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-0TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3148-1TK51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3148-0TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3148-1TL51 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3148-0TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-1TK53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-0TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-1TL53 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-0TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3248-1TK51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3248-0TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3248-1TL51 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3248-0TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-1TK53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-0TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-1TL53 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-0TK51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3348-1TK51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3348-0TL51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3348-1TL51 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3348-0TK53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-1TK53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-0TL53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-1TL53 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-0TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3448-1TK51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3448-0TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3448-1TL51 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3448-0TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-1TK53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-0TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-1TL53 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3040-1TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3040-0TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3040-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3040-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-1TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-0TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3140-1TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3140-0TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3140-1TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3140-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-1TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-0TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-1TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3240-1TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3240-0TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3240-1TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3240-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-1TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-0TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-1TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-0TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3340-1TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3340-0TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3340-1TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3340-0TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-1TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-0TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-1TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-0TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3440-1TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3440-0TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3440-1TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3440-0TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-1TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-0TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-1TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-0TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3030-1TK11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3030-0TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3030-1TL11 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3030-0TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-1TK13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-0TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-1TL13 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-0TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3130-1TK11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3130-0TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3130-1TL11 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3130-0TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-1TK13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-0TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-1TL13 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-0TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3230-1TK11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3230-0TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3230-1TL11 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3230-0TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-1TK13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-0TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-1TL13 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-0TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3330-1TK11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3330-0TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3330-1TL11 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3330-0TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-1TK13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-0TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-1TL13 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-0TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3430-1TK11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3430-0TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3430-1TL11 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3430-0TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-1TK13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-0TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-1TL13 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3010-0TK05 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3010-1TK05 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3010-0TL05 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3010-1TL05 Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3110-0TK05 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3110-1TK05 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3110-0TL05 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3110-1TL05 Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3210-0TK05 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3210-1TK05 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3210-0TL05 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3210-1TL05 Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3310-0TK05 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3310-1TK05 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3310-0TL05 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3310-1TL05 Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3410-0TK05 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3410-1TK05 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3410-0TL05 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3410-1TL05 Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
Switch DisconnectorsSiemens
220 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3LD3 Main Control & EMERGENCY-STOP Switches (16–63 A)

Brand Siemens·Switch Disconnectors

Available part numbers (220)

3LD3054-0TK51, 3LD3054-1TK51, 3LD3054-0TL51, 3LD3054-1TL51, 3LD3054-0TK53, 3LD3054-1TK53, 3LD3054-0TL53, 3LD3054-1TL53, 3LD3154-0TK51, 3LD3154-1TK51 + 210 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3LD3054-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3054-1TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3054-0TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3054-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3054-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-1TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-0TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3054-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3154-1TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3154-0TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3154-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3154-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-1TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-0TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3154-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3254-1TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3254-0TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3254-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3254-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-1TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-0TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3254-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-0TK51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3354-1TK51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3354-0TL51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3354-1TL51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3354-0TK53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-1TK53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-0TL53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3354-1TL53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3454-1TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3454-0TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3454-1TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3454-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-1TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-0TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3454-1TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Rotary, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3050-1TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3050-0TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3050-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3050-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-1TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-0TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3050-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3150-1TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3150-0TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3150-1TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3150-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-1TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-0TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3150-1TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3250-1TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3250-0TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3250-1TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3250-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-1TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-0TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3250-1TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-0TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3350-1TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3350-0TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3350-1TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3350-0TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-1TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-0TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3350-1TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-0TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3450-1TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3450-0TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3450-1TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3450-0TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-1TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-0TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3450-1TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Knob, front mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-0TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3048-1TK51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3048-0TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3048-1TL51Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3048-0TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-1TK53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-0TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3048-1TL53Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-0TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3148-1TK51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3148-0TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3148-1TL51Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3148-0TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-1TK53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-0TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3148-1TL53Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-0TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3248-1TK51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3248-0TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3248-1TL51Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3248-0TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-1TK53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-0TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3248-1TL53Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-0TK51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3348-1TK51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3348-0TL51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3348-1TL51Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3348-0TK53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-1TK53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-0TL53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3348-1TL53Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-0TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3448-1TK51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3448-0TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3448-1TL51Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3448-0TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-1TK53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-0TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3448-1TL53Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling rotary, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3040-1TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3040-0TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3040-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3040-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-1TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-0TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3040-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3140-1TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3140-0TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3140-1TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3140-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-1TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-0TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3140-1TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3240-1TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3240-0TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3240-1TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3240-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-1TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-0TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3240-1TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-0TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3340-1TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3340-0TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3340-1TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3340-0TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-1TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-0TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3340-1TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-0TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3440-1TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3440-0TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3440-1TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3440-0TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-1TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-0TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3440-1TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Door-coupling knob, floor mounting | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-0TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3030-1TK11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3030-0TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3030-1TL11Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3030-0TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-1TK13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-0TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3030-1TL13Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-0TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3130-1TK11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3130-0TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3130-1TL11Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3130-0TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-1TK13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-0TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3130-1TL13Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-0TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3230-1TK11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3230-0TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3230-1TL11Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3230-0TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-1TK13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-0TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3230-1TL13Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-0TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3330-1TK11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3330-0TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3330-1TL11Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3330-0TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-1TK13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-0TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3330-1TL13Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-0TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Black (main control)
3LD3430-1TK11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3430-0TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Black (main control)
3LD3430-1TL11Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Black (main control)
3LD3430-0TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-1TK13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-0TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: None | Handle: Red/yellow (EMERGENCY-STOP)
3LD3430-1TL13Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Distribution board, knob + plate | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: Red/yellow (EMERGENCY-STOP)
3LD3010-0TK05Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3010-1TK05Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3010-0TL05Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3010-1TL05Rated current Iu: 16 A | Power AC-23A/AC-3: 7.5 kW/5.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3110-0TK05Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3110-1TK05Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3110-0TL05Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3110-1TL05Rated current Iu: 25 A | Power AC-23A/AC-3: 9 kW/7.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3210-0TK05Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3210-1TK05Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3210-0TL05Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3210-1TL05Rated current Iu: 32 A | Power AC-23A/AC-3: 11.5 kW/9.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3310-0TK05Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3310-1TK05Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3310-0TL05Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3310-1TL05Rated current Iu: 40 A | Power AC-23A/AC-3: 18.5 kW/11.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3410-0TK05Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: None | Handle: None (basic switch)
3LD3410-1TK05Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)
3LD3410-0TL05Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: None | Handle: None (basic switch)
3LD3410-1TL05Rated current Iu: 63 A | Power AC-23A/AC-3: 22 kW/18.5 kW | Operator: Basic switch, no operating mechanism | Poles: 3P+N | Aux. contacts: 1 NO + 1 NC | Handle: None (basic switch)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
