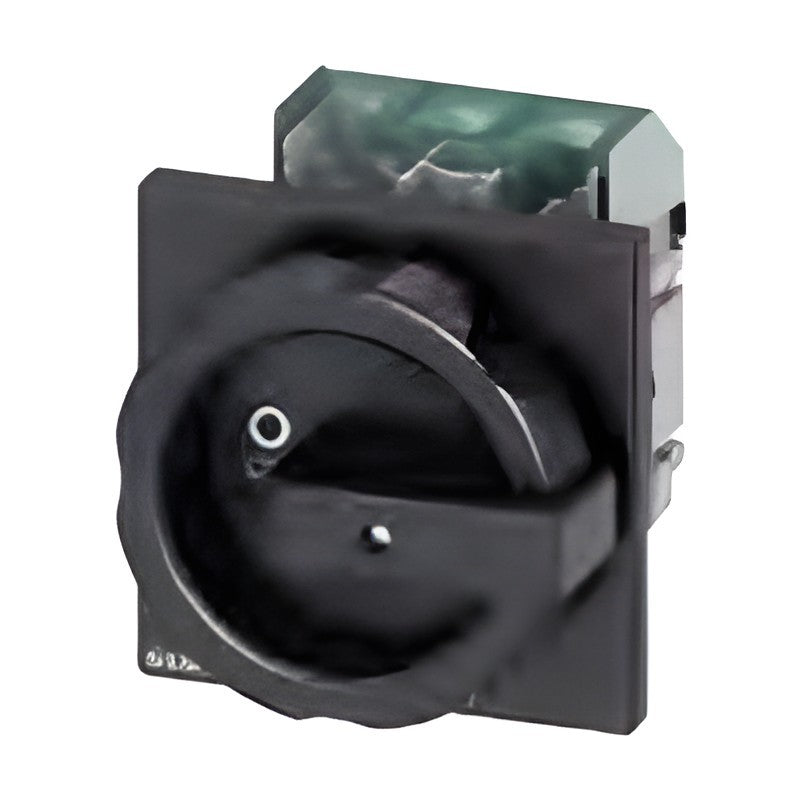

Siemens SENTRON 3LD5 UL Main Control & EMERGENCY-STOP Switches

Siemens SENTRON 3LD5 UL Main Control & EMERGENCY-STOP Switches

Siemens SENTRON 3LD5 UL-listed main control and EMERGENCY-STOP switches, 32 to 160 A, for front mounting or floor mounting with direct or door-coupling mechanism.

Key features

  • Uninterrupted current 32 … 160 A at AC-21A, 380 … 440 V
  • General-use ratings acc. to UL 489/60947-4-1, SCCR 50 … 65 kA
  • 3-pole and 3-pole + N versions
  • Black (main control) or red/yellow (EMERGENCY-STOP) operating mechanisms
  • Terminal covers for the infeed side included

Specifications

Brand Siemens SENTRON
Series 3LD5 UL
SCCR 50 … 65 kA
Catalog chapter 8 Switch Disconnectors
Product group Fuseless switch disconnectors
Certification UL 489 / UL 508
Rating basis Iu at AC-21A, P at AC-23A, 380 … 440 V
Source Siemens Catalog LV 10 · 2026, p. 682-687
3LD5020-0TK11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P, black
3LD5020-0TL11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P+N, black
3LD5020-0TK13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5020-0TL13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5220-0TK11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P, black
3LD5220-0TL11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P+N, black
3LD5220-0TK13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5220-0TL13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Front mounting | Operator: Rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5420-0TK11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5420-0TL11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5420-0TK13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5420-0TL13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5620-0TK11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5620-0TL11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5620-0TK13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5620-0TL13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5820-0TK11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5820-0TL11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5820-0TK13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5820-0TL13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Front mounting | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5000-0TK11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5000-0TL11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5000-0TK13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5000-0TL13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5200-0TK11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5200-0TL11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5200-0TK13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5200-0TL13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5400-0TK11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5400-0TL11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5400-0TK13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5400-0TL13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5600-0TK11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5600-0TL11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5600-0TK13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5600-0TL13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5800-0TK11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, black
3LD5800-0TL11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, black
3LD5800-0TK13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P, red/yellow
3LD5800-0TL13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, direct op. mechanism | Operator: Knob, four-hole | Poles / handle: 3P+N, red/yellow
3LD5010-0TK11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, black
3LD5010-0TL11 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, black
3LD5010-0TK13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5010-0TL13 Rated current Iu: 32 A | UL general-use rating: 30 A | Power AC-23A: 15 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5210-0TK11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, black
3LD5210-0TL11 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, black
3LD5210-0TK13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5210-0TL13 Rated current Iu: 63 A | UL general-use rating: 60 A | Power AC-23A: 30 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5410-0TK11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, black
3LD5410-0TL11 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, black
3LD5410-0TK13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5410-0TL13 Rated current Iu: 100 A | UL general-use rating: 100 A | Power AC-23A: 45 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5610-0TK11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, black
3LD5610-0TL11 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, black
3LD5610-0TK13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5610-0TL13 Rated current Iu: 125 A | UL general-use rating: 125 A | Power AC-23A: 55 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, red/yellow
3LD5810-0TK11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, black
3LD5810-0TL11 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, black
3LD5810-0TK13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P, red/yellow
3LD5810-0TL13 Rated current Iu: 160 A | UL general-use rating: 150 A | Power AC-23A: 75 kW | Mounting: Floor, door-coupling rotary | Operator: Door-coupling rotary, four-hole | Poles / handle: 3P+N, red/yellow
Switch DisconnectorsSiemens
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3LD5 UL Main Control & EMERGENCY-STOP Switches

Brand Siemens·Switch Disconnectors

Available part numbers (60)

3LD5020-0TK11, 3LD5020-0TL11, 3LD5020-0TK13, 3LD5020-0TL13, 3LD5220-0TK11, 3LD5220-0TL11, 3LD5220-0TK13, 3LD5220-0TL13, 3LD5420-0TK11, 3LD5420-0TL11 + 50 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
