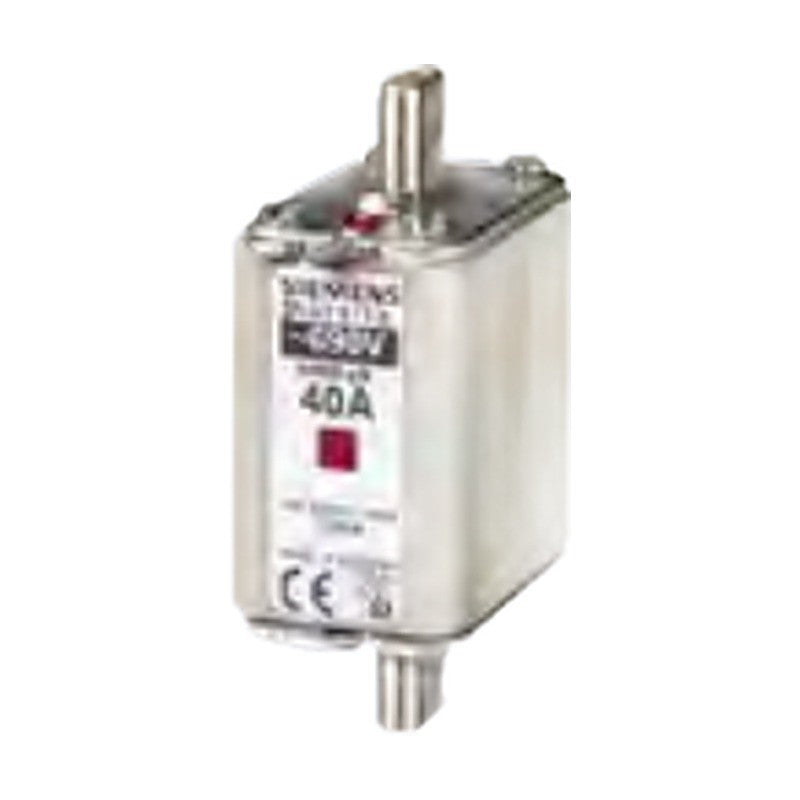

Siemens SENTRON 3NA6 LV HRC fuse links gG, insulated grip lugs

Siemens SENTRON 3NA6 LV HRC fuse links gG, insulated grip lugs

SENTRON 3NA6 LV HRC (NH) fuse links of operational class gG with combination alarm and insulated grip lugs, sizes 000 to 2.

Key features

  • Operational class gG, combination alarm (front and top indicator)
  • Insulated (live) grip lugs for safe handling
  • Sizes 000, 00, 1 and 2 from 2 A to 400 A
  • Rated voltages 400 V, 500 V and 690 V AC
  • KK variants and -7/-8 voltage variants as printed

Specifications

Brand Siemens SENTRON
System LV HRC (NH)
Operational class gG
Indicator Combination alarm
Grip lugs Insulated
Source Siemens Catalog LV 10 · 2026, p. 562-565
3NA6802 Size: 000 | Mounting width: 21 mm | Rated current: 2 A | Un AC/DC: 500 V/250 V
3NA6802-6 Size: 000 | Mounting width: 21 mm | Rated current: 2 A | Un AC/DC: 690 V/250 V
3NA6804 Size: 000 | Mounting width: 21 mm | Rated current: 4 A | Un AC/DC: 500 V/250 V
3NA6804-6 Size: 000 | Mounting width: 21 mm | Rated current: 4 A | Un AC/DC: 690 V/250 V
3NA6801 Size: 000 | Mounting width: 21 mm | Rated current: 6 A | Un AC/DC: 500 V/250 V
3NA6801-6 Size: 000 | Mounting width: 21 mm | Rated current: 6 A | Un AC/DC: 690 V/250 V
3NA6803-4 Size: 000 | Mounting width: 21 mm | Rated current: 10 A | Un AC/DC: 400 V/–
3NA6803 Size: 000 | Mounting width: 21 mm | Rated current: 10 A | Un AC/DC: 500 V/250 V
3NA6803-6 Size: 000 | Mounting width: 21 mm | Rated current: 10 A | Un AC/DC: 690 V/250 V
3NA6805-4 Size: 000 | Mounting width: 21 mm | Rated current: 16 A | Un AC/DC: 400 V/–
3NA6805 Size: 000 | Mounting width: 21 mm | Rated current: 16 A | Un AC/DC: 500 V/250 V
3NA6805-6 Size: 000 | Mounting width: 21 mm | Rated current: 16 A | Un AC/DC: 690 V/250 V
3NA6105 Size: 1 | Mounting width: 30 mm | Rated current: 16 A | Un AC/DC: 500 V/440 V
3NA6807-4 Size: 000 | Mounting width: 21 mm | Rated current: 20 A | Un AC/DC: 400 V/–
3NA6807 Size: 000 | Mounting width: 21 mm | Rated current: 20 A | Un AC/DC: 500 V/250 V
3NA6807-6 Size: 000 | Mounting width: 21 mm | Rated current: 20 A | Un AC/DC: 690 V/250 V
3NA6107 Size: 1 | Mounting width: 30 mm | Rated current: 20 A | Un AC/DC: 500 V/440 V
3NA6810-4 Size: 000 | Mounting width: 21 mm | Rated current: 25 A | Un AC/DC: 400 V/–
3NA6810 Size: 000 | Mounting width: 21 mm | Rated current: 25 A | Un AC/DC: 500 V/250 V
3NA6810-6 Size: 000 | Mounting width: 21 mm | Rated current: 25 A | Un AC/DC: 690 V/250 V
3NA6110 Size: 1 | Mounting width: 30 mm | Rated current: 25 A | Un AC/DC: 500 V/440 V
3NA6812-4 Size: 000 | Mounting width: 21 mm | Rated current: 32 A | Un AC/DC: 400 V/–
3NA6114-4 Size: 1 | Mounting width: 30 mm | Rated current: 32 A | Un AC/DC: 400 V/–
3NA6812 Size: 000 | Mounting width: 21 mm | Rated current: 32 A | Un AC/DC: 500 V/250 V
3NA6812-6 Size: 000 | Mounting width: 21 mm | Rated current: 32 A | Un AC/DC: 690 V/250 V
3NA6814-4 Size: 000 | Mounting width: 21 mm | Rated current: 35 A | Un AC/DC: 400 V/–
3NA6814 Size: 000 | Mounting width: 21 mm | Rated current: 35 A | Un AC/DC: 500 V/250 V
3NA6814-6 Size: 000 | Mounting width: 21 mm | Rated current: 35 A | Un AC/DC: 690 V/250 V
3NA6114 Size: 1 | Mounting width: 30 mm | Rated current: 35 A | Un AC/DC: 500 V/440 V
3NA6817-4 Size: 000 | Mounting width: 21 mm | Rated current: 40 A | Un AC/DC: 400 V/–
3NA6117-4 Size: 1 | Mounting width: 30 mm | Rated current: 40 A | Un AC/DC: 400 V/–
3NA6817 Size: 000 | Mounting width: 21 mm | Rated current: 40 A | Un AC/DC: 500 V/250 V
3NA6817-6KJ Size: 000 | Mounting width: 21 mm | Rated current: 40 A | Un AC/DC: 690 V/250 V
3NA6817-6 Size: 00 | Mounting width: 30 mm | Rated current: 40 A | Un AC/DC: 690 V/250 V
3NA6117 Size: 1 | Mounting width: 30 mm | Rated current: 40 A | Un AC/DC: 500 V/440 V
3NA6820-4 Size: 000 | Mounting width: 21 mm | Rated current: 50 A | Un AC/DC: 400 V/–
3NA6120-4 Size: 1 | Mounting width: 30 mm | Rated current: 50 A | Un AC/DC: 400 V/–
3NA6820 Size: 000 | Mounting width: 21 mm | Rated current: 50 A | Un AC/DC: 500 V/250 V
3NA6820-6KJ Size: 000 | Mounting width: 21 mm | Rated current: 50 A | Un AC/DC: 690 V/250 V
3NA6820-6 Size: 00 | Mounting width: 30 mm | Rated current: 50 A | Un AC/DC: 690 V/250 V
3NA6120 Size: 1 | Mounting width: 30 mm | Rated current: 50 A | Un AC/DC: 500 V/440 V
3NA6120-6 Size: 1 | Mounting width: 30 mm | Rated current: 50 A | Un AC/DC: 690 V/440 V
3NA6214 Size: 2 | Mounting width: 47.2 mm | Rated current: 35 A | Un AC/DC: 500 V/440 V
3NA6220-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 50 A | Un AC/DC: 400 V/–
3NA6220 Size: 2 | Mounting width: 47.2 mm | Rated current: 50 A | Un AC/DC: 500 V/440 V
3NA6822-4 Size: 000 | Mounting width: 21 mm | Rated current: 63 A | Un AC/DC: 400 V/–
3NA6122-4 Size: 1 | Mounting width: 30 mm | Rated current: 63 A | Un AC/DC: 400 V/–
3NA6822 Size: 000 | Mounting width: 21 mm | Rated current: 63 A | Un AC/DC: 500 V/250 V
3NA6822-6 Size: 00 | Mounting width: 30 mm | Rated current: 63 A | Un AC/DC: 690 V/250 V
3NA6122 Size: 1 | Mounting width: 30 mm | Rated current: 63 A | Un AC/DC: 500 V/440 V
3NA6122-6 Size: 1 | Mounting width: 30 mm | Rated current: 63 A | Un AC/DC: 690 V/440 V
3NA6824-4 Size: 000 | Mounting width: 21 mm | Rated current: 80 A | Un AC/DC: 400 V/–
3NA6824-4KK Size: 00 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 400 V/–
3NA6124-4 Size: 1 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 400 V/–
3NA6824 Size: 000 | Mounting width: 21 mm | Rated current: 80 A | Un AC/DC: 500 V/250 V
3NA6824-7 Size: 00 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 500 V/250 V
3NA6824-6 Size: 00 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 690 V/250 V
3NA6124 Size: 1 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 500 V/440 V
3NA6124-6 Size: 1 | Mounting width: 30 mm | Rated current: 80 A | Un AC/DC: 690 V/440 V
3NA6830-4 Size: 000 | Mounting width: 21 mm | Rated current: 100 A | Un AC/DC: 400 V/–
3NA6830-4KK Size: 00 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 400 V/–
3NA6130-4 Size: 1 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 400 V/–
3NA6830 Size: 000 | Mounting width: 21 mm | Rated current: 100 A | Un AC/DC: 500 V/250 V
3NA6830-7 Size: 00 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 500 V/250 V
3NA6830-6 Size: 00 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 690 V/250 V
3NA6130 Size: 1 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 500 V/440 V
3NA6130-6 Size: 1 | Mounting width: 30 mm | Rated current: 100 A | Un AC/DC: 690 V/440 V
3NA6832-4 Size: 00 | Mounting width: 30 mm | Rated current: 125 A | Un AC/DC: 400 V/–
3NA6832 Size: 00 | Mounting width: 30 mm | Rated current: 125 A | Un AC/DC: 500 V/250 V
3NA6132 Size: 1 | Mounting width: 30 mm | Rated current: 125 A | Un AC/DC: 500 V/440 V
3NA6132-6 Size: 1 | Mounting width: 30 mm | Rated current: 125 A | Un AC/DC: 690 V/440 V
3NA6836-4 Size: 00 | Mounting width: 30 mm | Rated current: 160 A | Un AC/DC: 400 V/–
3NA6136-4 Size: 1 | Mounting width: 30 mm | Rated current: 160 A | Un AC/DC: 400 V/–
3NA6836 Size: 00 | Mounting width: 30 mm | Rated current: 160 A | Un AC/DC: 500 V/250 V
3NA6136 Size: 1 | Mounting width: 30 mm | Rated current: 160 A | Un AC/DC: 500 V/440 V
3NA6136-6 Size: 1 | Mounting width: 30 mm | Rated current: 160 A | Un AC/DC: 690 V/440 V
3NA6222-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 63 A | Un AC/DC: 400 V/–
3NA6222 Size: 2 | Mounting width: 47.2 mm | Rated current: 63 A | Un AC/DC: 500 V/440 V
3NA6224-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 80 A | Un AC/DC: 400 V/–
3NA6224 Size: 2 | Mounting width: 47.2 mm | Rated current: 80 A | Un AC/DC: 500 V/440 V
3NA6224-6 Size: 2 | Mounting width: 47.2 mm | Rated current: 80 A | Un AC/DC: 690 V/440 V
3NA6230-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 100 A | Un AC/DC: 400 V/–
3NA6230 Size: 2 | Mounting width: 47.2 mm | Rated current: 100 A | Un AC/DC: 500 V/440 V
3NA6230-6 Size: 2 | Mounting width: 47.2 mm | Rated current: 100 A | Un AC/DC: 690 V/440 V
3NA6232-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC/DC: 400 V/–
3NA6232 Size: 2 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC/DC: 500 V/440 V
3NA6232-6 Size: 2 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC/DC: 690 V/440 V
3NA6236-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC/DC: 400 V/–
3NA6236 Size: 2 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC/DC: 500 V/440 V
3NA6236-6 Size: 2 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC/DC: 690 V/440 V
3NA6140-4 Size: 1 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 400 V/–
3NA6240-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 400 V/–
3NA6140 Size: 1 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 500 V/440 V
3NA6240 Size: 2 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 500 V/440 V
3NA6140-6 Size: 1 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 690 V/440 V
3NA6240-6 Size: 2 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC/DC: 690 V/440 V
3NA6142-4 Size: 1 | Mounting width: 47.2 mm | Rated current: 224 A | Un AC/DC: 400 V/–
3NA6242-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 224 A | Un AC/DC: 400 V/–
3NA6142 Size: 1 | Mounting width: 47.2 mm | Rated current: 224 A | Un AC/DC: 500 V/440 V
3NA6242 Size: 2 | Mounting width: 47.2 mm | Rated current: 224 A | Un AC/DC: 500 V/440 V
3NA6242-6 Size: 2 | Mounting width: 57.8 mm | Rated current: 224 A | Un AC/DC: 690 V/440 V
3NA6144-4 Size: 1 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC/DC: 400 V/–
3NA6244-4 Size: 2 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC/DC: 400 V/–
3NA6144 Size: 1 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC/DC: 500 V/440 V
3NA6244 Size: 2 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC/DC: 500 V/440 V
3NA6244-6 Size: 2 | Mounting width: 57.8 mm | Rated current: 250 A | Un AC/DC: 690 V/440 V
3NA6250-4 Size: 2 | Mounting width: 57.8 mm | Rated current: 300 A | Un AC/DC: 400 V/–
3NA6250 Size: 2 | Mounting width: 57.8 mm | Rated current: 300 A | Un AC/DC: 500 V/440 V
3NA6250-6 Size: 2 | Mounting width: 57.8 mm | Rated current: 300 A | Un AC/DC: 690 V/440 V
3NA6252-4 Size: 2 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC/DC: 400 V/–
3NA6252 Size: 2 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC/DC: 500 V/440 V
3NA6252-6 Size: 2 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC/DC: 690 V/440 V
3NA6254-4 Size: 2 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC/DC: 400 V/–
3NA6254 Size: 2 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC/DC: 500 V/440 V
3NA6260-4 Size: 2 | Mounting width: 57.8 mm | Rated current: 400 A | Un AC/DC: 400 V/–
