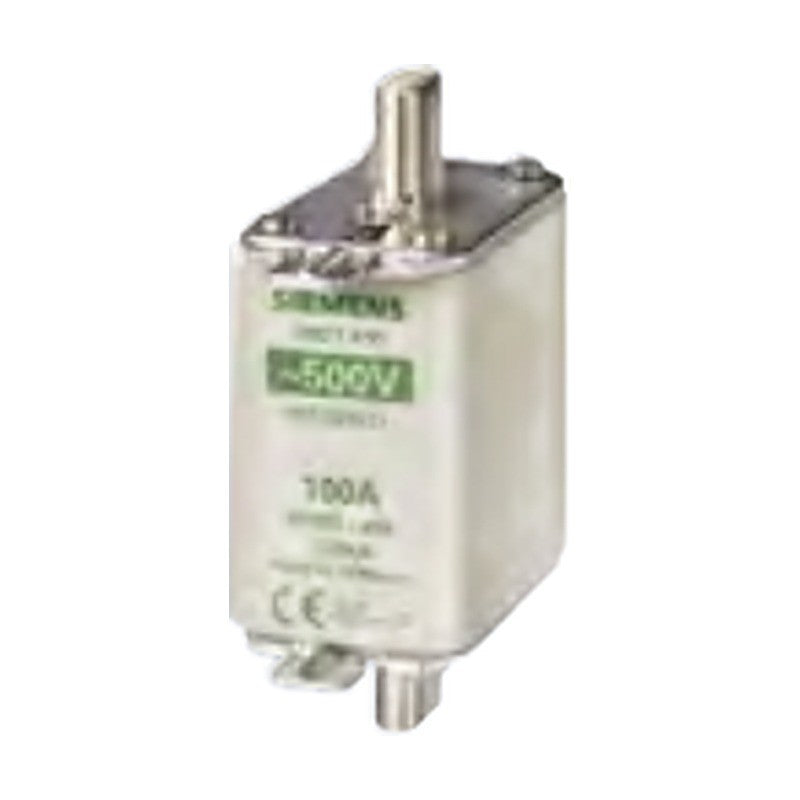

Siemens SENTRON 3ND LV HRC fuse links aM, front indicator (motor)

Siemens SENTRON 3ND LV HRC fuse links aM, front indicator (motor)

SENTRON 3ND LV HRC fuse links of operational class aM (partial range, motor circuit protection) with front indicator, sizes 000 to 3.

Key features

  • Operational class aM for short-circuit protection of motor circuits
  • Front indicator, non-insulated grip lugs
  • Sizes 000 to 3, 6 A to 630 A
  • Rated voltages 500 V and 690 V AC

Specifications

Brand Siemens SENTRON
System LV HRC (NH)
Operational class aM
Indicator Front indicator
Grip lugs Non-insulated
Source Siemens Catalog LV 10 · 2026, p. 574
3ND1801 Size: 000 | Mounting width: 21 mm | Rated current: 6 A | Un AC: 500 V
3ND1803 Size: 000 | Mounting width: 21 mm | Rated current: 10 A | Un AC: 500 V
3ND1805 Size: 000 | Mounting width: 21 mm | Rated current: 16 A | Un AC: 500 V
3ND1807 Size: 000 | Mounting width: 21 mm | Rated current: 20 A | Un AC: 500 V
3ND1810 Size: 000 | Mounting width: 21 mm | Rated current: 25 A | Un AC: 500 V
3ND1812 Size: 000 | Mounting width: 21 mm | Rated current: 32 A | Un AC: 500 V
3ND1814 Size: 000 | Mounting width: 21 mm | Rated current: 35 A | Un AC: 500 V
3ND1817 Size: 000 | Mounting width: 21 mm | Rated current: 40 A | Un AC: 500 V
3ND1820 Size: 000 | Mounting width: 21 mm | Rated current: 50 A | Un AC: 500 V
3ND1822 Size: 000 | Mounting width: 21 mm | Rated current: 63 A | Un AC: 500 V
3ND2122 Size: 1 | Mounting width: 30 mm | Rated current: 63 A | Un AC: 690 V
3ND1824 Size: 000 | Mounting width: 21 mm | Rated current: 80 A | Un AC: 500 V
3ND2124 Size: 1 | Mounting width: 30 mm | Rated current: 80 A | Un AC: 690 V
3ND1830-8 Size: 000 | Mounting width: 21 mm | Rated current: 100 A | Un AC: 500 V
3ND1830 Size: 00 | Mounting width: 30 mm | Rated current: 100 A | Un AC: 500 V
3ND2130 Size: 1 | Mounting width: 30 mm | Rated current: 100 A | Un AC: 690 V
3ND1832 Size: 00 | Mounting width: 30 mm | Rated current: 125 A | Un AC: 500 V
3ND2132 Size: 1 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC: 690 V
3ND2232 Size: 2 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC: 690 V
3ND1836 Size: 00 | Mounting width: 30 mm | Rated current: 160 A | Un AC: 500 V
3ND2136 Size: 1 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC: 690 V
3ND2236 Size: 2 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC: 690 V
3ND2140 Size: 1 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC: 690 V
3ND2240 Size: 2 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC: 690 V
3ND2144 Size: 1 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC: 690 V
3ND2244 Size: 2 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC: 690 V
3ND2252 Size: 2 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC: 690 V
3ND2352 Size: 3 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC: 690 V
3ND2254 Size: 2 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC: 690 V
3ND2354 Size: 3 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC: 690 V
3ND2260 Size: 2 | Mounting width: 57.8 mm | Rated current: 400 A | Un AC: 690 V
3ND2360 Size: 3 | Mounting width: 57.8 mm | Rated current: 400 A | Un AC: 690 V
3ND1365 Size: 3 | Mounting width: 71.2 mm | Rated current: 500 A | Un AC: 690 V
3ND1372 Size: 3 | Mounting width: 71.2 mm | Rated current: 630 A | Un AC: 690 V
Fuses & Fuse HoldersSiemens
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3ND LV HRC fuse links aM, front indicator (motor)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (34)

3ND1801, 3ND1803, 3ND1805, 3ND1807, 3ND1810, 3ND1812, 3ND1814, 3ND1817, 3ND1820, 3ND1822 + 24 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3ND1801Size: 000 | Mounting width: 21 mm | Rated current: 6 A | Un AC: 500 V
3ND1803Size: 000 | Mounting width: 21 mm | Rated current: 10 A | Un AC: 500 V
3ND1805Size: 000 | Mounting width: 21 mm | Rated current: 16 A | Un AC: 500 V
3ND1807Size: 000 | Mounting width: 21 mm | Rated current: 20 A | Un AC: 500 V
3ND1810Size: 000 | Mounting width: 21 mm | Rated current: 25 A | Un AC: 500 V
3ND1812Size: 000 | Mounting width: 21 mm | Rated current: 32 A | Un AC: 500 V
3ND1814Size: 000 | Mounting width: 21 mm | Rated current: 35 A | Un AC: 500 V
3ND1817Size: 000 | Mounting width: 21 mm | Rated current: 40 A | Un AC: 500 V
3ND1820Size: 000 | Mounting width: 21 mm | Rated current: 50 A | Un AC: 500 V
3ND1822Size: 000 | Mounting width: 21 mm | Rated current: 63 A | Un AC: 500 V
3ND2122Size: 1 | Mounting width: 30 mm | Rated current: 63 A | Un AC: 690 V
3ND1824Size: 000 | Mounting width: 21 mm | Rated current: 80 A | Un AC: 500 V
3ND2124Size: 1 | Mounting width: 30 mm | Rated current: 80 A | Un AC: 690 V
3ND1830-8Size: 000 | Mounting width: 21 mm | Rated current: 100 A | Un AC: 500 V
3ND1830Size: 00 | Mounting width: 30 mm | Rated current: 100 A | Un AC: 500 V
3ND2130Size: 1 | Mounting width: 30 mm | Rated current: 100 A | Un AC: 690 V
3ND1832Size: 00 | Mounting width: 30 mm | Rated current: 125 A | Un AC: 500 V
3ND2132Size: 1 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC: 690 V
3ND2232Size: 2 | Mounting width: 47.2 mm | Rated current: 125 A | Un AC: 690 V
3ND1836Size: 00 | Mounting width: 30 mm | Rated current: 160 A | Un AC: 500 V
3ND2136Size: 1 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC: 690 V
3ND2236Size: 2 | Mounting width: 47.2 mm | Rated current: 160 A | Un AC: 690 V
3ND2140Size: 1 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC: 690 V
3ND2240Size: 2 | Mounting width: 47.2 mm | Rated current: 200 A | Un AC: 690 V
3ND2144Size: 1 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC: 690 V
3ND2244Size: 2 | Mounting width: 47.2 mm | Rated current: 250 A | Un AC: 690 V
3ND2252Size: 2 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC: 690 V
3ND2352Size: 3 | Mounting width: 57.8 mm | Rated current: 315 A | Un AC: 690 V
3ND2254Size: 2 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC: 690 V
3ND2354Size: 3 | Mounting width: 57.8 mm | Rated current: 355 A | Un AC: 690 V
3ND2260Size: 2 | Mounting width: 57.8 mm | Rated current: 400 A | Un AC: 690 V
3ND2360Size: 3 | Mounting width: 57.8 mm | Rated current: 400 A | Un AC: 690 V
3ND1365Size: 3 | Mounting width: 71.2 mm | Rated current: 500 A | Un AC: 690 V
3ND1372Size: 3 | Mounting width: 71.2 mm | Rated current: 630 A | Un AC: 690 V
