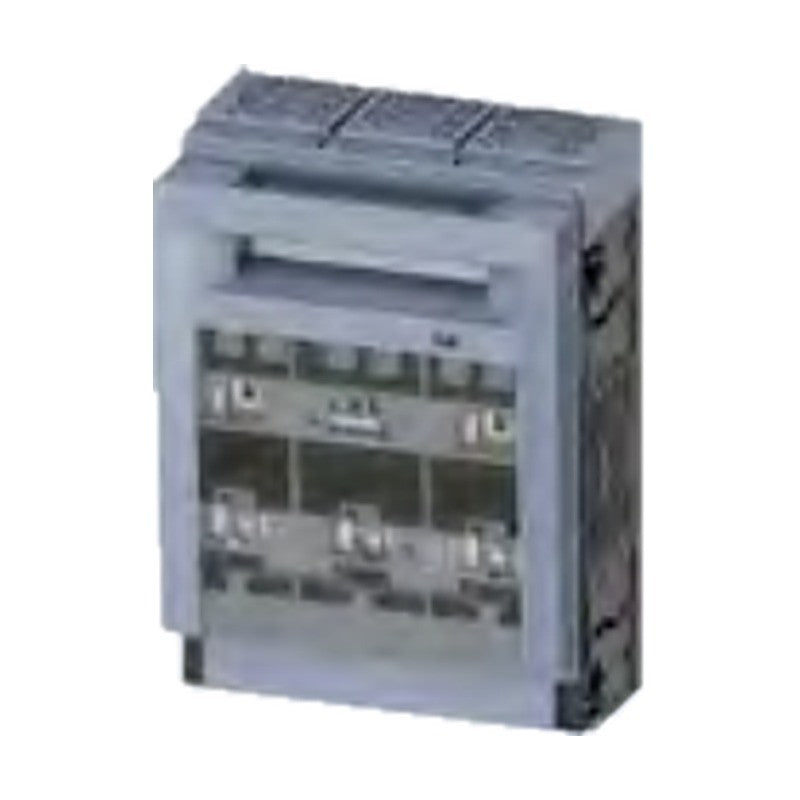

Siemens SENTRON 3NP1 Fuse Switch Disconnectors (NH000–NH3, 125–630 A)

Siemens SENTRON 3NP1 Fuse Switch Disconnectors (NH000–NH3, 125–630 A)

Siemens SENTRON 3NP1 fuse switch disconnectors for LV HRC (NH) fuses size NH000 to NH3, 125 to 630 A, for floor or busbar mounting.

Key features

  • Sizes NH000 (narrow and standard), NH00, NH1, NH2 and NH3; 125 … 630 A
  • Box or flat terminals; 1-, 3- and 4-pole versions
  • Floor mounting or 60/40 mm busbar mounting with reach-around protection (Siemens 8US or Rittal)
  • Optional mechanical fuse monitoring (MFM) or electronic fuse monitoring EFM10/EFM15/EFM20
  • Online configurator available for further variants

Specifications

Brand Siemens SENTRON
Series 3NP1
Catalog chapter 8 Switch Disconnectors
Product group Fuse switch disconnectors
Standard IEC 60947-3
Fuse links LV HRC acc. to IEC 60269-2
Configurator Online 3NP1 configurator (Siemens)
Source Siemens Catalog LV 10 · 2026, p. 712-713
3NP1131-1CA10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1141-1DA10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1151-1DA10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1161-1DA10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1121-1CA20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1131-1CA20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1141-1DA20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1151-1DA20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1161-1DA20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1133-1CA10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1DA10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1DA10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1DA10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1113-1CA20 Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1CA20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1CA20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1DA20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1DA20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1DA20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1134-1CA10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1DA10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1DA10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1DA10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1124-1CA20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1134-1CA20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1DA20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1DA20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1DA20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1133-1CA11 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1DA11 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1DA11 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1DA11 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1CA21 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1DA21 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1DA21 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1DA21 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1CA12 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1DA12 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1DA12 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1DA12 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1CA22 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1CA22 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1DA22 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1DA22 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1DA22 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1131-1CA14 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1141-1DA14 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1151-1DA14 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1161-1DA14 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1121-1CA24 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1131-1CA24 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1141-1DA24 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1151-1DA24 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1161-1DA24 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1133-1CA14 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1DA14 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1DA14 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1DA14 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1123-1CA24 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1CA24 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1DA24 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1DA24 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1DA24 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1CA13 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1DA13 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1DA13 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1DA13 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1CA23 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1CA23 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1DA23 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1DA23 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1DA23 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BC10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1BC10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1BC10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1BC10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1113-1BC20 Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar (8US/Rittal), outlet bottom | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1BC20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BC20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1BC20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1BC20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1BC20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1134-1BC10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1BC10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1BC10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1BC10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1124-1BC20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1134-1BC20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1BC20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1BC20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1BC20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1133-1BC11 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1BC11 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1BC11 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1BC11 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BC21 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1BC21 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1BC21 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1BC21 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BC12 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1BC12 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1BC12 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1BC12 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1BC22 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BC22 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1BC22 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1BC22 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1BC22 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BC14 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1BC14 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1BC14 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1BC14 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1123-1BC24 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1BC24 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1BC24 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1BC24 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1BC24 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1BC13 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1BC13 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1BC13 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1BC13 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1BC23 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BC23 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1BC23 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1BC23 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1BC23 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JC10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1JC10 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1JC10 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1JC10 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1JC20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JC20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1JC20 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1JC20 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1JC20 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JC11 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1JC11 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1JC11 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1JC11 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JC21 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1JC21 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1JC21 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1JC21 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JC12 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1JC12 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1JC12 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1JC12 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1JC22 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JC22 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1JC22 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1JC22 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1JC22 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JC13 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1JC13 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1JC13 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1JC13 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1JC23 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JC23 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1JC23 Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1JC23 Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1JC23 Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BB10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1BB20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BB20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BB11 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BB21 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BB12 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1BB22 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BB22 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BB13 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1BB23 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BB23 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JB10 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1JB20 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JB20 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JB11 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JB21 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JB12 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1JB22 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JB22 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JB13 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1JB23 Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JB23 Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1113-2BC20 Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar (8US/Rittal), outlet top | Fuse monitoring: Without | Poles: 3-pole
Switch DisconnectorsSiemens
184 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3NP1 Fuse Switch Disconnectors (NH000–NH3, 125–630 A)

Brand Siemens·Switch Disconnectors

Available part numbers (184)

3NP1131-1CA10, 3NP1141-1DA10, 3NP1151-1DA10, 3NP1161-1DA10, 3NP1121-1CA20, 3NP1131-1CA20, 3NP1141-1DA20, 3NP1151-1DA20, 3NP1161-1DA20, 3NP1133-1CA10 + 174 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NP1131-1CA10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1141-1DA10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1151-1DA10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1161-1DA10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1121-1CA20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1131-1CA20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1141-1DA20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1151-1DA20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1161-1DA20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 1-pole
3NP1133-1CA10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1DA10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1DA10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1DA10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1113-1CA20Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1CA20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1CA20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1DA20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1DA20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1DA20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 3-pole
3NP1134-1CA10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1DA10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1DA10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1DA10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1124-1CA20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1134-1CA20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1DA20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1DA20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1DA20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: Without | Poles: 4-pole
3NP1133-1CA11Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1DA11Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1DA11Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1DA11Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1CA21Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1DA21Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1DA21Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1DA21Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1CA12Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1DA12Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1DA12Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1DA12Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1CA22Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1CA22Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1DA22Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1DA22Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1DA22Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1131-1CA14Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1141-1DA14Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1151-1DA14Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1161-1DA14Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1121-1CA24Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1131-1CA24Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1141-1DA24Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1151-1DA24Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1161-1DA24Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 1-pole
3NP1133-1CA14Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1DA14Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1DA14Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1DA14Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1123-1CA24Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1CA24Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1DA24Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1DA24Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1DA24Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1CA13Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1DA13Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1DA13Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1DA13Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1CA23Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1CA23Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1DA23Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1DA23Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1DA23Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: Floor mounting | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BC10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1BC10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1BC10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1BC10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1113-1BC20Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar (8US/Rittal), outlet bottom | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1BC20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BC20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1BC20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1BC20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1BC20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1134-1BC10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1BC10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1BC10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1BC10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1124-1BC20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1134-1BC20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1144-1BC20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1154-1BC20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1164-1BC20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 4-pole
3NP1133-1BC11Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1BC11Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1BC11Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1BC11Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BC21Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1BC21Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1BC21Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1BC21Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BC12Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1BC12Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1BC12Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1BC12Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1BC22Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BC22Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1BC22Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1BC22Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1BC22Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BC14Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1BC14Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1BC14Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1BC14Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1123-1BC24Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1BC24Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1143-1BC24Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1153-1BC24Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1163-1BC24Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM15 | Poles: 3-pole
3NP1133-1BC13Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1BC13Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1BC13Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1BC13Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1BC23Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BC23Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1BC23Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1BC23Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1BC23Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JC10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1JC10Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1JC10Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1JC10Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1JC20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JC20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1143-1JC20Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1153-1JC20Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1163-1JC20Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JC11Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1JC11Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1JC11Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1JC11Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JC21Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1143-1JC21Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1153-1JC21Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1163-1JC21Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JC12Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1JC12Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1JC12Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1JC12Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1JC22Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JC22Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1143-1JC22Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1153-1JC22Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1163-1JC22Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JC13Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1JC13Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1JC13Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1JC13Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Flat | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1JC23Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JC23Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1143-1JC23Fuse size: NH1 | Rated current Iu: 250 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1153-1JC23Fuse size: NH2 | Rated current Iu: 400 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1163-1JC23Fuse size: NH3 | Rated current Iu: 630 A | Terminals: Box | Mounting: 60 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BB10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1BB20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BB20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1BB11Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BB21Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1BB12Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1BB22Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BB22Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1BB13Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1BB23Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1BB23Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Siemens 8US | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JB10Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1123-1JB20Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JB20Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: Without | Poles: 3-pole
3NP1133-1JB11Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JB21Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: MFM | Poles: 3-pole
3NP1133-1JB12Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1123-1JB22Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JB22Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM10 | Poles: 3-pole
3NP1133-1JB13Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Flat | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1123-1JB23Fuse size: NH000 | Rated current Iu: 125 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1133-1JB23Fuse size: NH00 | Rated current Iu: 160 A | Terminals: Box | Mounting: 40 mm busbar, Rittal | Fuse monitoring: EFM20 | Poles: 3-pole
3NP1113-2BC20Fuse size: NH000 narrow | Rated current Iu: 125 A | Terminals: Box | Mounting: 60 mm busbar (8US/Rittal), outlet top | Fuse monitoring: Without | Poles: 3-pole

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
