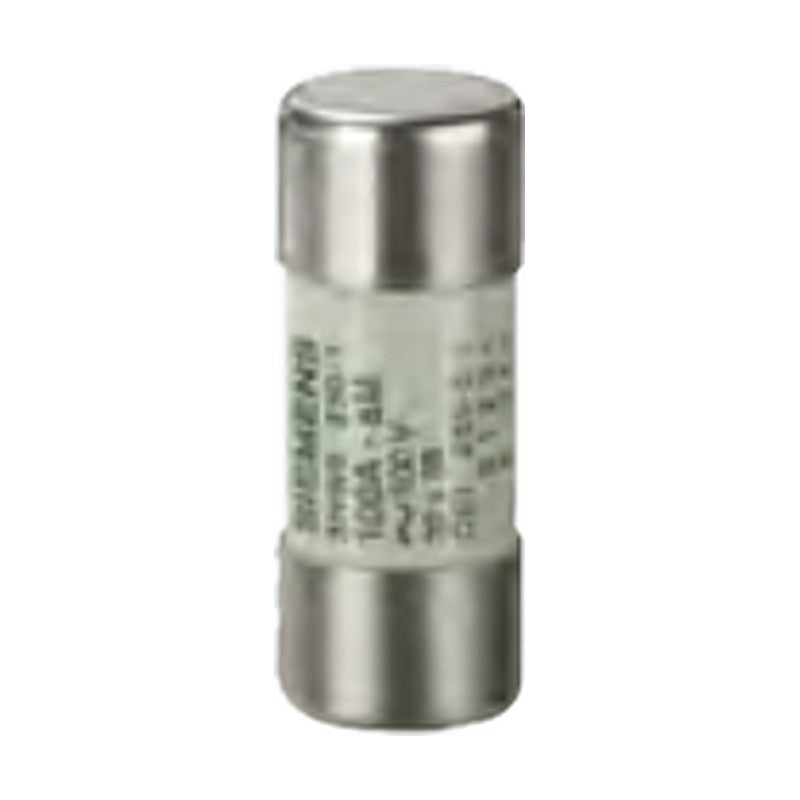

Siemens SENTRON 3NW6/3NW8 cylindrical fuse links gG and aM

Siemens SENTRON 3NW6/3NW8 cylindrical fuse links gG and aM

SENTRON cylindrical fuse links 3NW6 (operational class gG) and 3NW8 (operational class aM) in sizes 8 x 32 to 22 x 58 mm.

Key features

  • Operational class gG (3NW6) and aM (3NW8)
  • Sizes 8 x 32, 10 x 38, 14 x 51 and 22 x 58 mm
  • Rated currents 0.5 A to 125 A
  • Rated voltages 400 V, 500 V and 690 V AC
  • For 3NW7 cylindrical fuse holders

Specifications

Brand Siemens SENTRON
System Cylindrical fuse links
Manufacturer Siemens
Product type Fuses & Fuse Holders
Catalog chapter Fuse Systems
Source Siemens Catalog LV 10 · 2026, p. 582-583
3NW6000-1 Class: gG | Size: 10 x 38 mm | Rated current: 0.5 A | Un AC: 500 V
3NW6011-1 Class: gG | Size: 10 x 38 mm | Rated current: 1 A | Un AC: 500 V
3NW6302-1 Class: gG | Size: 8 x 32 mm | Rated current: 2 A | Un AC: 400 V
3NW6002-1 Class: gG | Size: 10 x 38 mm | Rated current: 2 A | Un AC: 500 V
3NW6304-1 Class: gG | Size: 8 x 32 mm | Rated current: 4 A | Un AC: 400 V
3NW6004-1 Class: gG | Size: 10 x 38 mm | Rated current: 4 A | Un AC: 500 V
3NW6104-1 Class: gG | Size: 14 x 51 mm | Rated current: 4 A | Un AC: 690 V
3NW6301-1 Class: gG | Size: 8 x 32 mm | Rated current: 6 A | Un AC: 400 V
3NW6001-1 Class: gG | Size: 10 x 38 mm | Rated current: 6 A | Un AC: 500 V
3NW6101-1 Class: gG | Size: 14 x 51 mm | Rated current: 6 A | Un AC: 690 V
3NW6008-1 Class: gG | Size: 10 x 38 mm | Rated current: 8 A | Un AC: 500 V
3NW6108-1 Class: gG | Size: 14 x 51 mm | Rated current: 8 A | Un AC: 690 V
3NW6303-1 Class: gG | Size: 8 x 32 mm | Rated current: 10 A | Un AC: 400 V
3NW6003-1 Class: gG | Size: 10 x 38 mm | Rated current: 10 A | Un AC: 500 V
3NW6103-1 Class: gG | Size: 14 x 51 mm | Rated current: 10 A | Un AC: 690 V
3NW6006-1 Class: gG | Size: 10 x 38 mm | Rated current: 12 A | Un AC: 500 V
3NW6106-1 Class: gG | Size: 14 x 51 mm | Rated current: 12 A | Un AC: 690 V
3NW6305-1 Class: gG | Size: 8 x 32 mm | Rated current: 16 A | Un AC: 400 V
3NW6005-1 Class: gG | Size: 10 x 38 mm | Rated current: 16 A | Un AC: 500 V
3NW6105-1 Class: gG | Size: 14 x 51 mm | Rated current: 16 A | Un AC: 690 V
3NW6205-1 Class: gG | Size: 22 x 58 mm | Rated current: 16 A | Un AC: 690 V
3NW6307-1 Class: gG | Size: 8 x 32 mm | Rated current: 20 A | Un AC: 400 V
3NW6007-1 Class: gG | Size: 10 x 38 mm | Rated current: 20 A | Un AC: 500 V
3NW6107-1 Class: gG | Size: 14 x 51 mm | Rated current: 20 A | Un AC: 690 V
3NW6207-1 Class: gG | Size: 22 x 58 mm | Rated current: 20 A | Un AC: 690 V
3NW6010-1 Class: gG | Size: 10 x 38 mm | Rated current: 25 A | Un AC: 500 V
3NW6110-1 Class: gG | Size: 14 x 51 mm | Rated current: 25 A | Un AC: 690 V
3NW6210-1 Class: gG | Size: 22 x 58 mm | Rated current: 25 A | Un AC: 690 V
3NW6012-1 Class: gG | Size: 10 x 38 mm | Rated current: 32 A | Un AC: 400 V
3NW6112-1 Class: gG | Size: 14 x 51 mm | Rated current: 32 A | Un AC: 690 V
3NW6212-1 Class: gG | Size: 22 x 58 mm | Rated current: 32 A | Un AC: 690 V
3NW6117-1 Class: gG | Size: 14 x 51 mm | Rated current: 40 A | Un AC: 500 V
3NW6217-1 Class: gG | Size: 22 x 58 mm | Rated current: 40 A | Un AC: 690 V
3NW6120-1 Class: gG | Size: 14 x 51 mm | Rated current: 50 A | Un AC: 500 V
3NW6220-1 Class: gG | Size: 22 x 58 mm | Rated current: 50 A | Un AC: 690 V
3NW6222-1 Class: gG | Size: 22 x 58 mm | Rated current: 63 A | Un AC: 500 V
3NW6224-1 Class: gG | Size: 22 x 58 mm | Rated current: 80 A | Un AC: 500 V
3NW6230-1 Class: gG | Size: 22 x 58 mm | Rated current: 100 A | Un AC: 500 V
3NW8000-1 Class: aM | Size: 10 x 38 mm | Rated current: 0.5 A | Un AC: 500 V
3NW8011-1 Class: aM | Size: 10 x 38 mm | Rated current: 1 A | Un AC: 500 V
3NW8002-1 Class: aM | Size: 10 x 38 mm | Rated current: 2 A | Un AC: 500 V
3NW8102-1 Class: aM | Size: 14 x 51 mm | Rated current: 2 A | Un AC: 690 V
3NW8004-1 Class: aM | Size: 10 x 38 mm | Rated current: 4 A | Un AC: 500 V
3NW8104-1 Class: aM | Size: 14 x 51 mm | Rated current: 4 A | Un AC: 690 V
3NW8001-1 Class: aM | Size: 10 x 38 mm | Rated current: 6 A | Un AC: 500 V
3NW8101-1 Class: aM | Size: 14 x 51 mm | Rated current: 6 A | Un AC: 690 V
3NW8008-1 Class: aM | Size: 10 x 38 mm | Rated current: 8 A | Un AC: 500 V
3NW8108-1 Class: aM | Size: 14 x 51 mm | Rated current: 8 A | Un AC: 690 V
3NW8003-1 Class: aM | Size: 10 x 38 mm | Rated current: 10 A | Un AC: 500 V
3NW8103-1 Class: aM | Size: 14 x 51 mm | Rated current: 10 A | Un AC: 690 V
3NW8006-1 Class: aM | Size: 10 x 38 mm | Rated current: 12 A | Un AC: 500 V
3NW8106-1 Class: aM | Size: 14 x 51 mm | Rated current: 12 A | Un AC: 690 V
3NW8005-1 Class: aM | Size: 10 x 38 mm | Rated current: 16 A | Un AC: 500 V
3NW8105-1 Class: aM | Size: 14 x 51 mm | Rated current: 16 A | Un AC: 500 V
3NW8205-1 Class: aM | Size: 22 x 58 mm | Rated current: 16 A | Un AC: 690 V
3NW8007-1 Class: aM | Size: 10 x 38 mm | Rated current: 20 A | Un AC: 400 V
3NW8107-1 Class: aM | Size: 14 x 51 mm | Rated current: 20 A | Un AC: 500 V
3NW8207-1 Class: aM | Size: 22 x 58 mm | Rated current: 20 A | Un AC: 690 V
3NW8010-1 Class: aM | Size: 10 x 38 mm | Rated current: 25 A | Un AC: 400 V
3NW8110-1 Class: aM | Size: 14 x 51 mm | Rated current: 25 A | Un AC: 500 V
3NW8210-1 Class: aM | Size: 22 x 58 mm | Rated current: 25 A | Un AC: 690 V
3NW8012-1 Class: aM | Size: 10 x 38 mm | Rated current: 32 A | Un AC: 400 V
3NW8112-1 Class: aM | Size: 14 x 51 mm | Rated current: 32 A | Un AC: 500 V
3NW8212-1 Class: aM | Size: 22 x 58 mm | Rated current: 32 A | Un AC: 690 V
3NW8117-1 Class: aM | Size: 14 x 51 mm | Rated current: 40 A | Un AC: 500 V
3NW8217-1 Class: aM | Size: 22 x 58 mm | Rated current: 40 A | Un AC: 690 V
3NW8120-1 Class: aM | Size: 14 x 51 mm | Rated current: 50 A | Un AC: 400 V
3NW8220-1 Class: aM | Size: 22 x 58 mm | Rated current: 50 A | Un AC: 690 V
3NW8222-1 Class: aM | Size: 22 x 58 mm | Rated current: 63 A | Un AC: 500 V
3NW8224-1 Class: aM | Size: 22 x 58 mm | Rated current: 80 A | Un AC: 500 V
3NW8230-1 Class: aM | Size: 22 x 58 mm | Rated current: 100 A | Un AC: 500 V
Fuses & Fuse HoldersSiemens
71 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3NW6/3NW8 cylindrical fuse links gG and aM

Brand Siemens·Fuses & Fuse Holders

Available part numbers (71)

3NW6000-1, 3NW6011-1, 3NW6302-1, 3NW6002-1, 3NW6304-1, 3NW6004-1, 3NW6104-1, 3NW6301-1, 3NW6001-1, 3NW6101-1 + 61 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NW6000-1Class: gG | Size: 10 x 38 mm | Rated current: 0.5 A | Un AC: 500 V
3NW6011-1Class: gG | Size: 10 x 38 mm | Rated current: 1 A | Un AC: 500 V
3NW6302-1Class: gG | Size: 8 x 32 mm | Rated current: 2 A | Un AC: 400 V
3NW6002-1Class: gG | Size: 10 x 38 mm | Rated current: 2 A | Un AC: 500 V
3NW6304-1Class: gG | Size: 8 x 32 mm | Rated current: 4 A | Un AC: 400 V
3NW6004-1Class: gG | Size: 10 x 38 mm | Rated current: 4 A | Un AC: 500 V
3NW6104-1Class: gG | Size: 14 x 51 mm | Rated current: 4 A | Un AC: 690 V
3NW6301-1Class: gG | Size: 8 x 32 mm | Rated current: 6 A | Un AC: 400 V
3NW6001-1Class: gG | Size: 10 x 38 mm | Rated current: 6 A | Un AC: 500 V
3NW6101-1Class: gG | Size: 14 x 51 mm | Rated current: 6 A | Un AC: 690 V
3NW6008-1Class: gG | Size: 10 x 38 mm | Rated current: 8 A | Un AC: 500 V
3NW6108-1Class: gG | Size: 14 x 51 mm | Rated current: 8 A | Un AC: 690 V
3NW6303-1Class: gG | Size: 8 x 32 mm | Rated current: 10 A | Un AC: 400 V
3NW6003-1Class: gG | Size: 10 x 38 mm | Rated current: 10 A | Un AC: 500 V
3NW6103-1Class: gG | Size: 14 x 51 mm | Rated current: 10 A | Un AC: 690 V
3NW6006-1Class: gG | Size: 10 x 38 mm | Rated current: 12 A | Un AC: 500 V
3NW6106-1Class: gG | Size: 14 x 51 mm | Rated current: 12 A | Un AC: 690 V
3NW6305-1Class: gG | Size: 8 x 32 mm | Rated current: 16 A | Un AC: 400 V
3NW6005-1Class: gG | Size: 10 x 38 mm | Rated current: 16 A | Un AC: 500 V
3NW6105-1Class: gG | Size: 14 x 51 mm | Rated current: 16 A | Un AC: 690 V
3NW6205-1Class: gG | Size: 22 x 58 mm | Rated current: 16 A | Un AC: 690 V
3NW6307-1Class: gG | Size: 8 x 32 mm | Rated current: 20 A | Un AC: 400 V
3NW6007-1Class: gG | Size: 10 x 38 mm | Rated current: 20 A | Un AC: 500 V
3NW6107-1Class: gG | Size: 14 x 51 mm | Rated current: 20 A | Un AC: 690 V
3NW6207-1Class: gG | Size: 22 x 58 mm | Rated current: 20 A | Un AC: 690 V
3NW6010-1Class: gG | Size: 10 x 38 mm | Rated current: 25 A | Un AC: 500 V
3NW6110-1Class: gG | Size: 14 x 51 mm | Rated current: 25 A | Un AC: 690 V
3NW6210-1Class: gG | Size: 22 x 58 mm | Rated current: 25 A | Un AC: 690 V
3NW6012-1Class: gG | Size: 10 x 38 mm | Rated current: 32 A | Un AC: 400 V
3NW6112-1Class: gG | Size: 14 x 51 mm | Rated current: 32 A | Un AC: 690 V
3NW6212-1Class: gG | Size: 22 x 58 mm | Rated current: 32 A | Un AC: 690 V
3NW6117-1Class: gG | Size: 14 x 51 mm | Rated current: 40 A | Un AC: 500 V
3NW6217-1Class: gG | Size: 22 x 58 mm | Rated current: 40 A | Un AC: 690 V
3NW6120-1Class: gG | Size: 14 x 51 mm | Rated current: 50 A | Un AC: 500 V
3NW6220-1Class: gG | Size: 22 x 58 mm | Rated current: 50 A | Un AC: 690 V
3NW6222-1Class: gG | Size: 22 x 58 mm | Rated current: 63 A | Un AC: 500 V
3NW6224-1Class: gG | Size: 22 x 58 mm | Rated current: 80 A | Un AC: 500 V
3NW6230-1Class: gG | Size: 22 x 58 mm | Rated current: 100 A | Un AC: 500 V
3NW8000-1Class: aM | Size: 10 x 38 mm | Rated current: 0.5 A | Un AC: 500 V
3NW8011-1Class: aM | Size: 10 x 38 mm | Rated current: 1 A | Un AC: 500 V
3NW8002-1Class: aM | Size: 10 x 38 mm | Rated current: 2 A | Un AC: 500 V
3NW8102-1Class: aM | Size: 14 x 51 mm | Rated current: 2 A | Un AC: 690 V
3NW8004-1Class: aM | Size: 10 x 38 mm | Rated current: 4 A | Un AC: 500 V
3NW8104-1Class: aM | Size: 14 x 51 mm | Rated current: 4 A | Un AC: 690 V
3NW8001-1Class: aM | Size: 10 x 38 mm | Rated current: 6 A | Un AC: 500 V
3NW8101-1Class: aM | Size: 14 x 51 mm | Rated current: 6 A | Un AC: 690 V
3NW8008-1Class: aM | Size: 10 x 38 mm | Rated current: 8 A | Un AC: 500 V
3NW8108-1Class: aM | Size: 14 x 51 mm | Rated current: 8 A | Un AC: 690 V
3NW8003-1Class: aM | Size: 10 x 38 mm | Rated current: 10 A | Un AC: 500 V
3NW8103-1Class: aM | Size: 14 x 51 mm | Rated current: 10 A | Un AC: 690 V
3NW8006-1Class: aM | Size: 10 x 38 mm | Rated current: 12 A | Un AC: 500 V
3NW8106-1Class: aM | Size: 14 x 51 mm | Rated current: 12 A | Un AC: 690 V
3NW8005-1Class: aM | Size: 10 x 38 mm | Rated current: 16 A | Un AC: 500 V
3NW8105-1Class: aM | Size: 14 x 51 mm | Rated current: 16 A | Un AC: 500 V
3NW8205-1Class: aM | Size: 22 x 58 mm | Rated current: 16 A | Un AC: 690 V
3NW8007-1Class: aM | Size: 10 x 38 mm | Rated current: 20 A | Un AC: 400 V
3NW8107-1Class: aM | Size: 14 x 51 mm | Rated current: 20 A | Un AC: 500 V
3NW8207-1Class: aM | Size: 22 x 58 mm | Rated current: 20 A | Un AC: 690 V
3NW8010-1Class: aM | Size: 10 x 38 mm | Rated current: 25 A | Un AC: 400 V
3NW8110-1Class: aM | Size: 14 x 51 mm | Rated current: 25 A | Un AC: 500 V
3NW8210-1Class: aM | Size: 22 x 58 mm | Rated current: 25 A | Un AC: 690 V
3NW8012-1Class: aM | Size: 10 x 38 mm | Rated current: 32 A | Un AC: 400 V
3NW8112-1Class: aM | Size: 14 x 51 mm | Rated current: 32 A | Un AC: 500 V
3NW8212-1Class: aM | Size: 22 x 58 mm | Rated current: 32 A | Un AC: 690 V
3NW8117-1Class: aM | Size: 14 x 51 mm | Rated current: 40 A | Un AC: 500 V
3NW8217-1Class: aM | Size: 22 x 58 mm | Rated current: 40 A | Un AC: 690 V
3NW8120-1Class: aM | Size: 14 x 51 mm | Rated current: 50 A | Un AC: 400 V
3NW8220-1Class: aM | Size: 22 x 58 mm | Rated current: 50 A | Un AC: 690 V
3NW8222-1Class: aM | Size: 22 x 58 mm | Rated current: 63 A | Un AC: 500 V
3NW8224-1Class: aM | Size: 22 x 58 mm | Rated current: 80 A | Un AC: 500 V
3NW8230-1Class: aM | Size: 22 x 58 mm | Rated current: 100 A | Un AC: 500 V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
