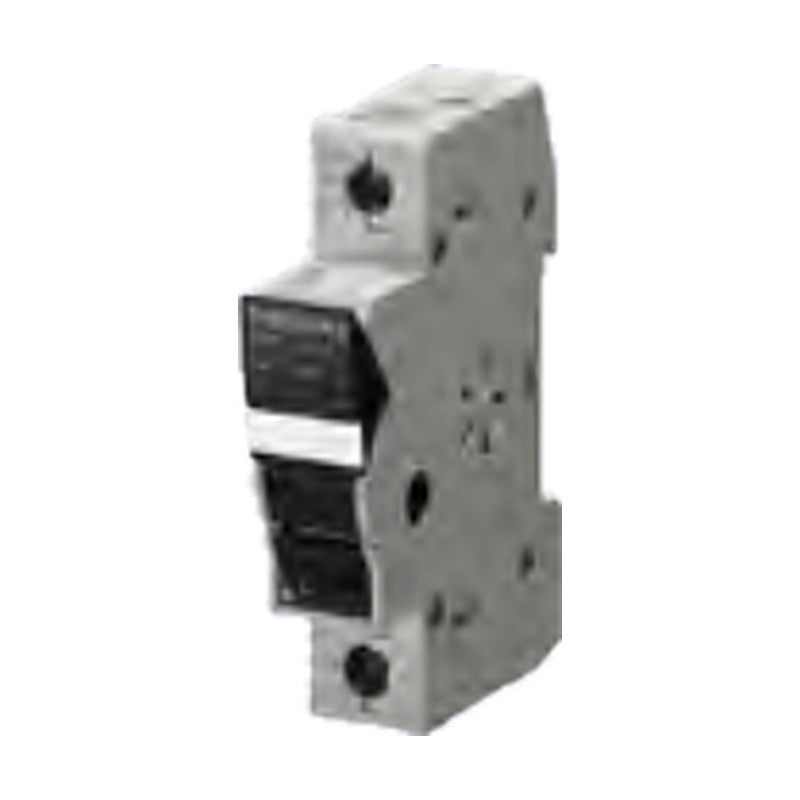

Siemens SENTRON 3NW7 cylindrical fuse holders for PV fuses

Siemens SENTRON 3NW7 cylindrical fuse holders for PV fuses

SENTRON 3NW7 cylindrical fuse holders for photovoltaic fuses 10 x 38 mm (1000 V DC) and 10 x 85 mm (1500 V DC).

Key features

  • For PV fuse links 10 x 38 mm up to 1000 V DC
  • For PV fuse links 10 x 85 mm up to 1500 V DC
  • 1P and 2P versions
  • Versions with signal detector

Specifications

Brand Siemens SENTRON
Series 3NW7
Application Photovoltaic
Mounting DIN rail
Manufacturer Siemens
Source Siemens Catalog LV 10 · 2026, p. 552
3NW7013-4 Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 1P | Signal detector: Without
3NW7023-4 Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 2P | Signal detector: Without
3NW7014-4 Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 1P | Signal detector: With
3NW7024-4 Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 2P | Signal detector: With
3NW7613-4 Fuse size: 10 x 85 mm | Rated current: 32 A | Un: 1500 V DC | Poles: 1P | Signal detector: Without
Fuses & Fuse HoldersSiemens
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3NW7 cylindrical fuse holders for PV fuses

Brand Siemens·Fuses & Fuse Holders

Available part numbers (5)

3NW7013-4, 3NW7023-4, 3NW7014-4, 3NW7024-4, 3NW7613-4

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NW7013-4Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 1P | Signal detector: Without
3NW7023-4Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 2P | Signal detector: Without
3NW7014-4Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 1P | Signal detector: With
3NW7024-4Fuse size: 10 x 38 mm | Rated current: 30 A | Un: 1000 V DC | Poles: 2P | Signal detector: With
3NW7613-4Fuse size: 10 x 85 mm | Rated current: 32 A | Un: 1500 V DC | Poles: 1P | Signal detector: Without
