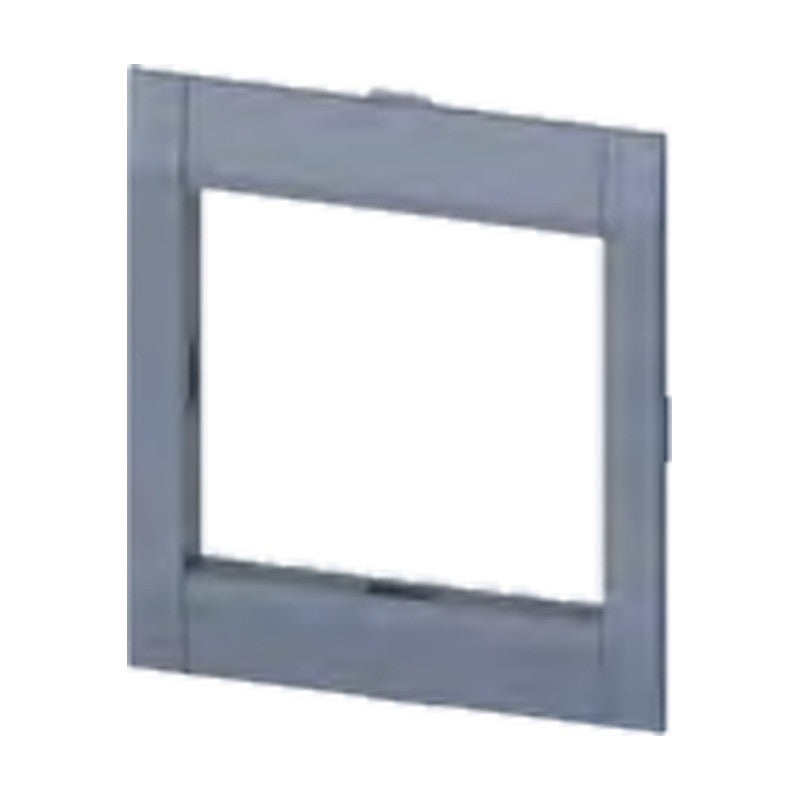

Siemens SENTRON 3VA cover frames, DIN-rail adapters and mounting kits

Siemens SENTRON 3VA cover frames, DIN-rail adapters and mounting kits

Cover frames for door cut-outs, DIN-rail adapters and mounting screw kits for SENTRON 3VA1/3VA2 MCCBs.

Key features

  • Cover frames for door cut-outs for breakers, motor operators, RCDs, rotary operators and door feedthroughs
  • Labeling plates for cover frames
  • DIN-rail adapters for 3VA1 breakers, also with RCD310/RCD510
  • Mounting screw kits for fixed-mounted, plug-in and withdrawable breakers

Specifications

Brand Siemens
Product type Molded case circuit breaker accessory
Catalogue chapter LV 10 chapter 2, Molded Case Circuit Breakers
Applicable frames 3VA10-15, 3VA20-26
Ordering Article numbers as printed in LV 10
Product line SENTRON 3VA molded case circuit breakers
Source Siemens Catalog LV 10 · 2026, p. 246-247
3VA9163-0SB10 Item: Cover frame for MCCB / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA20-22
3VA9383-0SB10 Item: Cover frame for MCCB / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB10 Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA15, 3VA25-26
3VA9053-0SB10 Item: Cover frame for MCCB / RCD / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA10-11
3VA9253-0SB10 Item: Cover frame for MCCB / RCD / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA12, 3VA20-22
3VA9053-0SB20 Item: Cover frame for MCCB / motor operator | Poles: 3P | Door cut-out with trip unit: Yes | Use: MO320 motor operator | Frame: 3VA10-11
3VA9253-0SB20 Item: Cover frame for MCCB / feedthrough | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA12, 3VA20-22
3VA9163-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA20-22
3VA9363-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA15, 3VA25-26
3VA9054-0SB10 Item: Cover frame for MCCB / RCD | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA10-11
3VA9254-0SB10 Item: Cover frame for MCCB / RCD | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA12, 3VA20-22
3VA9164-0SB10 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA20-22
3VA9384-0SB10 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA13-14, 3VA23-24
3VA9504-0SB10 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA15, 3VA25-26
3VA9054-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA10-11
3VA9254-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA12
3VA9164-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA20-22
3VA9364-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA13-14, 3VA23-24
3VA9504-0SB20 Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA15, 3VA25-26
3VA9257-0SB30 Item: Cover frame, motor operator | Use: MO320 motor operator | Frame: 3VA12, 3VA20-22
3VA9377-0SB30 Item: Cover frame, motor operator | Use: MO320 motor operator | Frame: 3VA13-14, 3VA23-24
3VA9167-0SB30 Item: Cover frame, motor operator | Use: SEO520 stored energy operator | Frame: 3VA20-22
3VA9303-0SB40 Item: Cover frame, RCD320/520/820 | Poles: 3P | Frame: 3VA13-14, 3VA23-24
3VA9304-0SB40 Item: Cover frame, RCD320/520/820 | Poles: 4P | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB50 Item: Cover frame, front rotary operator | Frame: 3VA15, 3VA25-26
3VA9353-0SB20 Item: Cover frame, door feedthrough | Frame: 3VA13-14, 3VA23-24
3VA9181-0SH10 Item: DIN-rail adapter (3VA1) | Poles: 1P | Frame: 3VA10-11
3VA9182-0SH10 Item: DIN-rail adapter (3VA1) | Poles: 2P | Frame: 3VA10-11
3VA9187-0SH10 Item: DIN-rail adapter (3VA1) | Poles: 3P and 4P | Frame: 3VA10-11
3VA9187-0SH20 Item: DIN-rail adapter (3VA1) | Poles: 3P and 4P with RCD310/RCD510 | Frame: 3VA10-11
3VA9111-0SS10 Item: Mounting screw kits | Poles: 1P | Use: Fixed-mounted breakers | Frame: 3VA10-11
3VA9116-0SS10 Item: Mounting screw kits | Poles: 2P/3P (not 125/160 A 55/70 kA) | Use: Fixed-mounted breakers | Frame: 3VA10-12
3VA9114-0SS10 Item: Mounting screw kits | Poles: 3P (125/160 A 55/70 kA) and 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA10-12
3VA9126-0SS10 Item: Mounting screw kits | Poles: 3P | Use: Fixed-mounted breakers | Frame: 3VA20-22
3VA9124-0SS10 Item: Mounting screw kits | Poles: 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA20-22
3VA9328-0SS10 Item: Mounting screw kits | Poles: 3P and 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA13-14, 3VA23-24
3VA9517-0SS10 Item: Mounting screw kits | Poles: 3P and 4P | Use: Fixed-mounted breakers | Frame: 3VA15, 3VA25-26
3VA9603-0SS10 Item: Mounting screw kits | Use: For plug-in units | Frame: 3VA15, 3VA25-26
AccessoriesSiemens
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3VA cover frames, DIN-rail adapters and mounting kits

Brand Siemens·Accessories

Available part numbers (39)

3VA9163-0SB10, 3VA9383-0SB10, 3VA9503-0SB10, 3VA9053-0SB10, 3VA9253-0SB10, 3VA9053-0SB20, 3VA9253-0SB20, 3VA9163-0SB20, 3VA9363-0SB20, 3VA9503-0SB20 + 29 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3VA9163-0SB10Item: Cover frame for MCCB / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA20-22
3VA9383-0SB10Item: Cover frame for MCCB / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB10Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA15, 3VA25-26
3VA9053-0SB10Item: Cover frame for MCCB / RCD / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA10-11
3VA9253-0SB10Item: Cover frame for MCCB / RCD / rotary op. | Poles: 3P | Door cut-out with trip unit: No | Frame: 3VA12, 3VA20-22
3VA9053-0SB20Item: Cover frame for MCCB / motor operator | Poles: 3P | Door cut-out with trip unit: Yes | Use: MO320 motor operator | Frame: 3VA10-11
3VA9253-0SB20Item: Cover frame for MCCB / feedthrough | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA12, 3VA20-22
3VA9163-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA20-22
3VA9363-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 3P | Door cut-out with trip unit: Yes | Frame: 3VA15, 3VA25-26
3VA9054-0SB10Item: Cover frame for MCCB / RCD | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA10-11
3VA9254-0SB10Item: Cover frame for MCCB / RCD | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA12, 3VA20-22
3VA9164-0SB10Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA20-22
3VA9384-0SB10Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA13-14, 3VA23-24
3VA9504-0SB10Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: No | Frame: 3VA15, 3VA25-26
3VA9054-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA10-11
3VA9254-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA12
3VA9164-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA20-22
3VA9364-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA13-14, 3VA23-24
3VA9504-0SB20Item: Cover frame, door cut-out for MCCB | Poles: 4P | Door cut-out with trip unit: Yes | Frame: 3VA15, 3VA25-26
3VA9257-0SB30Item: Cover frame, motor operator | Use: MO320 motor operator | Frame: 3VA12, 3VA20-22
3VA9377-0SB30Item: Cover frame, motor operator | Use: MO320 motor operator | Frame: 3VA13-14, 3VA23-24
3VA9167-0SB30Item: Cover frame, motor operator | Use: SEO520 stored energy operator | Frame: 3VA20-22
3VA9303-0SB40Item: Cover frame, RCD320/520/820 | Poles: 3P | Frame: 3VA13-14, 3VA23-24
3VA9304-0SB40Item: Cover frame, RCD320/520/820 | Poles: 4P | Frame: 3VA13-14, 3VA23-24
3VA9503-0SB50Item: Cover frame, front rotary operator | Frame: 3VA15, 3VA25-26
3VA9353-0SB20Item: Cover frame, door feedthrough | Frame: 3VA13-14, 3VA23-24
3VA9181-0SH10Item: DIN-rail adapter (3VA1) | Poles: 1P | Frame: 3VA10-11
3VA9182-0SH10Item: DIN-rail adapter (3VA1) | Poles: 2P | Frame: 3VA10-11
3VA9187-0SH10Item: DIN-rail adapter (3VA1) | Poles: 3P and 4P | Frame: 3VA10-11
3VA9187-0SH20Item: DIN-rail adapter (3VA1) | Poles: 3P and 4P with RCD310/RCD510 | Frame: 3VA10-11
3VA9111-0SS10Item: Mounting screw kits | Poles: 1P | Use: Fixed-mounted breakers | Frame: 3VA10-11
3VA9116-0SS10Item: Mounting screw kits | Poles: 2P/3P (not 125/160 A 55/70 kA) | Use: Fixed-mounted breakers | Frame: 3VA10-12
3VA9114-0SS10Item: Mounting screw kits | Poles: 3P (125/160 A 55/70 kA) and 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA10-12
3VA9126-0SS10Item: Mounting screw kits | Poles: 3P | Use: Fixed-mounted breakers | Frame: 3VA20-22
3VA9124-0SS10Item: Mounting screw kits | Poles: 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA20-22
3VA9328-0SS10Item: Mounting screw kits | Poles: 3P and 4P | Use: Fixed, plug-in and withdrawable | Frame: 3VA13-14, 3VA23-24
3VA9517-0SS10Item: Mounting screw kits | Poles: 3P and 4P | Use: Fixed-mounted breakers | Frame: 3VA15, 3VA25-26
3VA9603-0SS10Item: Mounting screw kits | Use: For plug-in units | Frame: 3VA15, 3VA25-26
