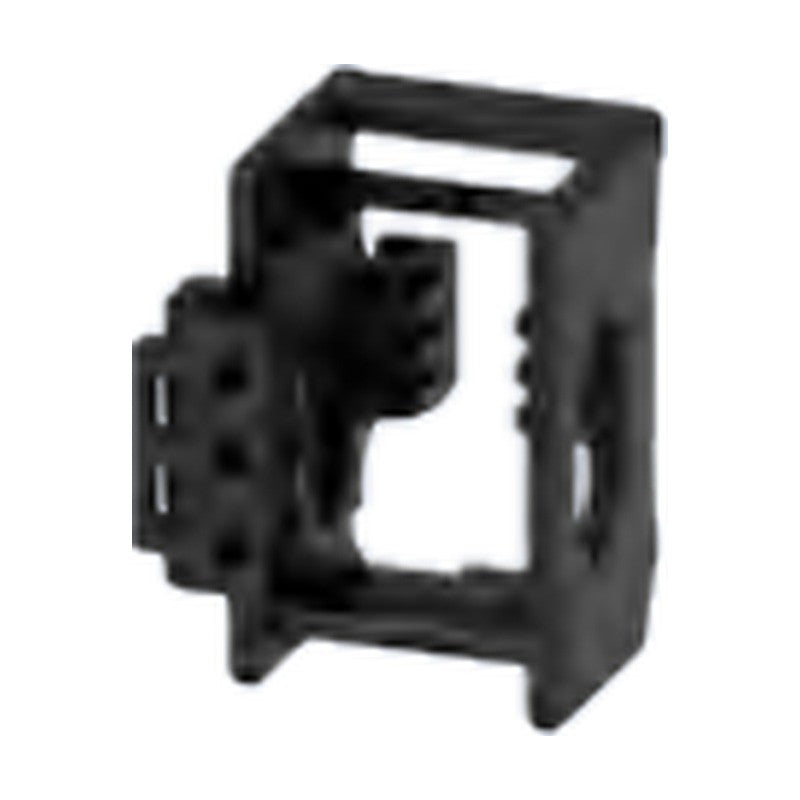

Siemens SENTRON 3VA locking and interlocking accessories

Siemens SENTRON 3VA locking and interlocking accessories

Locking provisions and mechanical interlocking systems for SENTRON 3VA1/3VA2 molded case circuit breakers.

Key features

  • RONIS cylinder locks (key 1, 3, 4) with adapter kits for the accessories compartment
  • Locking provisions for the handle operating mechanism in OFF or ON position
  • Front interlocking with sliding bar or handle interlocking module with Bowden cable
  • Rear interlock with rod for fixed-mounted and plug-in/withdrawable breakers
  • Bowden cables 0.6 m, 1.0 m and 1.5 m, mounting rails and plates

Specifications

Brand Siemens
Product type Molded case circuit breaker accessory
Catalogue chapter LV 10 chapter 2, Molded Case Circuit Breakers
Applicable frames 3VA11-15, 3VA20-26
Ordering Article numbers as printed in LV 10
Product line SENTRON 3VA molded case circuit breakers
Source Siemens Catalog LV 10 · 2026, p. 244-245
3VA9980-0VL10 Item: Locking / interlocking | Version: RONIS cylinder lock, key 1 | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: Unlimited | Frame: 3VA11-15, 3VA20-26
3VA9980-0VL30 Item: Locking / interlocking | Version: RONIS cylinder lock, key 3 | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: Unlimited | Frame: 3VA11-15, 3VA20-26
3VA9980-0VL40 Item: Locking / interlocking | Version: RONIS cylinder lock, key 4 | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: Unlimited | Frame: 3VA11-15, 3VA20-26
3VA9157-0LF10 Item: Locking | Version: RONIS lock adapter kit (acc. comp.) | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA11
3VA9257-0LF10 Item: Locking | Version: RONIS lock adapter kit (acc. comp.) | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA12
3VA9167-0LF10 Item: Locking | Version: RONIS lock adapter kit (acc. comp.) | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA20-22
3VA9367-0LF10 Item: Locking | Version: RONIS lock adapter kit (acc. comp.) | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA13-14, 3VA23-24
3VA9587-0LF10 Item: Locking | Version: RONIS lock adapter kit (acc. comp.) | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA15, 3VA25-26
3VA9088-0LB10 Item: Locking | Version: Locking provision for handle | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA11-12
3VA9388-0LB10 Item: Locking | Version: Locking provision for handle | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA13-14, 3VA20-24
3VA9588-0LB10 Item: Locking | Version: Locking provision for handle | Lock OFF/ON: Yes/Yes | Front/rear mounting: Yes/No | Interlocked breakers: – | Frame: 3VA15, 3VA25-26
3VA9158-0VF30 Item: Interlocking | Version: Sliding bar interlock | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA11
3VA9258-0VF30 Item: Interlocking | Version: Sliding bar interlock | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA12
3VA9168-0VF30 Item: Interlocking | Version: Sliding bar interlock | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA20-22
3VA9368-0VF30 Item: Interlocking | Version: Sliding bar interlock | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA13-14, 3VA23-24
3VA9157-0VF10 Item: Interlocking | Version: Handle interlock module, Bowden cable | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA11
3VA9257-0VF10 Item: Interlocking | Version: Handle interlock module, Bowden cable | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA12
3VA9167-0VF10 Item: Interlocking | Version: Handle interlock module, Bowden cable | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA20-22
3VA9367-0VF10 Item: Interlocking | Version: Handle interlock module, Bowden cable | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA13-14, 3VA23-24
3VA9587-0VF10 Item: Interlocking | Version: Handle interlock module, Bowden cable | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA15, 3VA25-26
3VA9980-0VC10 Item: Interlocking | Version: Bowden cable 0.6 m | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA11-15, 3VA20-26
3VA9980-0VC20 Item: Interlocking | Version: Bowden cable 1.0 m | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA11-15, 3VA20-26
3VA9980-0VC30 Item: Interlocking | Version: Bowden cable 1.5 m | Lock OFF/ON: No/No | Front/rear mounting: Yes/No | Interlocked breakers: 3 | Frame: 3VA11-15, 3VA20-26
3VA9088-0VM10 Item: Interlocking | Version: Rear interlock with rod, fixed-mounted | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA11-14, 3VA20-24
3VA9588-0VM10 Item: Interlocking | Version: Rear interlock with rod, fixed-mounted | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA15, 3VA25-26
3VA9088-0VM30 Item: Interlocking | Version: Rear interlock rod, plug-in/withdr. | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA11-14, 3VA20-24
3VA9088-0VK10 Item: Interlocking | Version: Rear interlock frame, mounting rails | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA11-14, 3VA20-24
3VA9158-0VK20 Item: Interlocking | Version: Mounting plate | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA11
3VA9258-0VK20 Item: Interlocking | Version: Mounting plate | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA12
3VA9268-0VK20 Item: Interlocking | Version: Mounting plate | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA20-22
3VA9468-0VK20 Item: Interlocking | Version: Mounting plate | Lock OFF/ON: No/No | Front/rear mounting: No/Yes | Interlocked breakers: 2 | Frame: 3VA13-14, 3VA23-24
AccessoriesSiemens
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3VA locking and interlocking accessories

Brand Siemens·Accessories

Available part numbers (31)

3VA9980-0VL10, 3VA9980-0VL30, 3VA9980-0VL40, 3VA9157-0LF10, 3VA9257-0LF10, 3VA9167-0LF10, 3VA9367-0LF10, 3VA9587-0LF10, 3VA9088-0LB10, 3VA9388-0LB10 + 21 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
